TK 5010

ATTENTION
We are currently in the process of re-naming our products. Click here for more information and to discover all the new updates.

Top Loading

Top Load Tower

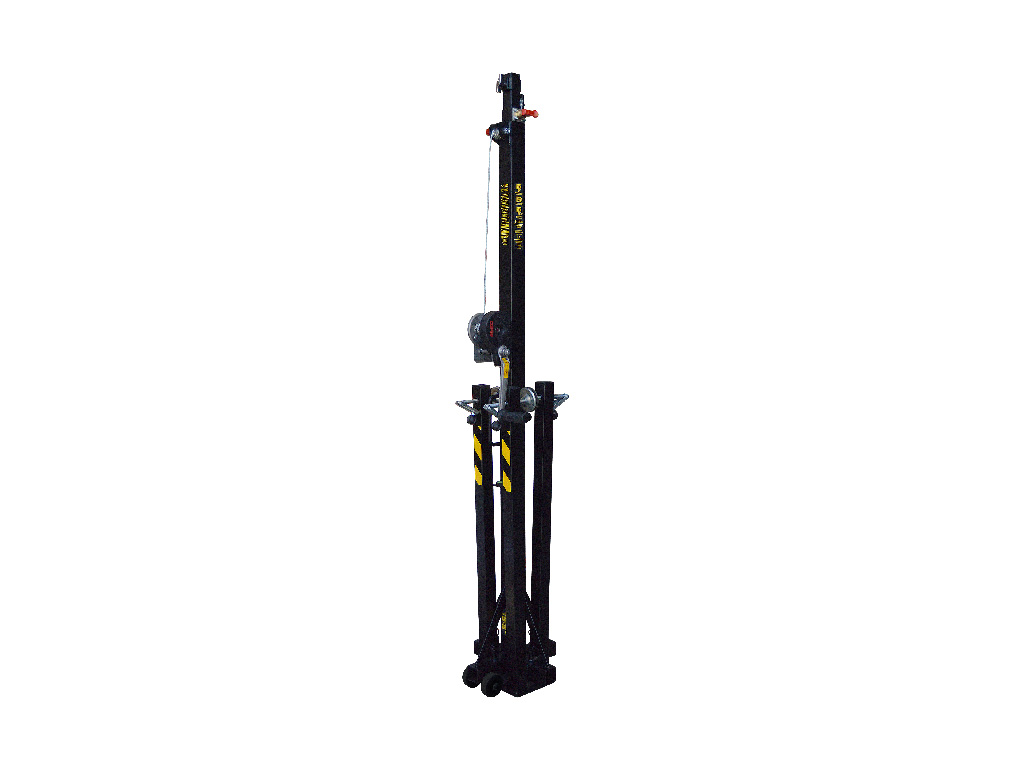

The lifting tower TK 5010 is designed to lift vertical loads up to 100 Kg and 5 m. Comprised of 3 extensible steel profiles lifted by a high strength steel cable. Safety mechanism based on steel pins that lock the tower into the desired height automatically. Legs equipped with non-slip rubber plates. The entire system is operated with a manual winch. T 102 is a very versatile lifting tower suitable for small events.

Maximum Load
100kg/220.46lb

Folded Height
2.1m/6.89ft

Maximum Height
5m/16.4ft

Weight
35kg./77.16lb.

Share on

Features

Great versatility.
Wire Drive.

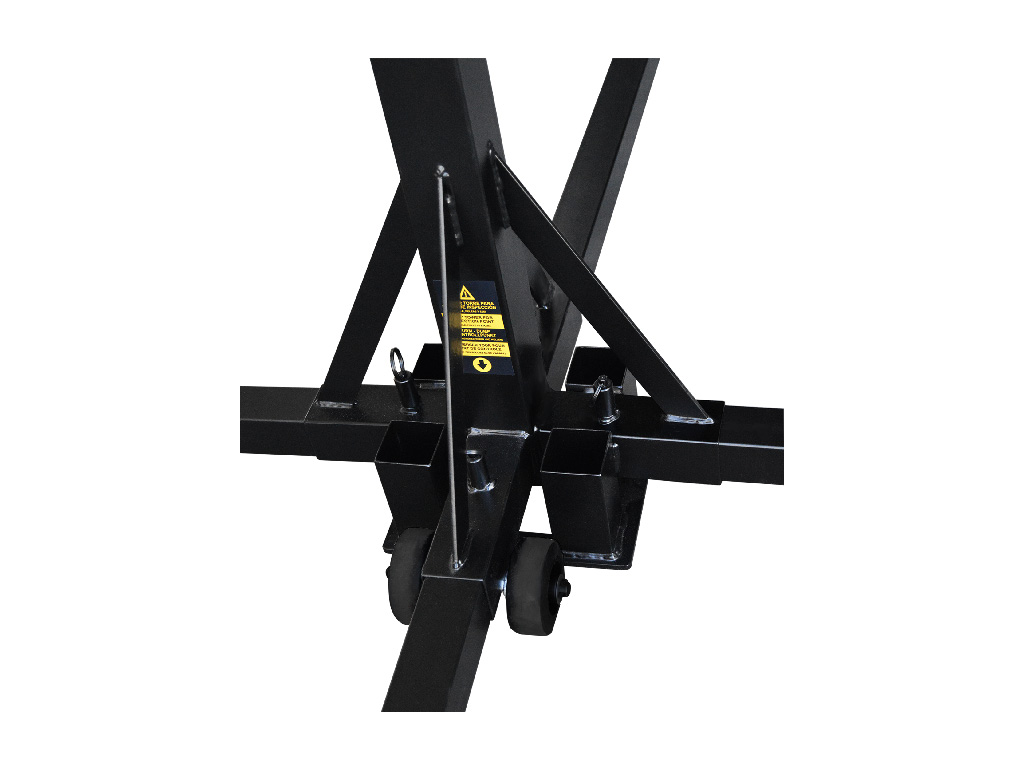

Levelable leg system.

Material	Steel
Folded Height	6,89 ft
Extended base dimensions	6,89 x 6,89 ft
Folded base dimensions	1,18 x 1,18 ft
Maximum height	16,4 ft
Minimun height	6,89 ft
No. of sections	3
Minimum Load	55,12 lb
Max load (mechanism mode)	220,46 lb

Winch	771,62 lb
Cable diameter	0,16 in
Noise Emission	70 dB
Compatible accessories	ATCMOS / ATCMOB / ATCLTS / ATC6FS / ATC29S / ATCBAS
Security systems	Self locking safety pins
Standards and Certifications	CE, DGUV, BGV C1, BGG 912
Weight	77,16 lb
Unfolded base diameter	6,59 ft

#1	Certificate	Certificados modelos T	Download
#2	Manual	TK Series_ Manual	Download
#3	Datasheet	TK 5010_Datasheet	Download
#4	Certificate	Certificado CE - TK5010	Download
