Top Loading

TK 5315

Top Load Tower

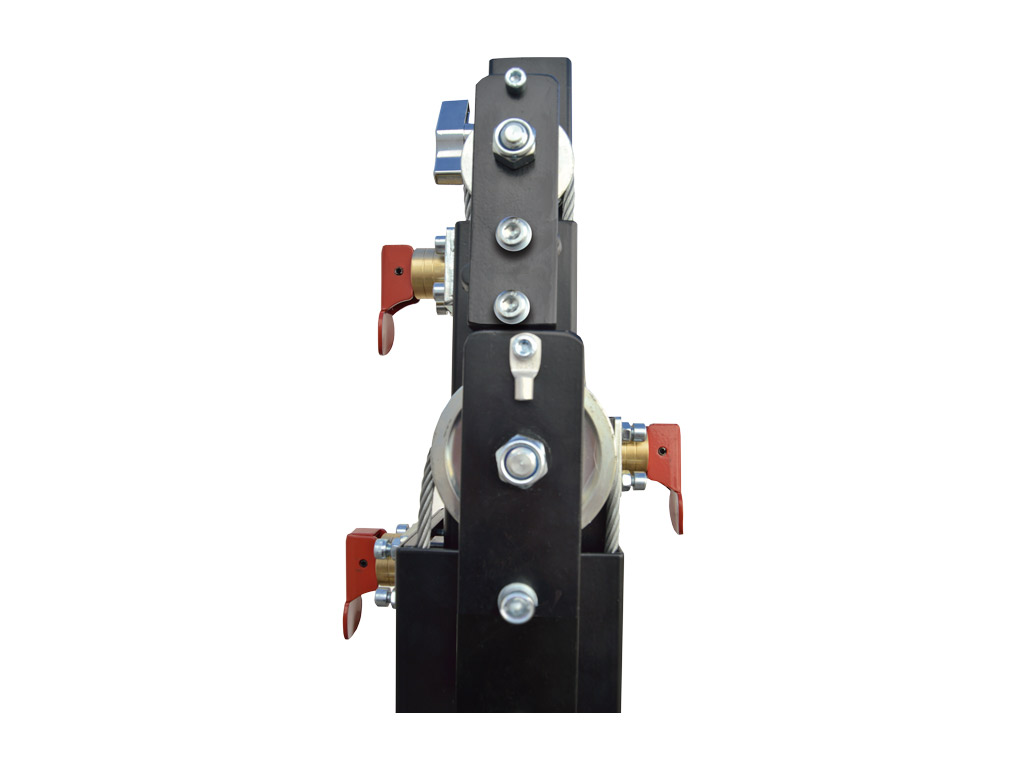

The lifting tower T 103 is designed to lift vertical loads up to 150 Kg and 5,3 m. Comprised of 3 extensible steel profiles lifted by a high strength steel cable. Safety mechanism based on steel pins that lock the tower into the desired height automatically. Legs equipped with non-slip rubber plates. The entire system is operated with a manual winch. T 103 offers the perfect balance between varsatility, load capacity, ease of transportation and features.

Maximum Load
150kg/330.7lb
Folded Height
1.8m/5.91ft
Maximum Height
5.3m/17.39ft
Weight
45kg./99.21lb.



Share on

Features

  • Great versatility.
  • Wire Drive.
  • Levelable leg system.
MaterialSteel
Folded Height5,91 ft
Extended base dimensions6,89 x 6,89 ft
Folded base dimensions1,18 x 1,18 ft
Maximum height17,39 ft
Minimun height5,91 ft
No. of sections4
Minimum Load55,12 lb
Max load (mechanism mode)330,7 lb
Winch1102,3 lb
Cable diameter0,16 in
Noise Emission72 dB
Compatible accessoriesATCMOS / ATCMOB / ATCLTS / ATC6FS / ATC29S / ATCBAS
Security systemsSelf locking safety pins
Standards and CertificationsCE, DGUV, BGV C1, BGG 912
Weight99,21 lb
Unfolded base diameter6,73 ft
