Top Loading

TK 6422LS

Top load tower. Number of profiles: 5.

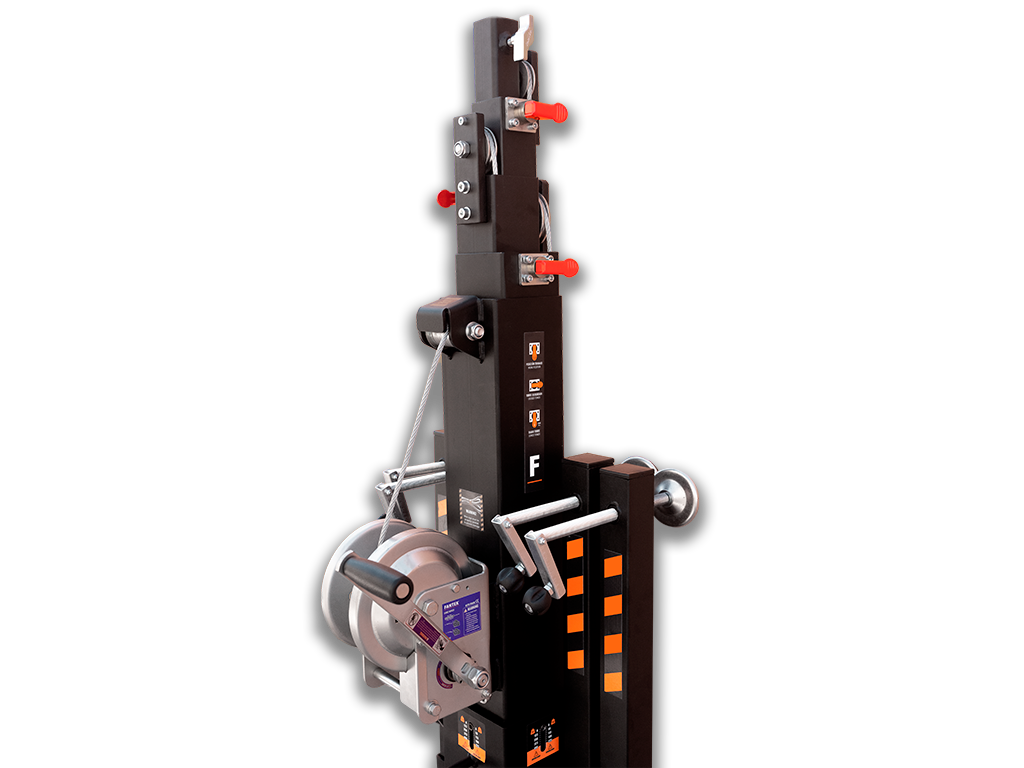

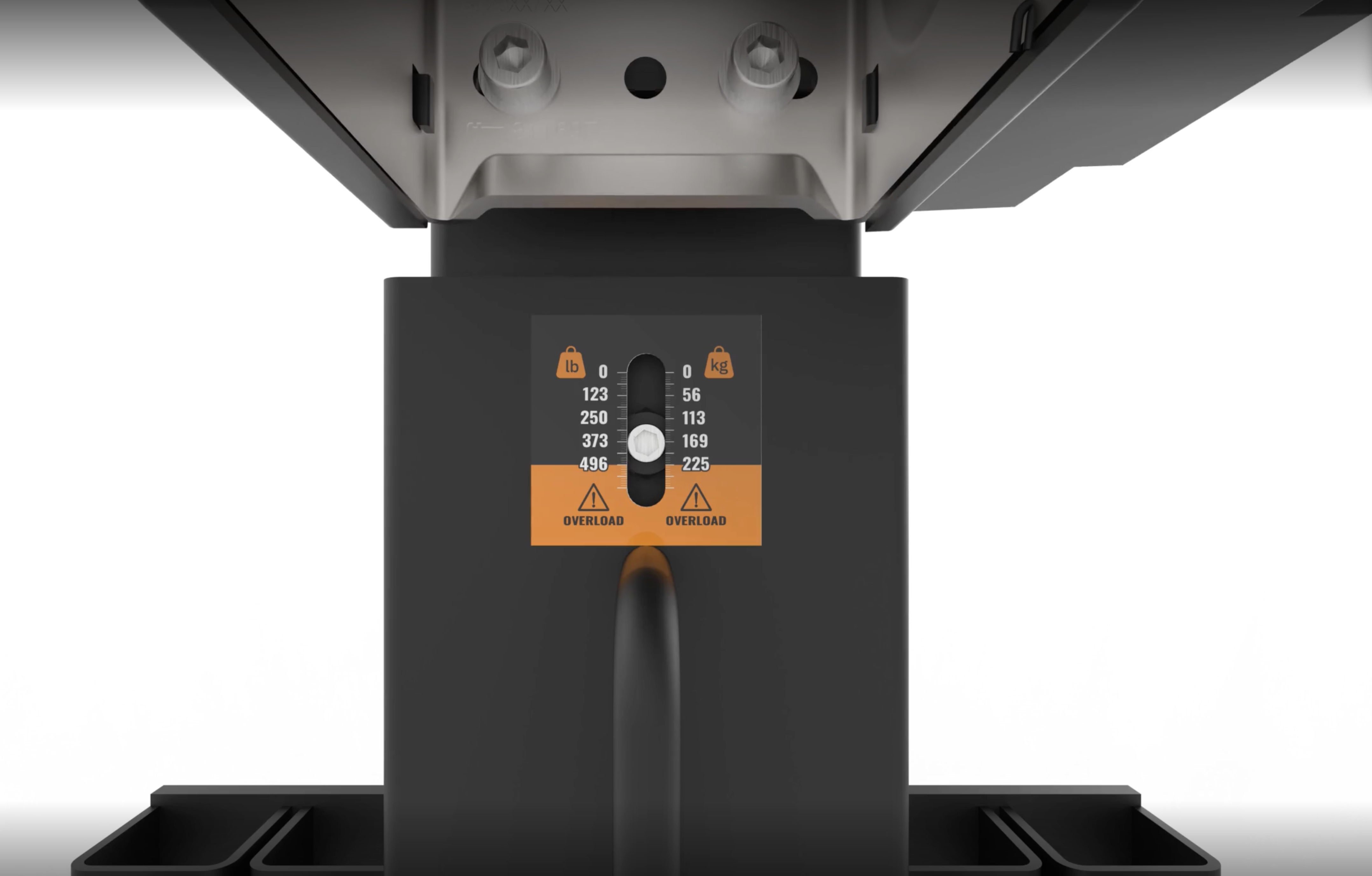

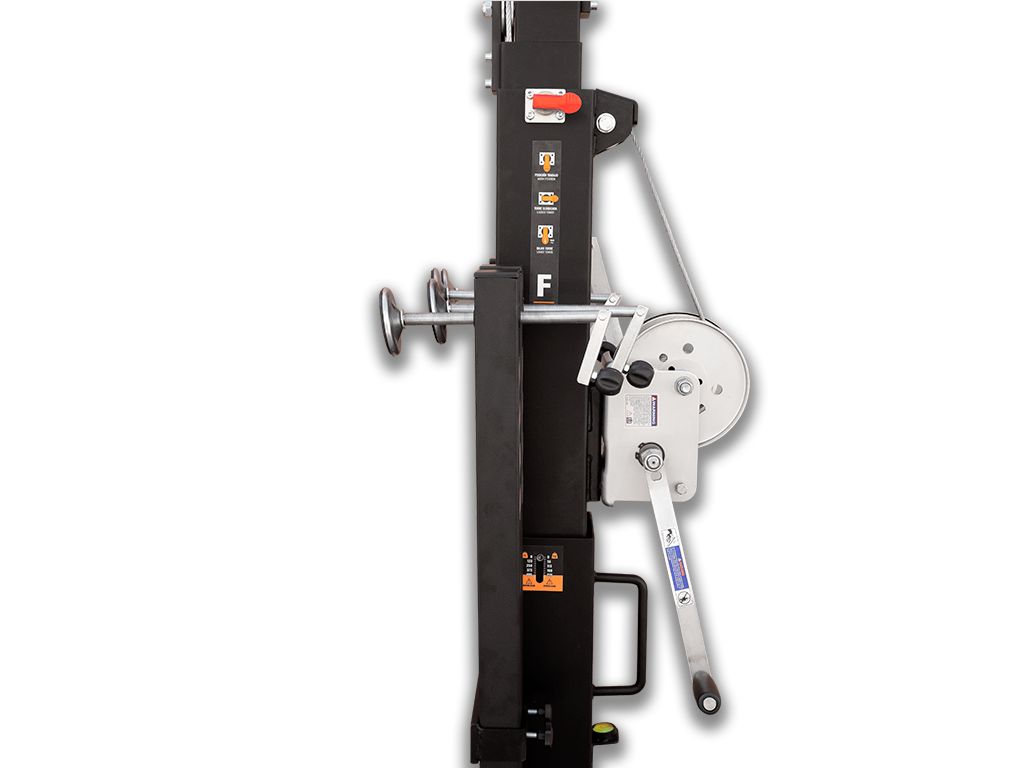

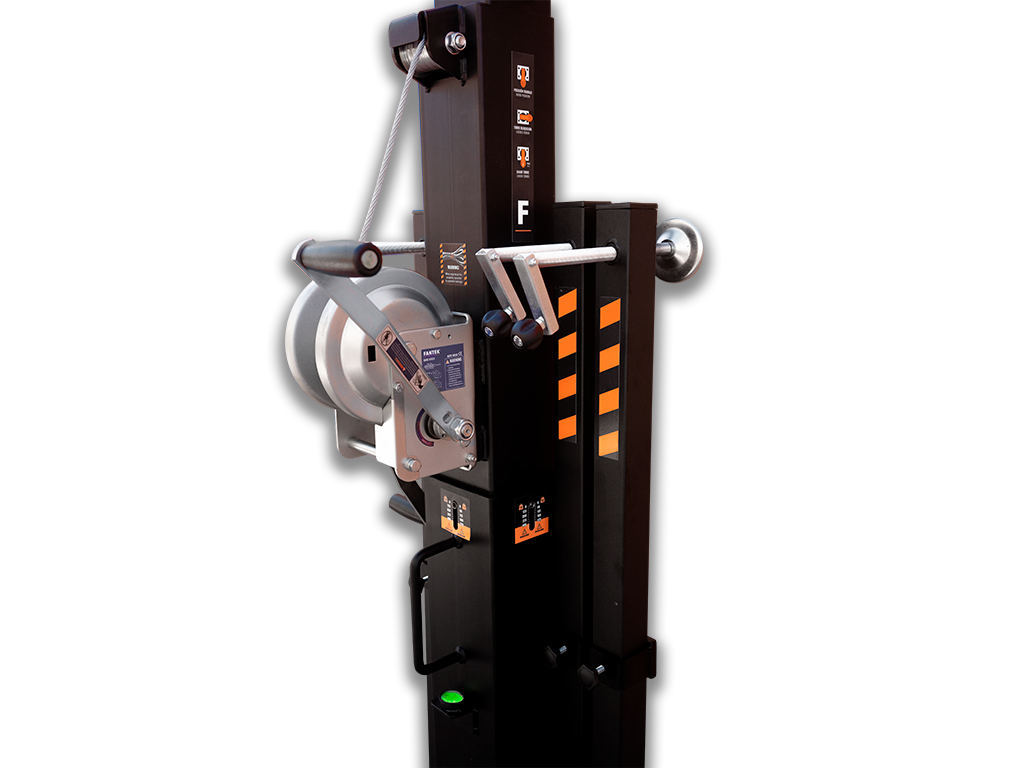

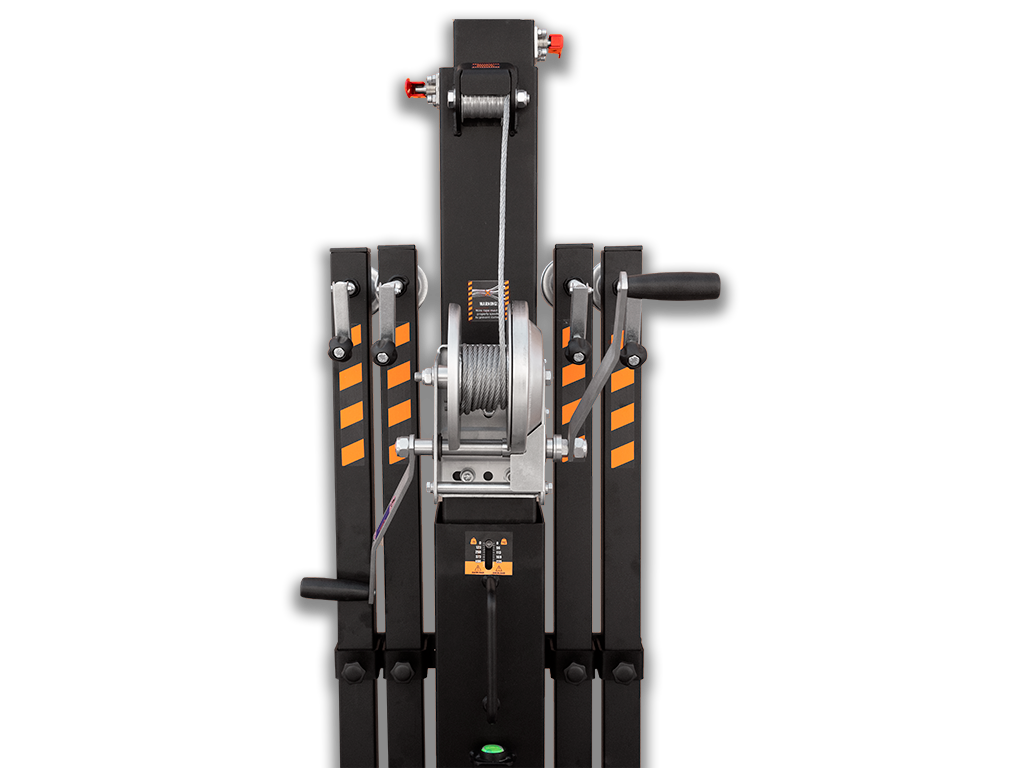

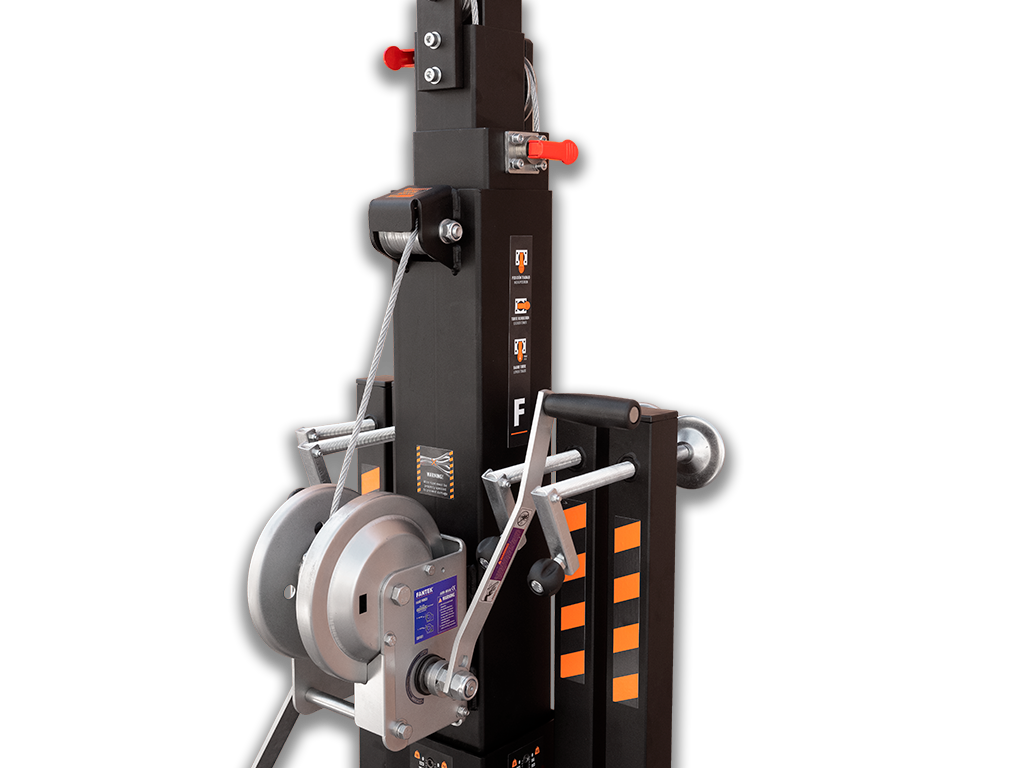

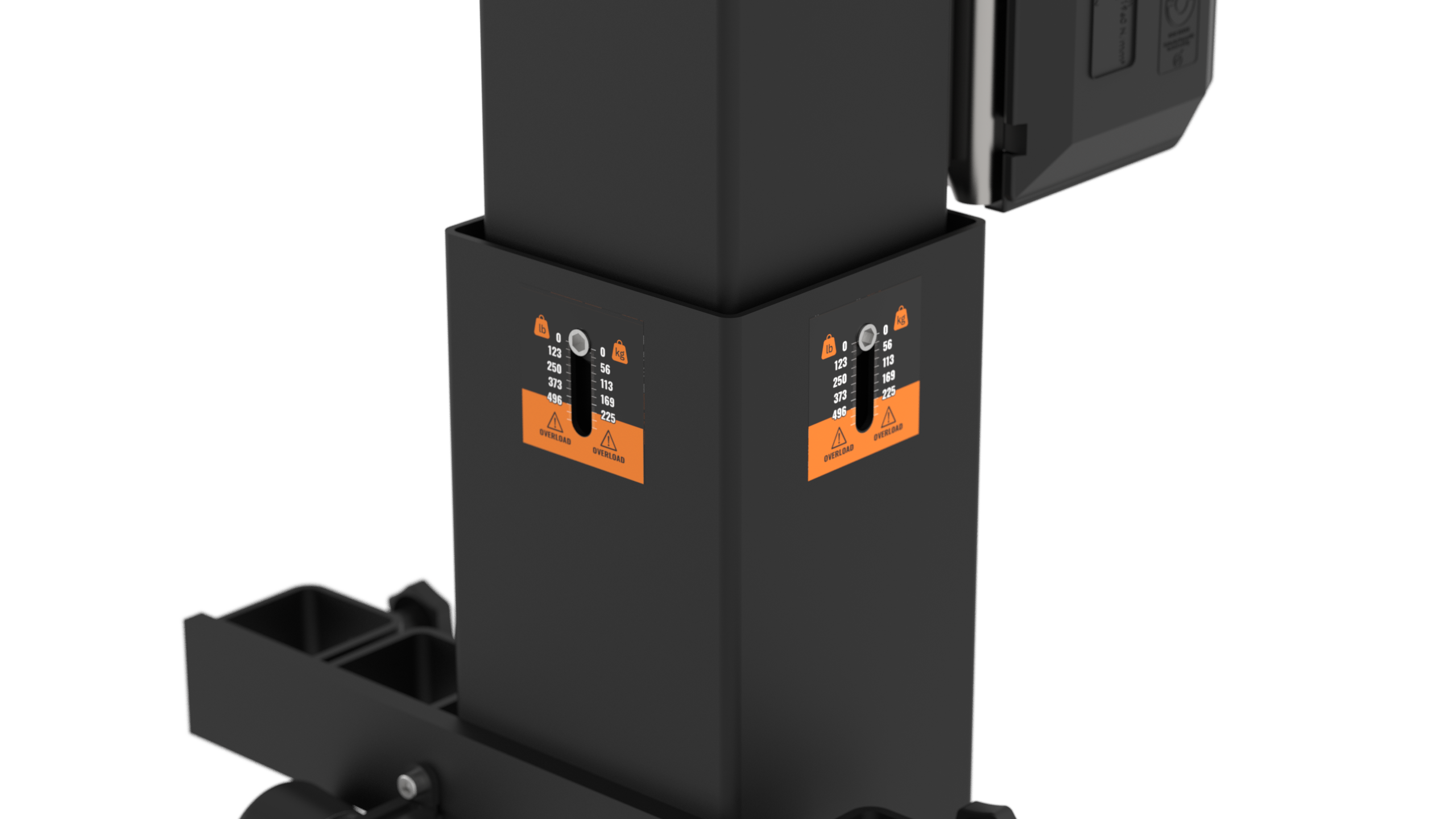

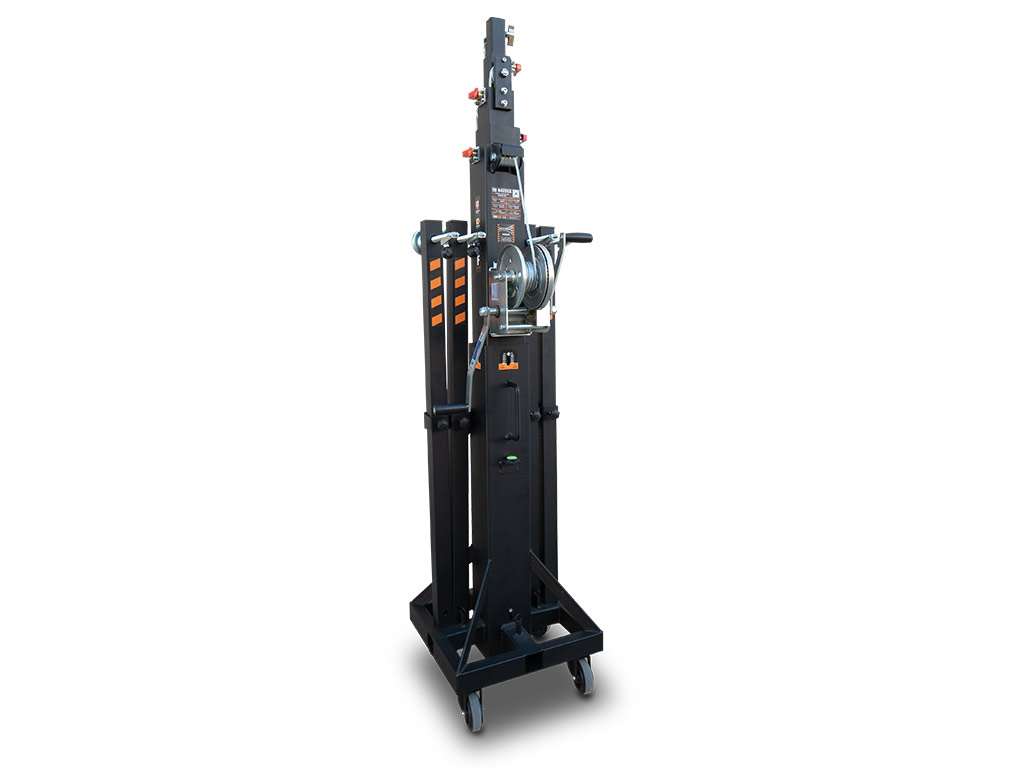

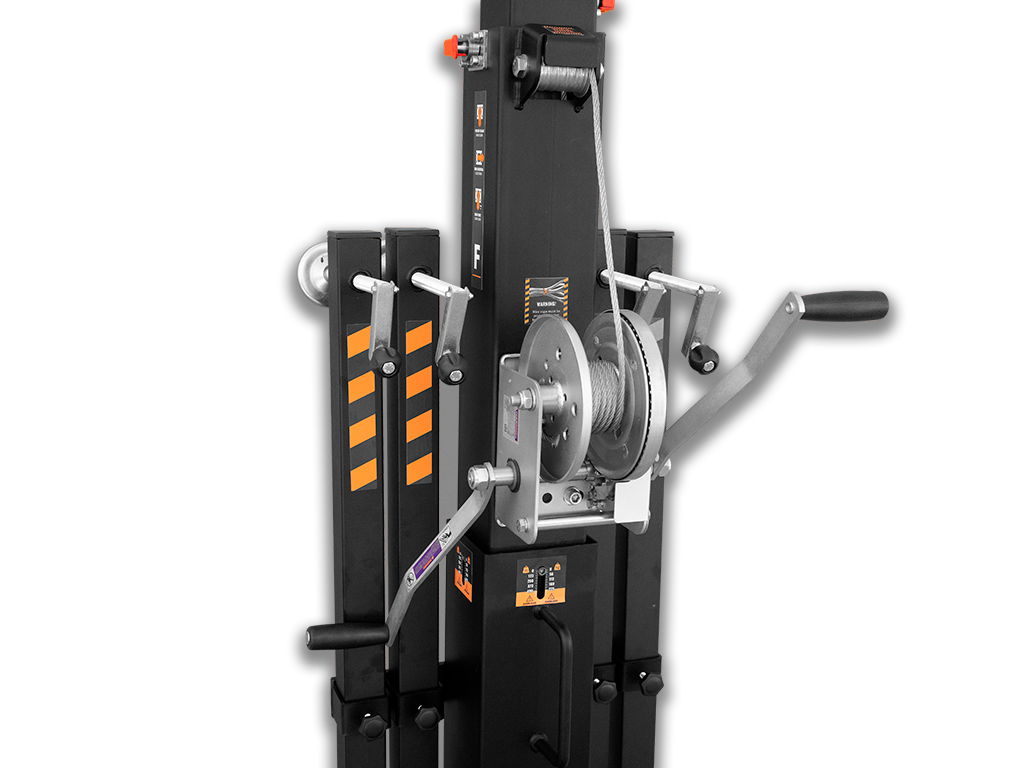

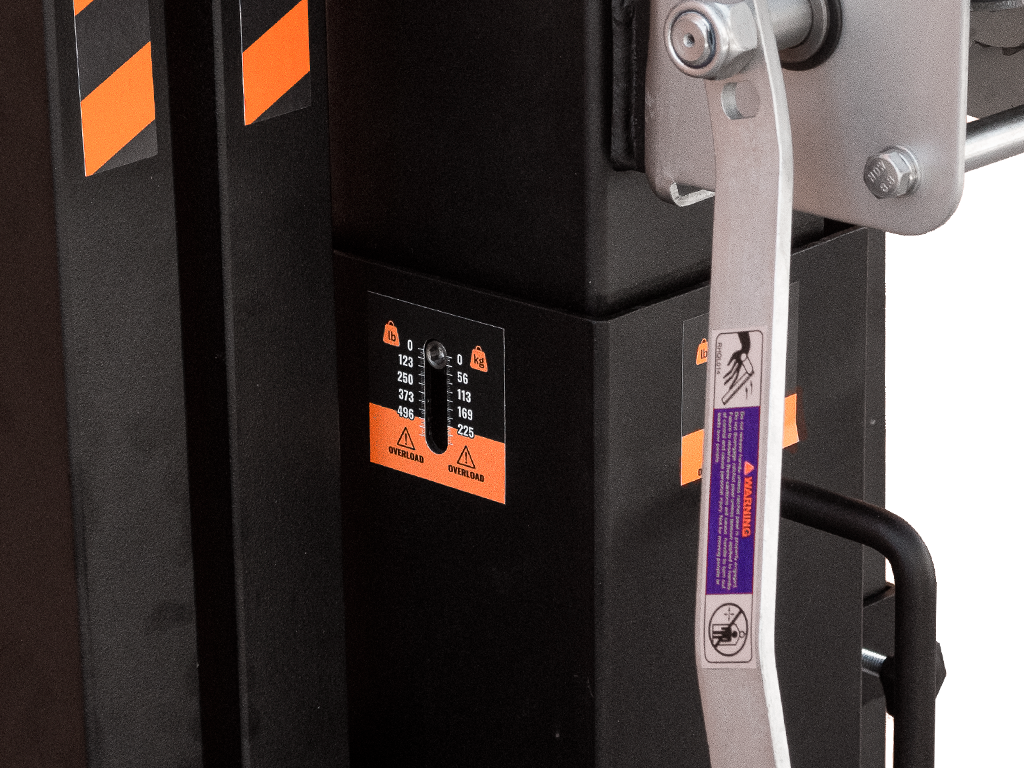

The telescopic lifter model TK 6422 LS is a lifter designed to lift vertical loads up to 225 Kg and 6.4 meters in height. It features the LoadSense system, which allows monitoring the lifter load in accordance with EN-17206 requirements. Composed of 5 extendable steel profiles raised by a high-strength steel cable. Fixation of the tower section at the working height with an automatic steel safety pin. Legs with non-slip rubber supports. The entire system is operated by a manual winch with a double crank handle.

Maximum Load
225kg/496.04lb
Folded Height
1.95m/6.4ft
Maximum Height
6.55m/21ft
Weight
103kg./227.08lb.



Share on

Features

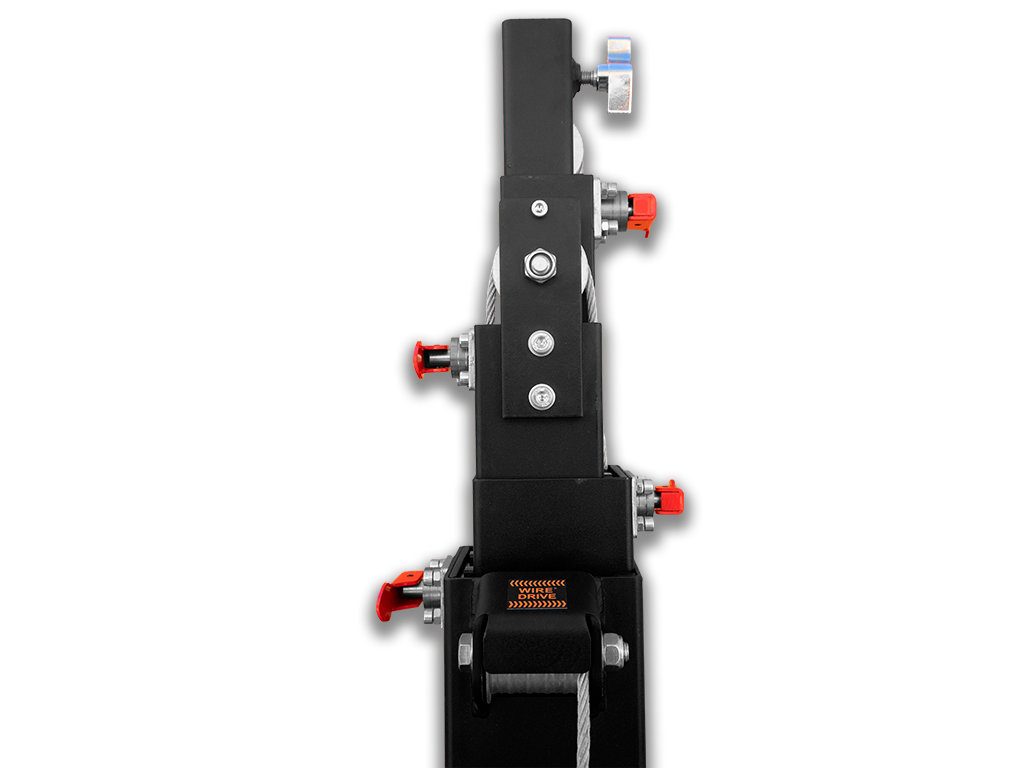

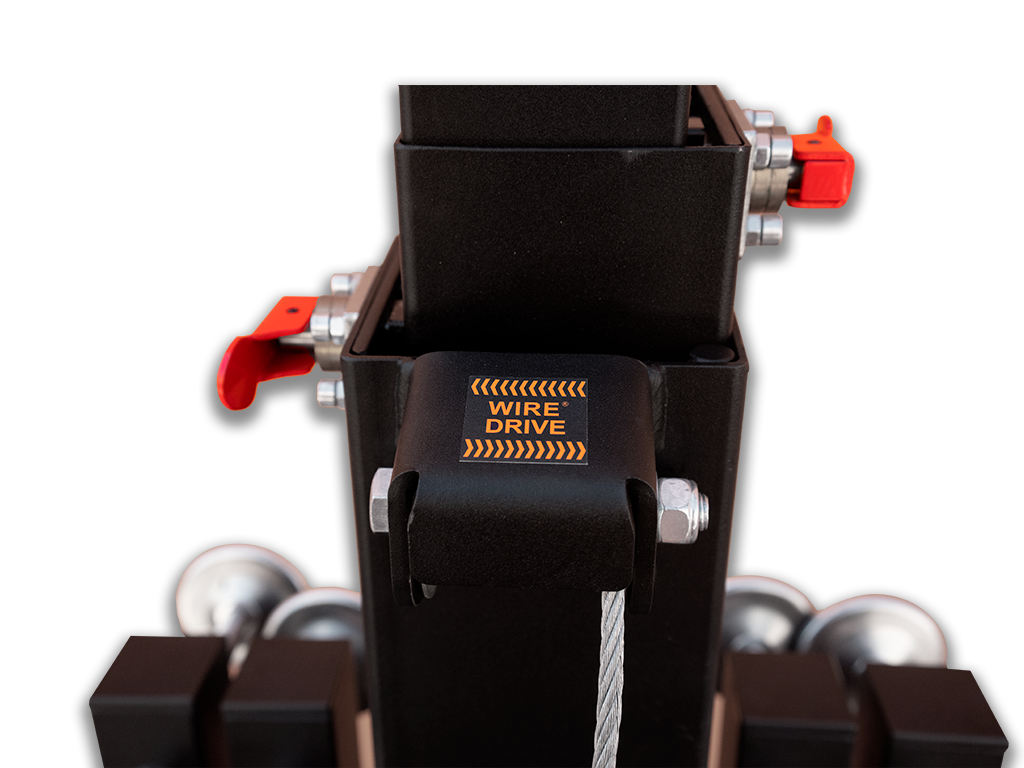

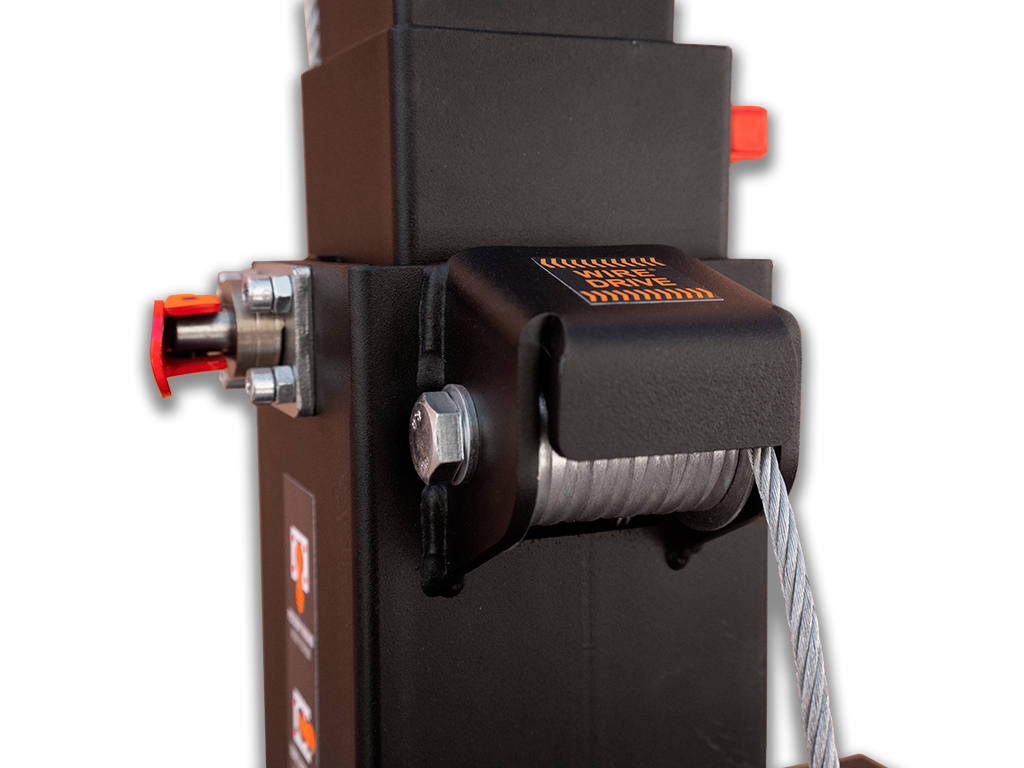

  • Load sense. Wire Drive.
  • Stabilizer leg system.
  • High load capacity.
MaterialSteel
Folded Height1,95 m / 6,40 ft
Extended base dimensions2,65 x 2,65 m/ 8,69 x 8,69 ft
Folded base dimensions0,46 x 0,46 m/ 1,51 x 1,51 ft
Maximum height6,55 m / 21 ft
Minimun height1,95 m / 6,40 ft
No. of sections5
Minimum Load25 Kg / 55,12 lb
Max load (mechanism mode)225 Kg / 496,04 lb
Winch900 Kg / 1984,16 lb
Cable diameter6 mm / 0,24 in
Noise Emission75 dB
Compatible accessoriesATCMOS / ATCMOB / ATCLTS / ATC6FS / ATC29S / ATCBAS

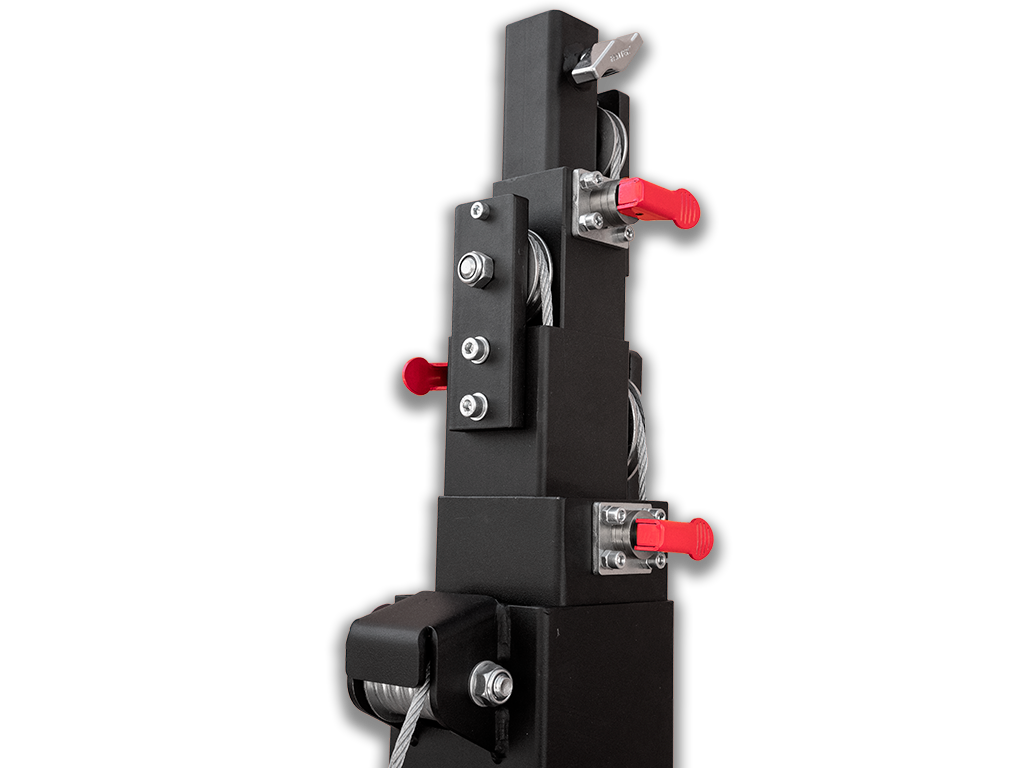

Security systemsSelf locking safety pins
Standards and CertificationsCE, DGUV, BGV C1, BGG 912
Weight103 Kg / 227,08 lb
Unfolded base diameter2,65 m / 8,69 ft
  Datasheet		Download
  Manual		Download

So far, there are no questions related to this product.

Register to be able to ask a question about this product.

I accept terms and conditions regarding the treatment of my data.Make the question

Related

  • TKA 351
    Universal truss bracket for all models of top-loading towers.
  • TKA 351B
    Universal truss bracket for all models of top-loading towers.
  • TKA 356
    Adapter for six spotlights to top-loading towers.
  • TKA 359
    Adapter for top-loading towers 35 to 29 mm diameter.

Alternatives

  • TK 6422
    Top load tower. Number of profiles: 5. Maximum load: 225 Kg. Maximum height: 6,4 m.

Spareparts

  • CAB-900
    Winch with a maximum load of 900 kg for FT7045, FT6033, T105 and T106 towers.
  • P 4
    Leg for T106 tower.
