TK 6422

ATTENTION
We are currently in the process of re-naming our products. Click here for more information and to discover all the new updates.

Top Loading

Top load tower

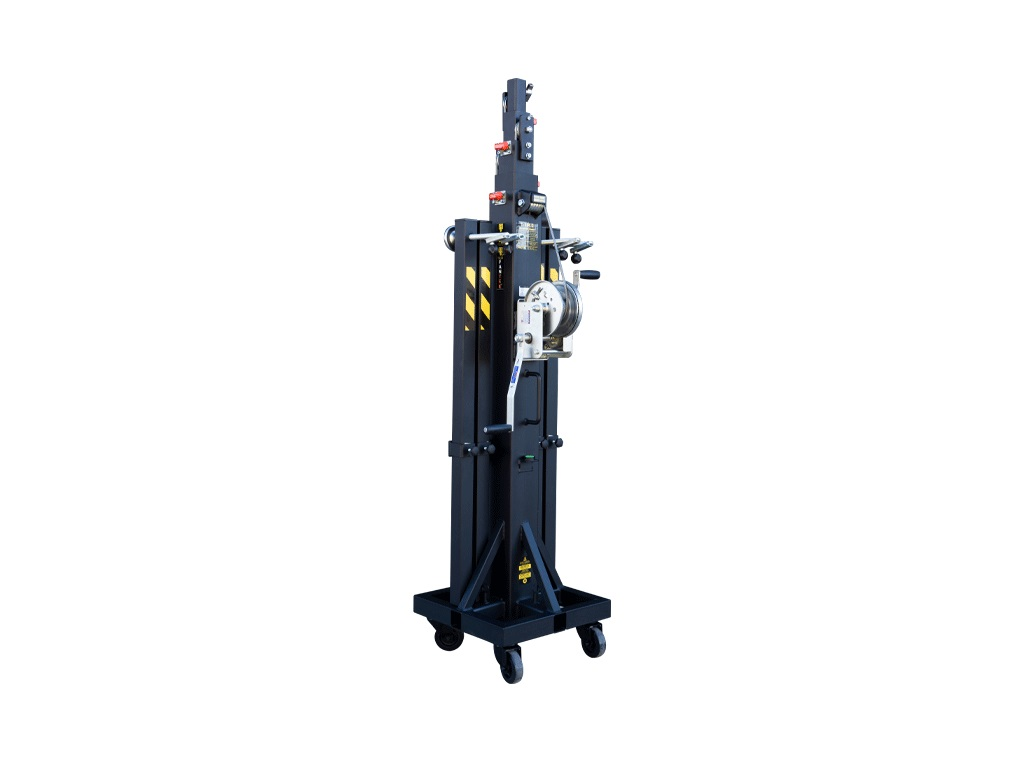

The lifting tower model T 106 is a tower designed to lift vertical loads up to 225 Kg and 6.4 metres high. Composed of 5 extendable steel profiles raised by means of a high resistance steel cable. The tower section is fixed to the working height by means of an automatic steel safety pin. Legs with non-slip rubber feet. The whole system is operated by a manually operated winch.

Maximum Load
225kg/496.04lb

Folded Height
1.84m/6.03ft

Maximum Height
6.4m/21ft

Weight
95kg./209.44lb.

Share on

Features

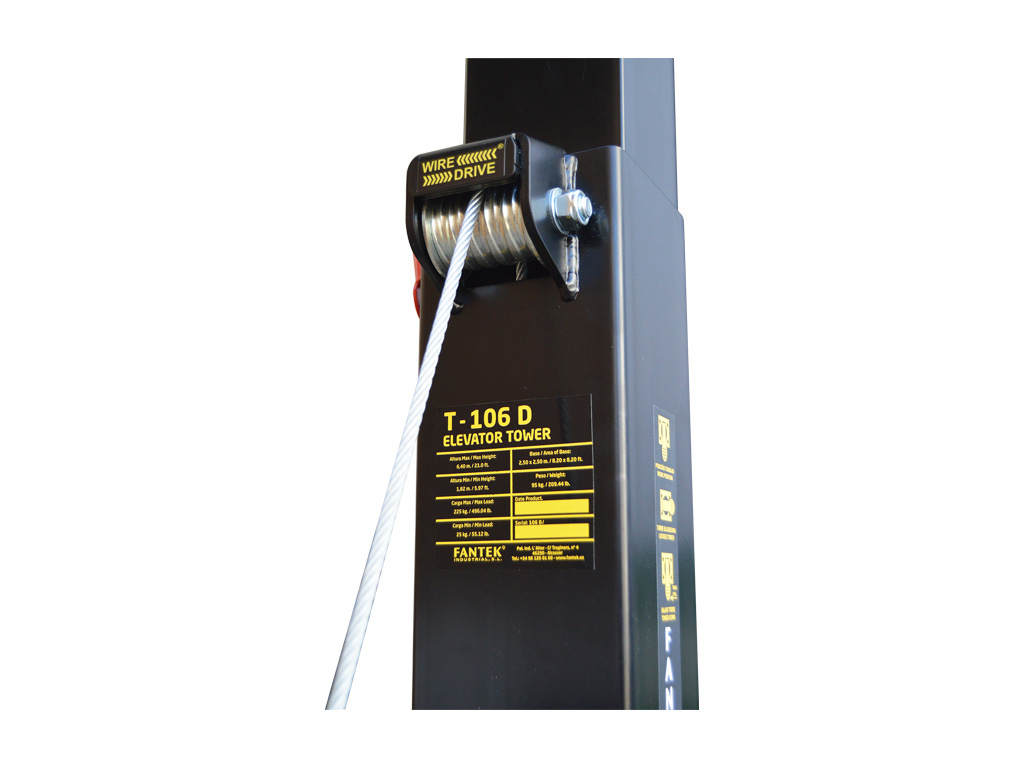

Wire Drive.
Levelable leg system.
High load capacity.

Material	Steel
Folded Height	6,03 ft
Extended base dimensions	8,69 x 8,69 ft
Folded base dimensions	1,51 x 1,51 ft
Maximum height	21 ft
Minimun height	6,03 ft
No. of sections	5
Minimum Load	55,12 lb
Max load (mechanism mode)	496,04 lb

Winch	1984,16 lb
Cable diameter	0,24 in
Noise Emission	75 dB
Compatible accessories	ATCMOS / ATCMOB / ATCLTS / ATC6FS / ATC29S / ATCBAS
Security systems	Self locking safety pins
Standards and Certifications	CE, DGUV, BGV C1, BGG 912
Weight	209,44 lb
Unfolded base diameter	8,38 ft

#1	Certificate	Certificado CE - T106	Download
#2	Certificate	Certificados modelos T	Download
#3	Manual	TK Series_ Manual	Download
#4	Datasheet	TK 6422_Datasheet	Download
