Top Loading

TK 3810

Top Load Tower

The telescopic lifting tower T 101 model is a tower designed to lift vertical loads while keeping its compact size, which allows an easy transportation. It is composed of three extensible steel profiles, lifted by a high-strength steel cable with grooved pulleys with SELOIL bearings. Automatic locking system comprised of self locking steel pins that fixes the tower to the deisred height. Legs with non-slip rubber feet. The entire system is operated with a manual winch.

Maximum Load
100kg/220.46lb

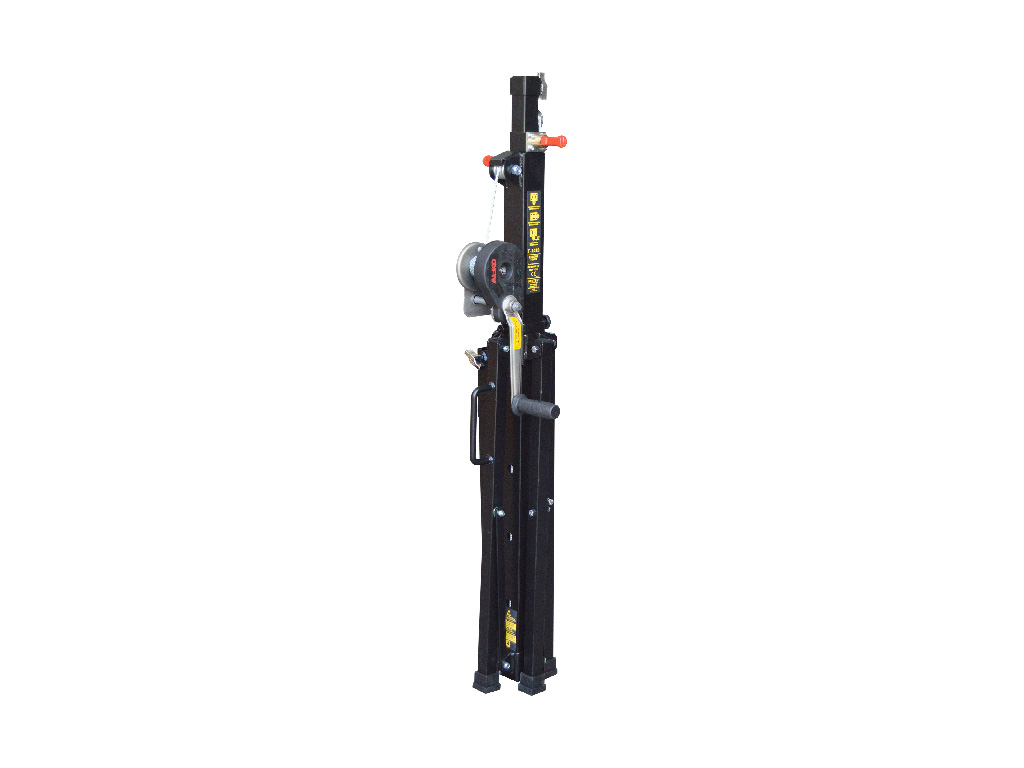

Folded Height
1.4m/4.59ft
Maximum Height
3.8m/12.47ft
Weight
24kg./52.91lb.



Share on

Features

  • Compact. Easy to transport.

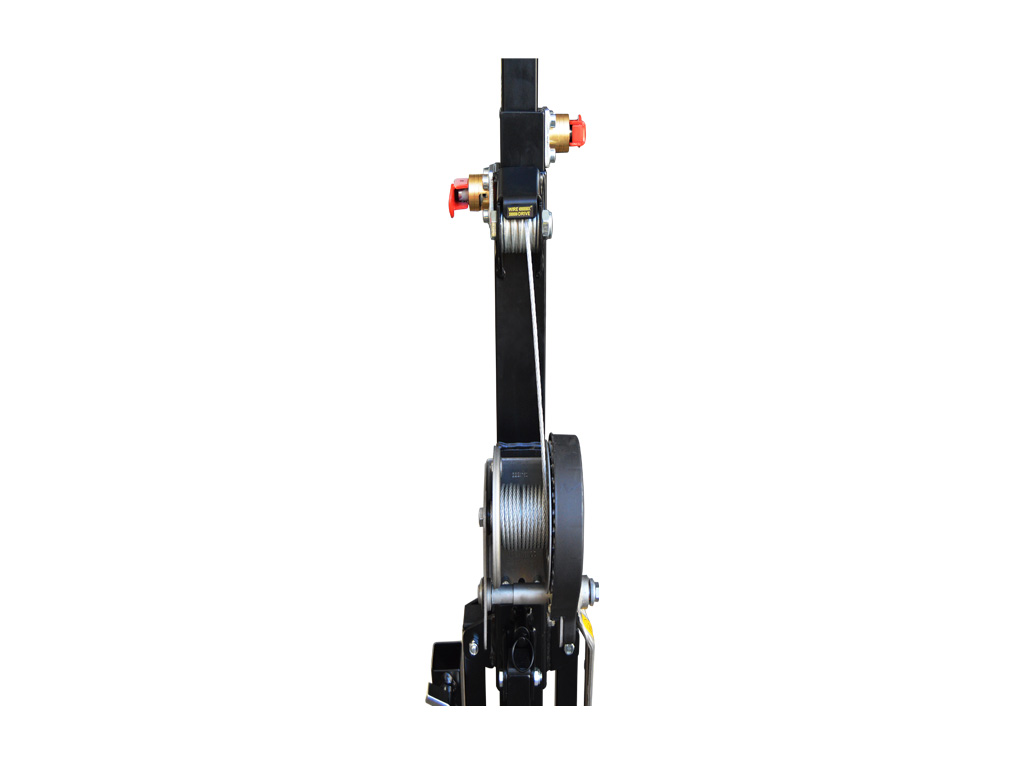

  • Wire Drive.

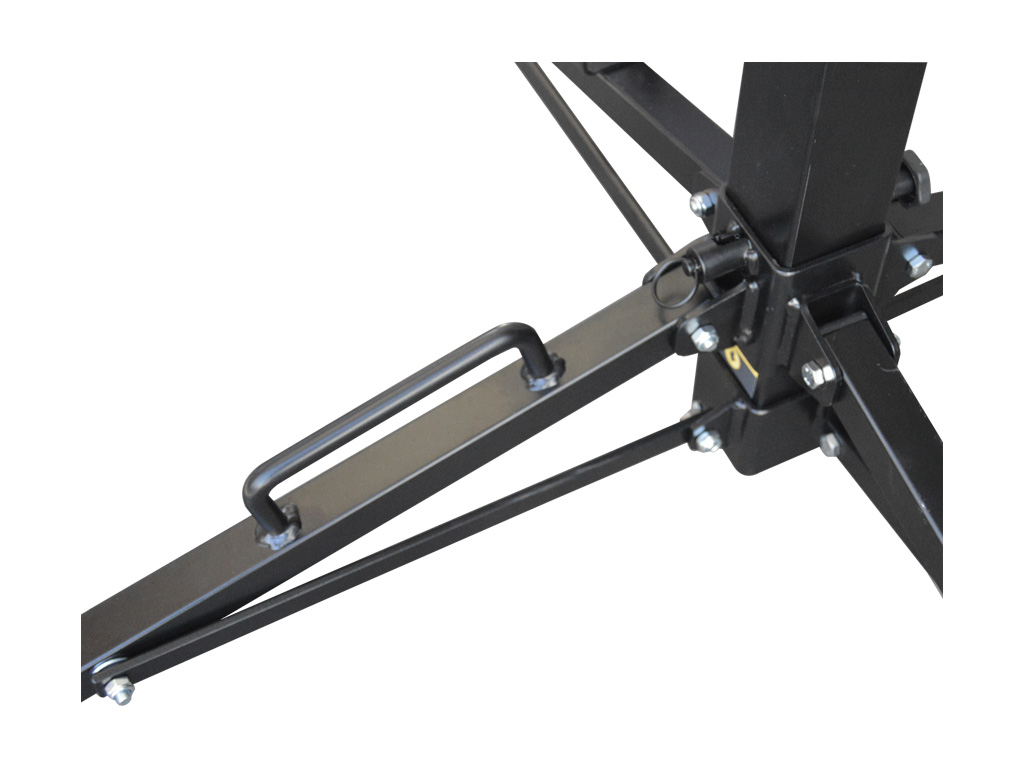

  • With 4 extensible legs.
MaterialSteel
Folded Height1,4 m/ 4,59 ft
Extended base dimensions1,6 x 1,6 m/ 5,25 x 5,25 ft
Folded base dimensions0,23 x 0,28 m/ 0,75 x 0,92 ft
Maximum height3,8 m / 12,47 ft
Minimun height1,4 m / 4,59 ft
No. of sections3
Minimum Load25 Kg / 55,12 lb
Max load (mechanism mode)100 Kg / 220,46 lb
Winch350 Kg / 771,62 lb
Cable diameter4 mm/ 0,16 in
Noise Emission70 dB
Compatible accessoriesATCMOS / ATCMOB / ATCLTS / ATC6FS / ATC29S / ATCBAS
Security systemsSelf locking safety pins
Standards and CertificationsCE, DGUV, BGV C1, BGG 912
Weight24 Kg / 52,91 lb
Unfolded base diameter1,61 m / 5,28 ft
  Certificate		Download
  Certificate		Download
  Manual		Download
  Datasheet		Download
