NEO 8 MAX

Passive loudspeaker 120 W @ 8 Ohm, 120/60/30/15 W @ L100V.

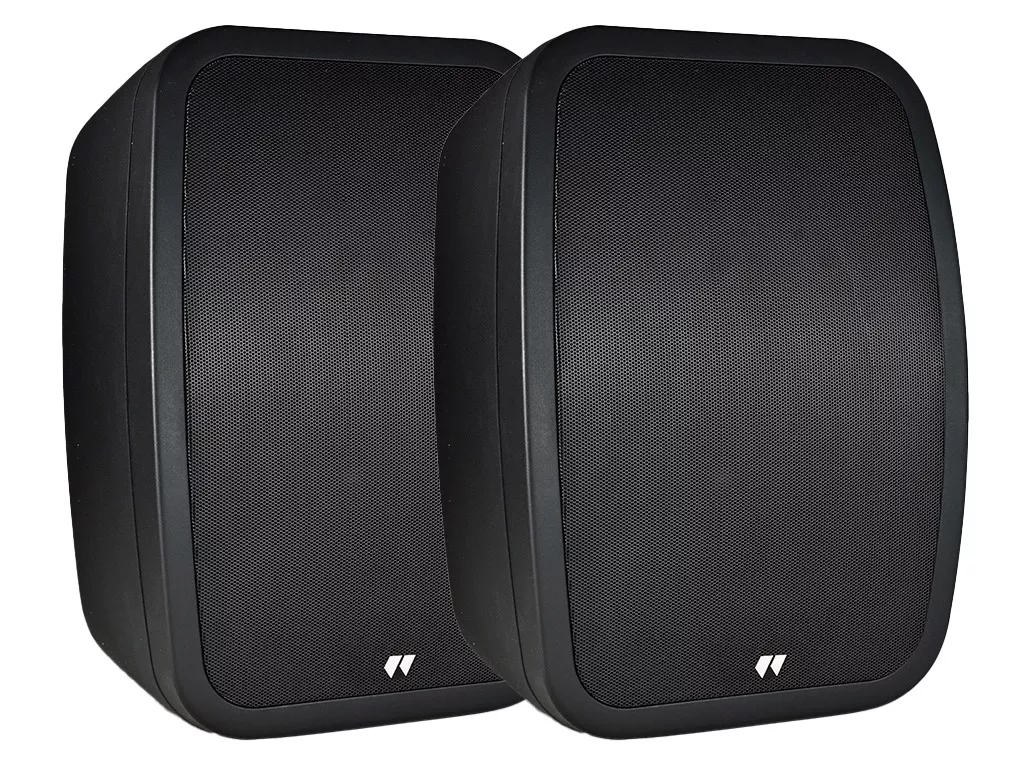

NEO 8 MAX is a 2-way loudspeaker made of ABS plastic and white or black aluminum grille. It is made up of an 8' speaker and a 1' tweeter.

It stands out especially for the possibility of its use both in 70/100 V installations and in low impedance installations. When a loudspeaker is connected at low impedance the audio does not pass through the transformer in order to maintain a high level of quality.

NEO 8 MAX is also very simple and quick to install, thanks to the new bracket designed exclusively for this model, which also allows quick orientation of the box on both axes. It is sold in pairs (two passive loudspeakers).



Share on

Features

  • 120 W @ 8 Ohm, 120/60/30/15 W @ L100V.
  • Wall brackets included.
  • Price per pair.
  • Wall brackets included.
Type2 vías. Pasivo/ 2 ways. Passive
Low Impedance Power120 W @ 8 Ohm
L100V Power120/60/30/15 W
Nominal Impedance8 Ohm
LF TransducerWoofer 8"
HF TransducerTweeter 1"
Sensitivity (1W @ 1m)93 dB
SPL Max111 dB
Coverage Angle (H x V)120º x 90º
Frequency Range75 Hz - 20 KHz
ConnectionsEuroblock
Enclosure materialPolypropylene
GrillAluminum
Inserts / RiggingWall brackets (included)
Colour Black (RAL 9004)
IP ProtectionIP54

So far, there are no questions related to this product.

Register to be able to ask a question about this product.

I accept terms and conditions regarding the treatment of my data.Make the question

Related

  • PA 120 USB/R
    Amplifier with mixer / player. 120 W @ 8 Ohm, L100V. 2 Mic, 1 Mic / Line, 1 Aux, 1 CD, 1 Tel.
  • MMP 10 AT
    Amplifier with MP3 and FM radio player. 2 x 100 W @ 4 Ohm. USB/SD/BT. MIC+AUX+LINE. Remote control.
  • MKS 1400
    Speaker cable. 2 conductors 2 mm2. 100 metre. Black. Price per metre.

Alternatives

  • NEO 6
    Passive loudspeaker 60 W @ 8 Ohm, 32 W @ L100V. 6.5'' Woofer + 1'' Tweeter. Sold in pairs.

Spareparts

  • Speaker Neo 8
  • TRANSFORMER LINE NEO 6 / NEO 8
