NEO 6

Passive loudspeaker 60 W @ 8 Ohm, 32 W @ L100V.

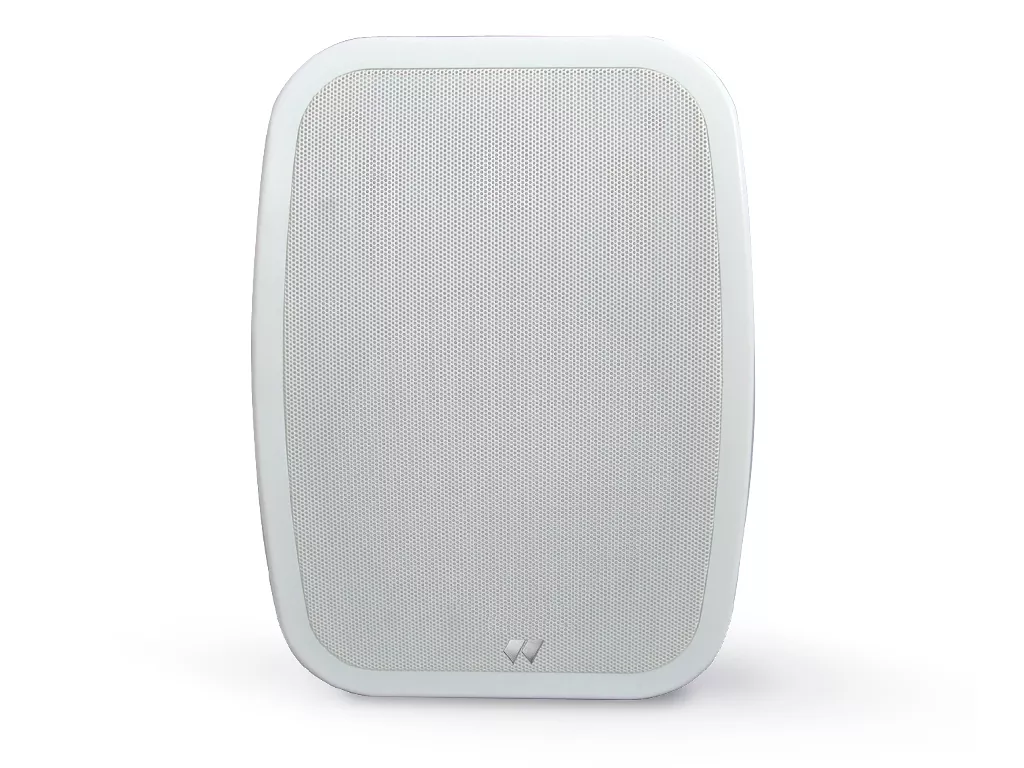

NEO 6 is a 2-way loudspeaker made of ABS plastic and white or black aluminum grille. It consists of a 6.5 '' speaker and a 1 '' tweeter.

It stands out especially for the possibility of its use both in 70/100 V installations and in low impedance installations. When a loudspeaker is connected at low impedance the audio does not pass through the transformer in order to maintain a high level of quality.

NEO 6 is also very simple and quick to install, thanks to the new support designed exclusively for this model, which also allows a quick orientation of the box in both axes.

Sold in pairs (two passive loudspeaker).



Share on

Features

  • Suitable for high and low impedance installations.
  • Wall brackets included.
  • Price per couple.
  • Black and white colour.
Type2 ways. Passive
Low Impedance Power60 W @ 8 Ohm
L100V Power32 W @ 312 Ohm, 16 W @ 625 Ohm, 8 W @ 1k25 Ohm, 4 W @ 2k5 Ohm
L70V Power16 W @ 625 Ohm, 8 W @ 1k25 Ohm, 4 W @ 2k5 Ohm, 2 W @ 5 KOhm
Nominal Impedance8 Ohm
LF Transducer6.5" Woofer
HF Transducer1" Tweeter
Sensitivity (1W @ 1m)92 dB
SPL Max109 dB
Coverage Angle (H x V)120º x 90º
Frequency Range80 Hz - 20 KHz
ConnectionsEuroblock
Enclosure materialPolypropylene
GrillAluminum
Inserts / RiggingWall brackets (included)
ColourWhite (RAL 9003), Black (RAL 9004)
IP ProtectionIP54
Length(m)Width(m)Height(m)Weight(kg)
Product0.170.200.293.10
Box0.250.420.377.50
