Structural

GS 230

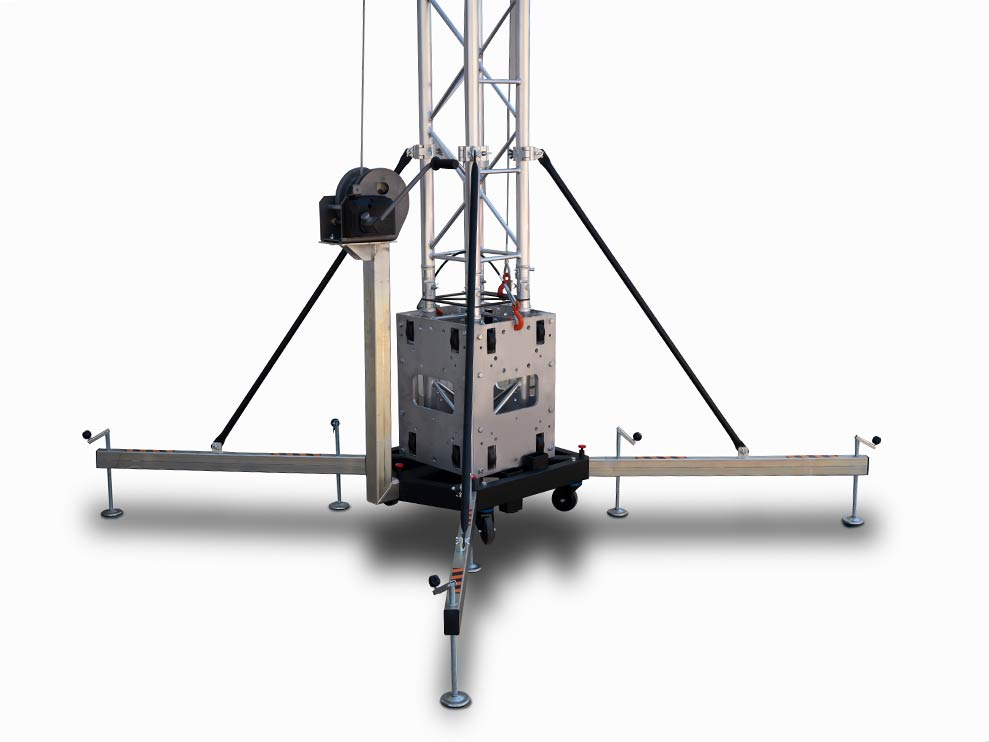

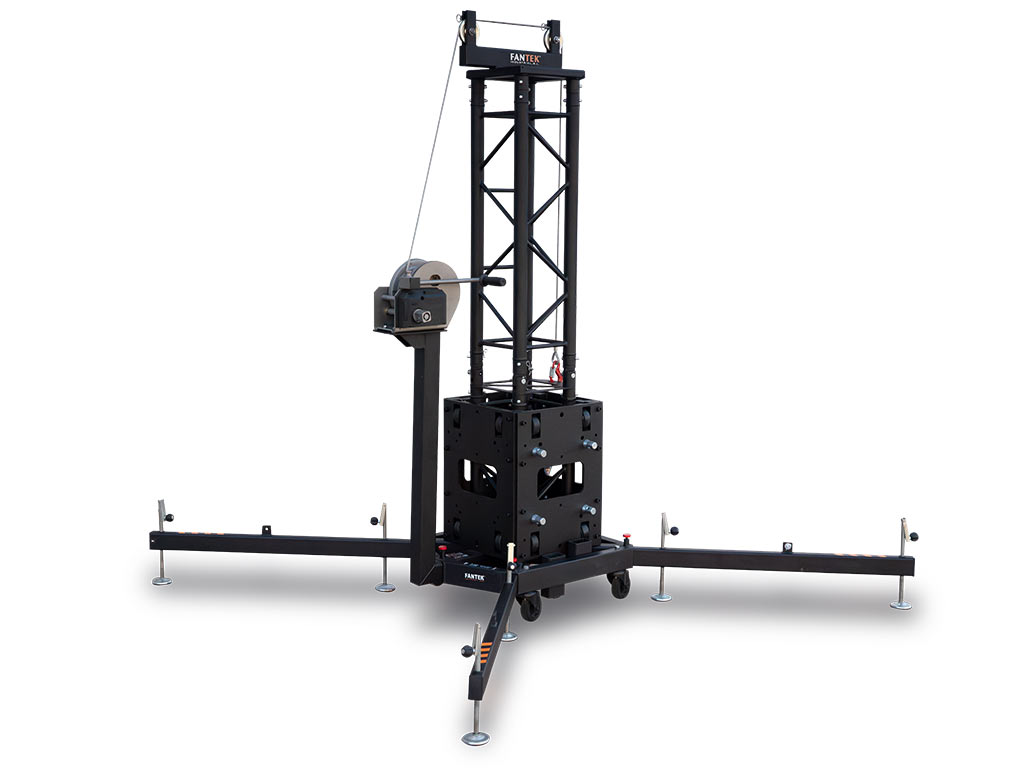

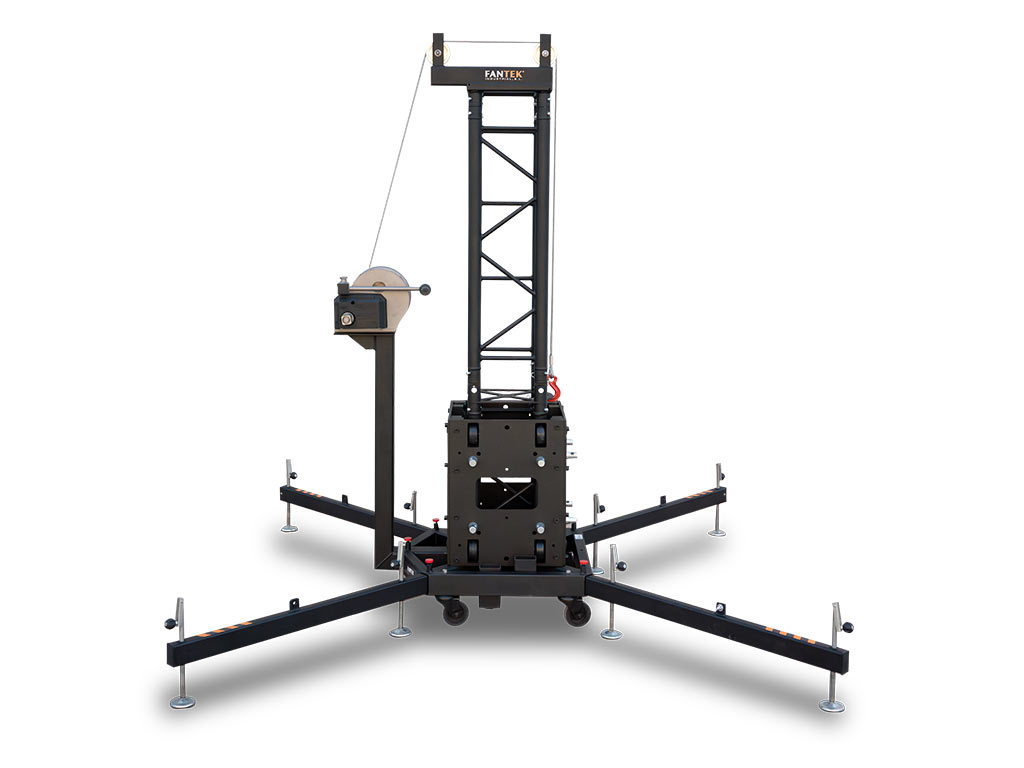

Structural tower 7 metres with winch. Silver or black

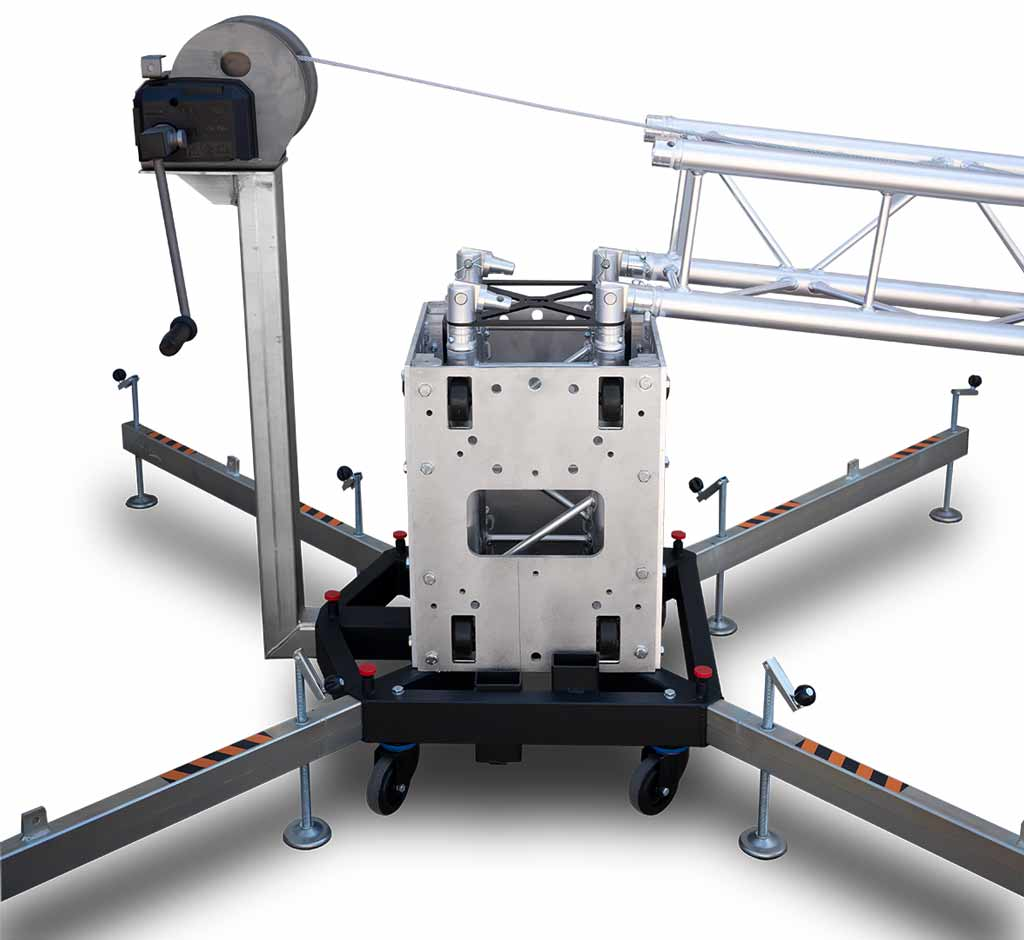

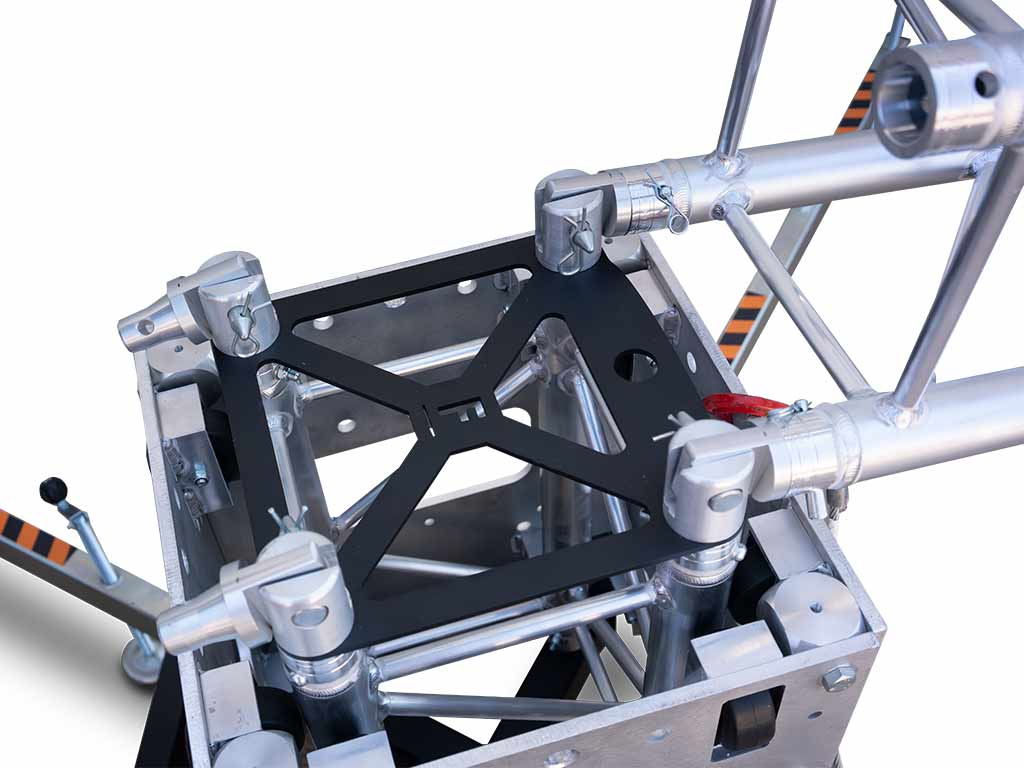

Our GS 230 Ground Support structural tower has been designed for lifting loads up to 750 kg at a maximum working height of 7 m (extendable up to 8 m). Made of aluminium and steel, it can be used with an ER30, EC30 or EC40 truss bolted directly to the trolley and lifted with a self-braking winch fitted with a crank (optional motor). Designed and manufactured for indoor and outdoor use. Available in Silver and Black. Connection set no included.


Maximum Load
750kg/1653.47lb
Folded Height
1.35m/4.43ft
Maximum Height
78m/22.96ft
Weight
85kg./187.39lb.



Share on

Features

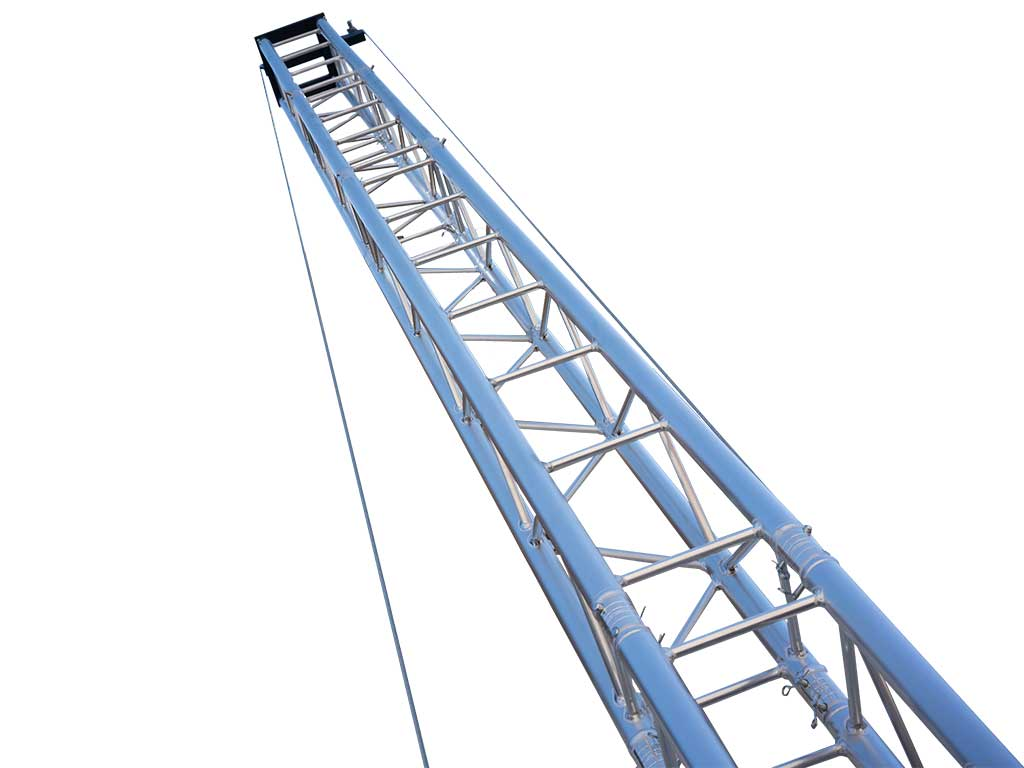

  • EC30 L truss mast.
  • Compatible with ER30, EC30 and EC40 trusses.

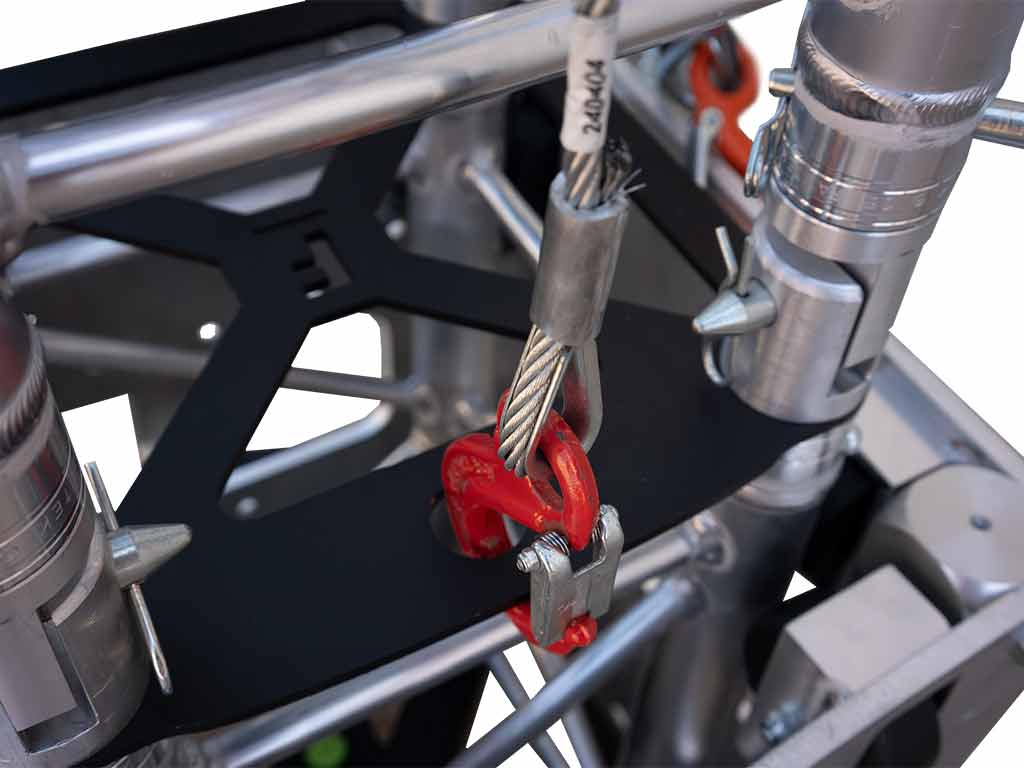

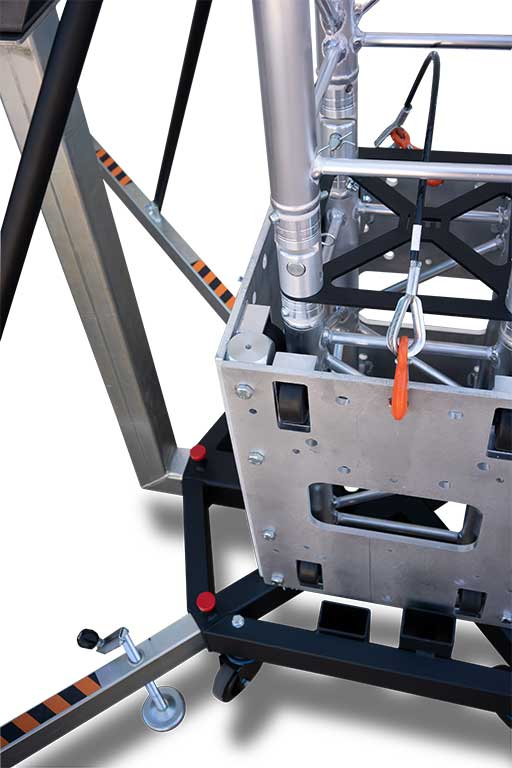

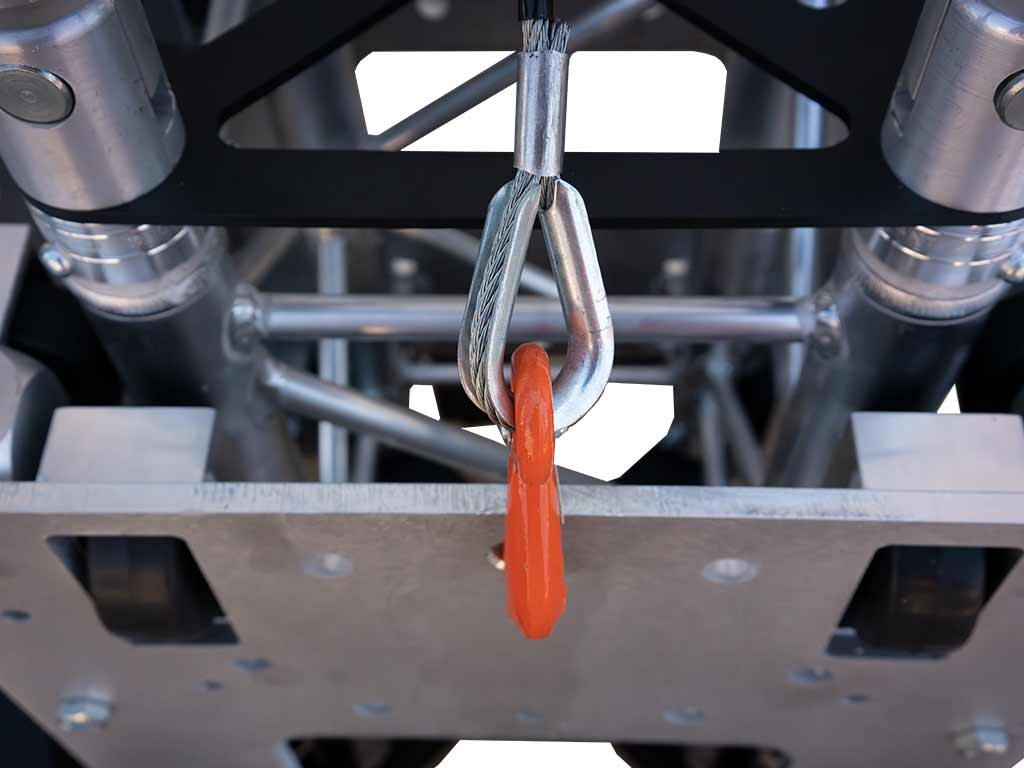

  • Safety system with locking sling. Easy assembly.
MaterialAluminum and steel
Maximum height7 m (ampliable hasta 8m)/ 22,96 ft (extendable up to 26,24 ft)
No. of sections5 tramos: 1xEC30058+2xEC301L+2xEC302L +1xEC30058(opcional)/ 5 sections: 1xEC30058+2xEC301L+2xEC302L +1xEC30058(optional)
Maximum Load750 kg/ 1653,47 lb
Elevation systemManual drive (winch) as standard, motor as option
Cable diameter6 mm / 0,28 in
Unfolded base2,84 x 2,84 m/ 9.32 x 9.32 ft
Folded Base0,72 x 0,64 m / 2.36 x 2,09 ft
Security systemsYes
Weight85 Kg/ 187,39 lb
Aluminum thickness2 mm / 0,078 in
Main tube diameter50 mm / 1,96 in
Down tube diameter16 mm/ 0,63 in
ColourBlack and Silver
Section dimensions30 x 30 cm/ 11,81 x 11,81
  Manual		Download
  Manual		Download

So far, there are no questions related to this product.

Register to be able to ask a question about this product.

I accept terms and conditions regarding the treatment of my data.Make the question
