Triangular

FK30T

Triangular truss. FK SERIES

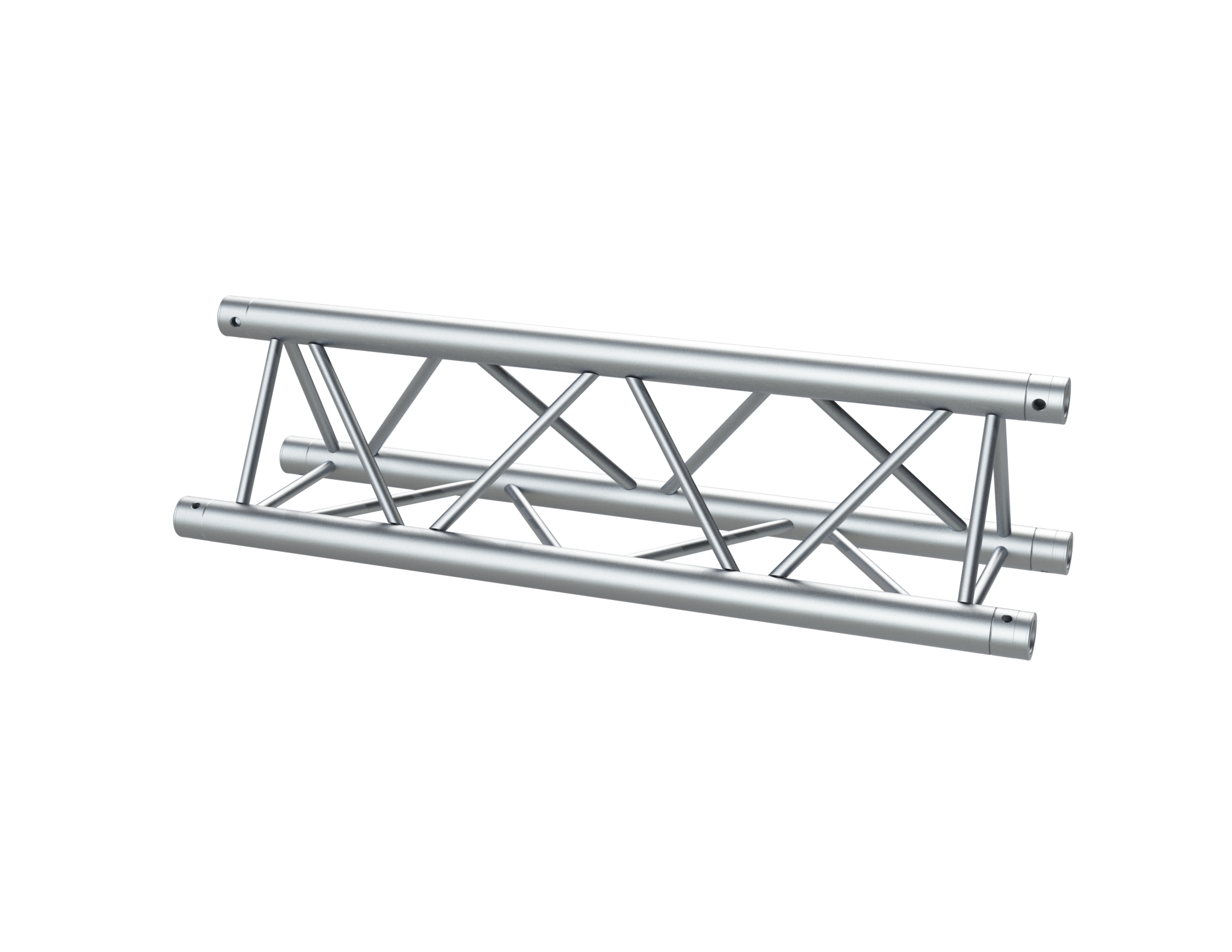

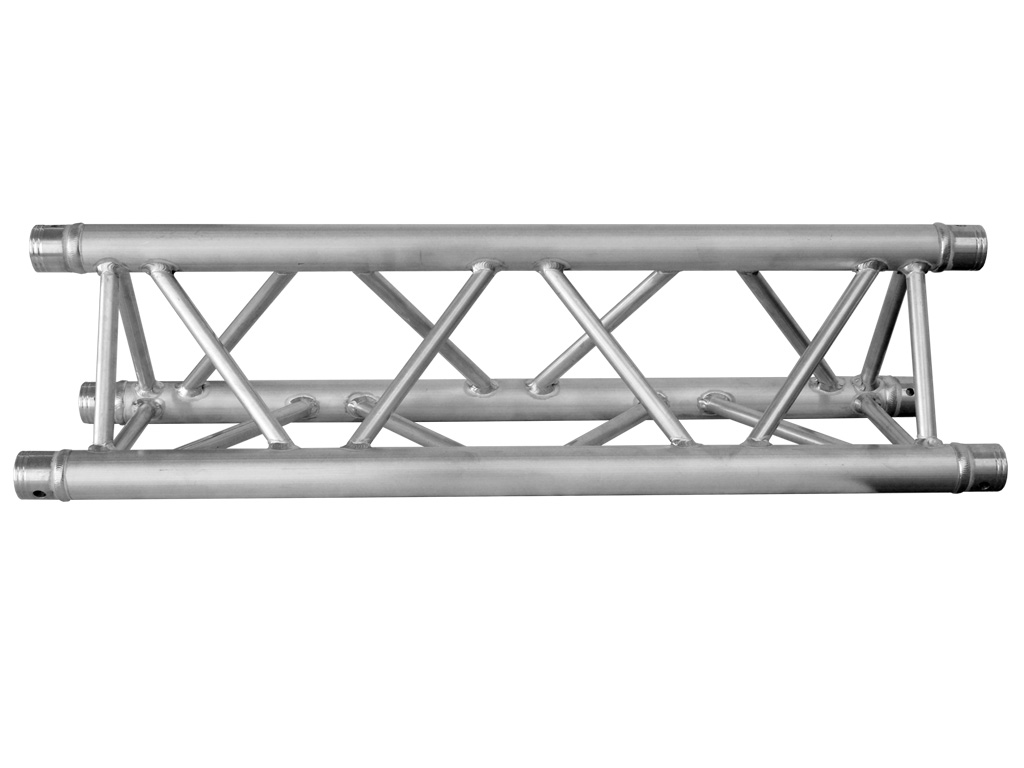

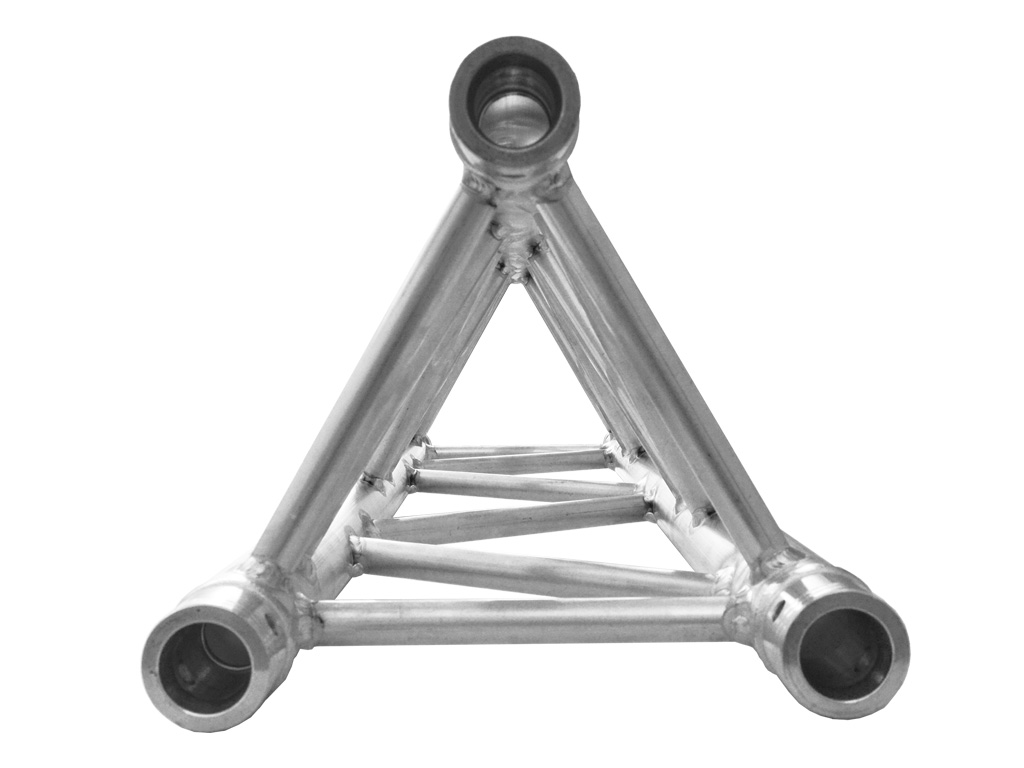

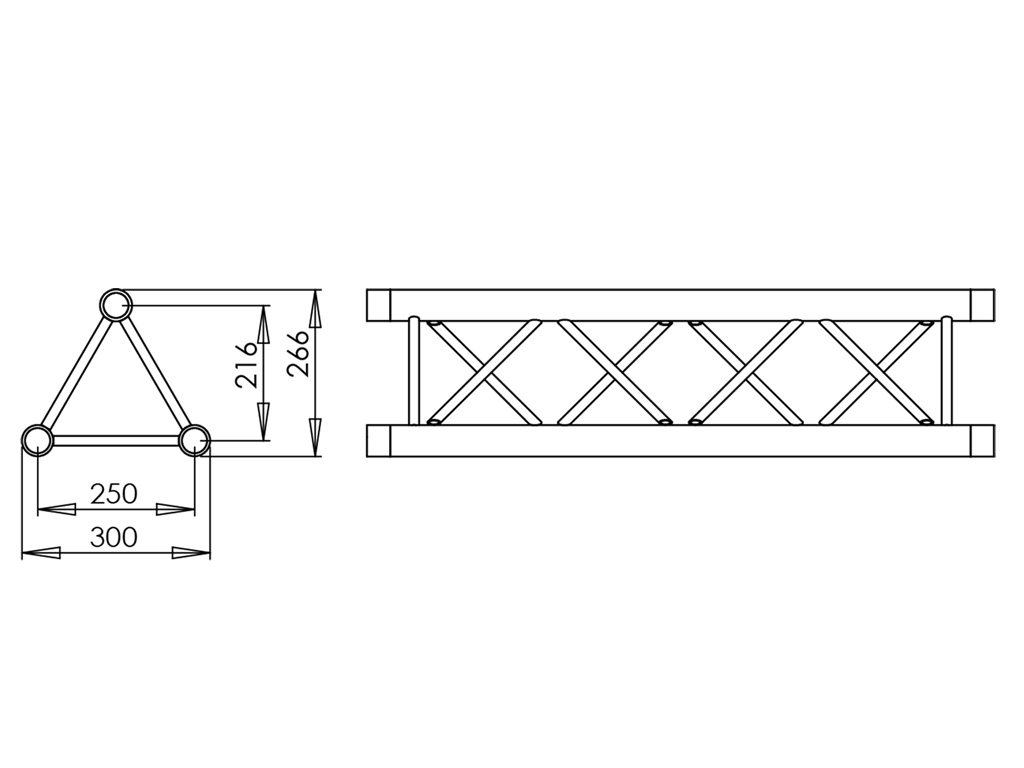

Section of triangular aluminium truss structure measuring 30 cm on a side, manufactured with main tube of 50 mm in diameter and 2 mm in thickness, and auxiliary tube of 16 mm in diameter and 2 mm in thickness. Available in lengths of 0.5, 1, 2 and 3 meters, and in silver or black. Includes 3 double cones, 3 pins, 3 threaded pins and 3 'R' safety clips. FK SERIES compatible.



Share on

Features

  • Standard dimensions: 1,64 / 3,28 / 6,56 / 9,84 ft
  • Other sizes available on request.
  • Available in silver or black.
  • Other colours available on request.
Main Tube Section50 x 2 mm
Main Tube AlloyEN AW 6082T6
Braces Section16 x 2 mm
Braces AlloyEN AW 6082T6
Weight4,5 kg/m/ 3,024 lb/ft
Surface Area Complete Truss9,05 cm2/ 1,4028 in2
Coupling SystemCBC50F
1.64 feet - Weight3,9 kg/ 8,598 lb
3.28 feet - Weight6,3 kg/ 13,889 lb
6.56 feet - Weight7,6 kg/ 16,755 lb
9.84 feet - Weight11,2 kg/ 24,692 lb
1.64 feet - Volume0,021 m3/ 0,742 ft3
3.28 feet - Volume0,0421 m3/ 1,487 ft3
6.56 feet - Volume0,0841 m3/ 2,97 ft3
9.84 feet - Volume0,1262 m3/ 4,457 ft3
  Certificate		Download
  Technical Data Image		Download
  Technical Data Image		Download
  Application Tip		Download

So far, there are no questions related to this product.

Register to be able to ask a question about this product.

I accept terms and conditions regarding the treatment of my data.Make the question
