Front Loading

FT 5023LS

Frontal Load Model.

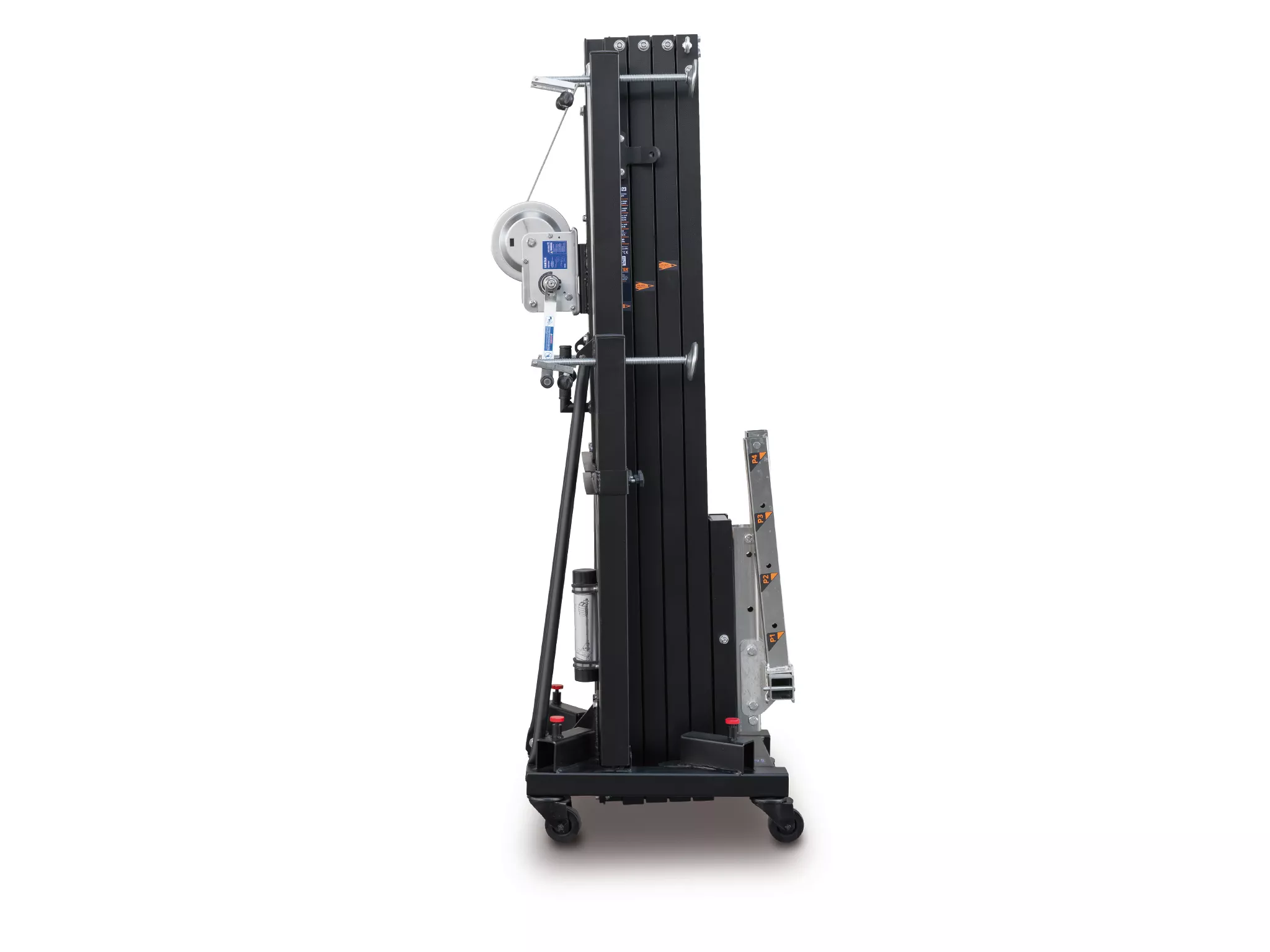

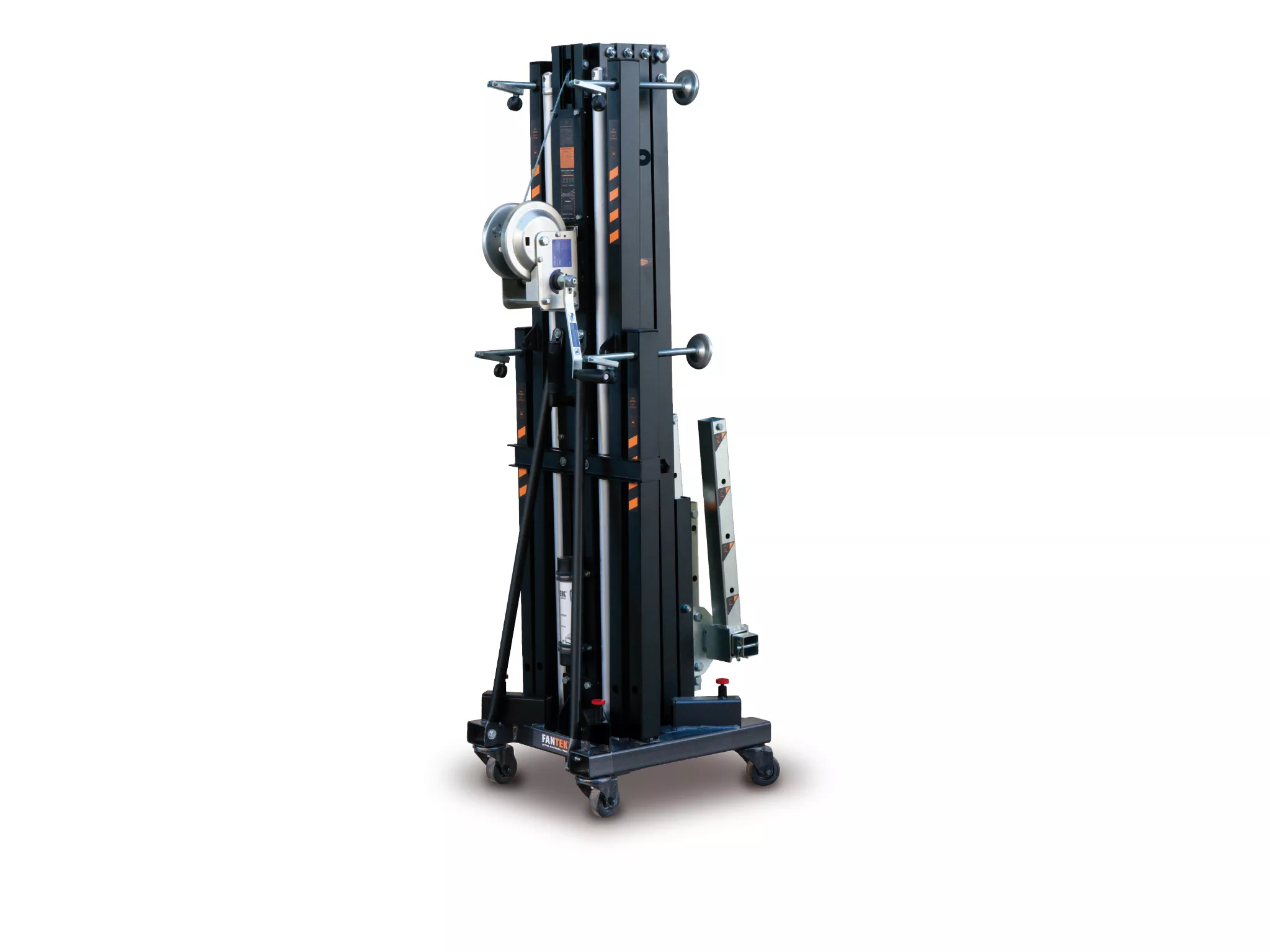

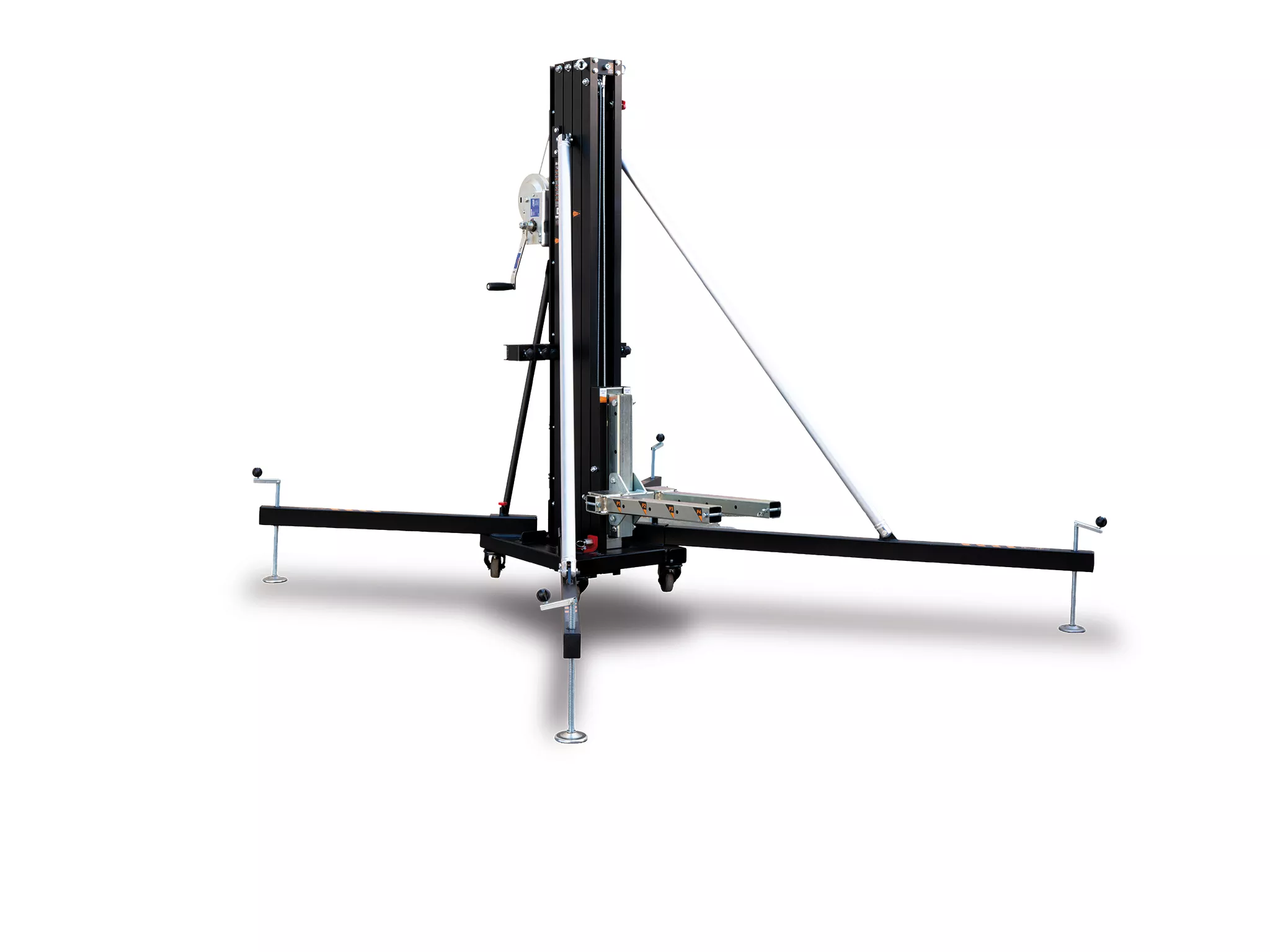

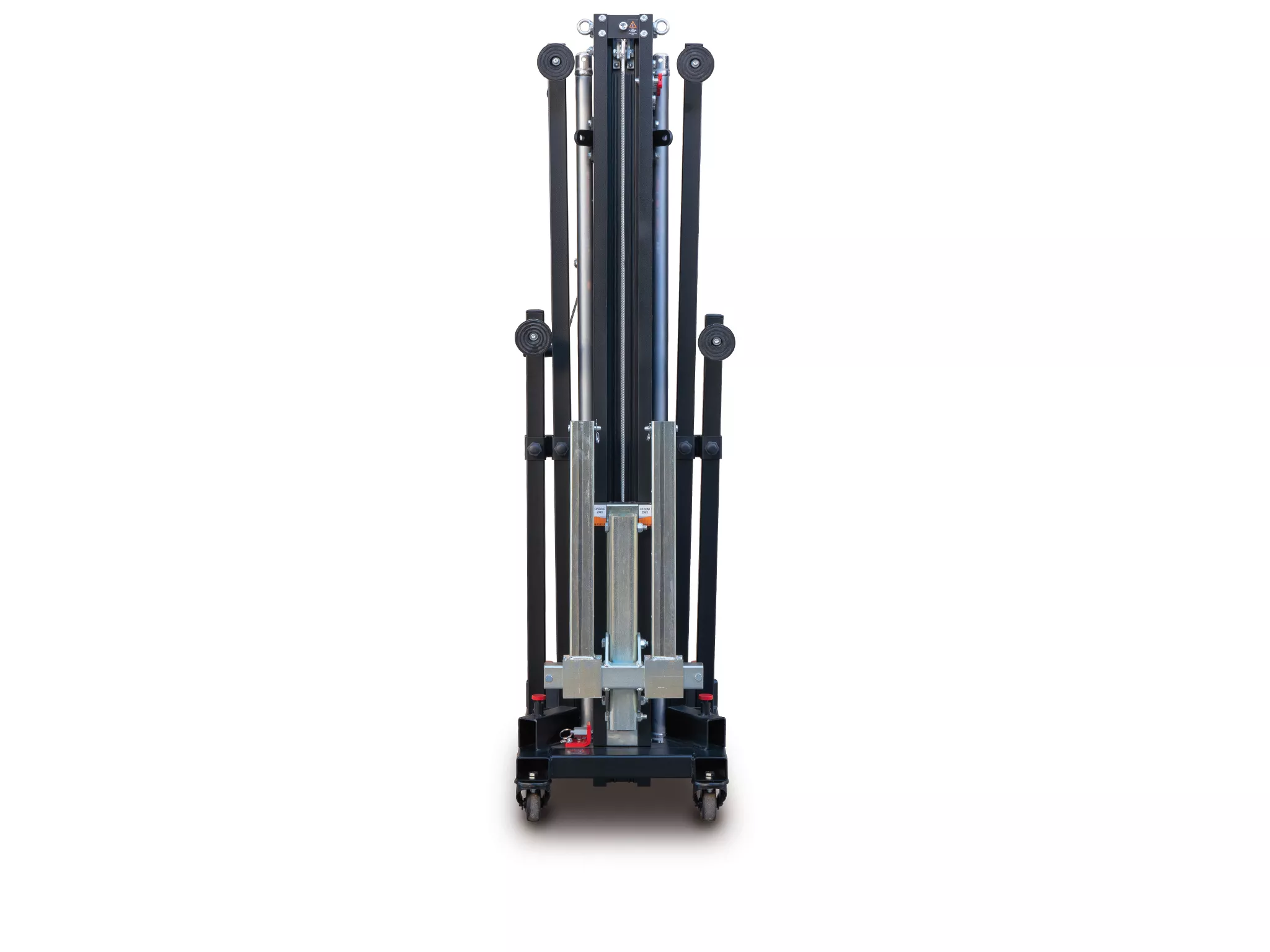

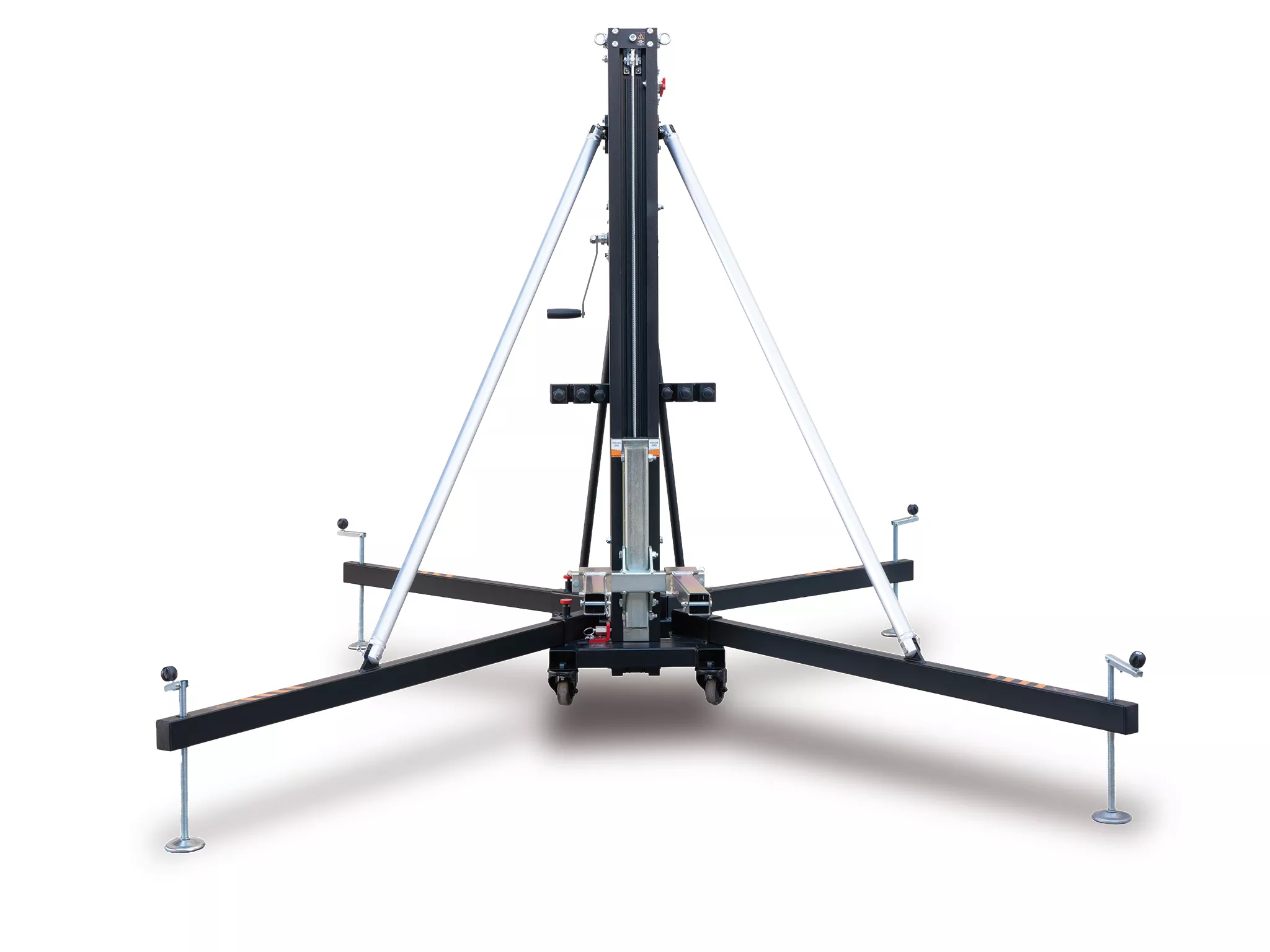

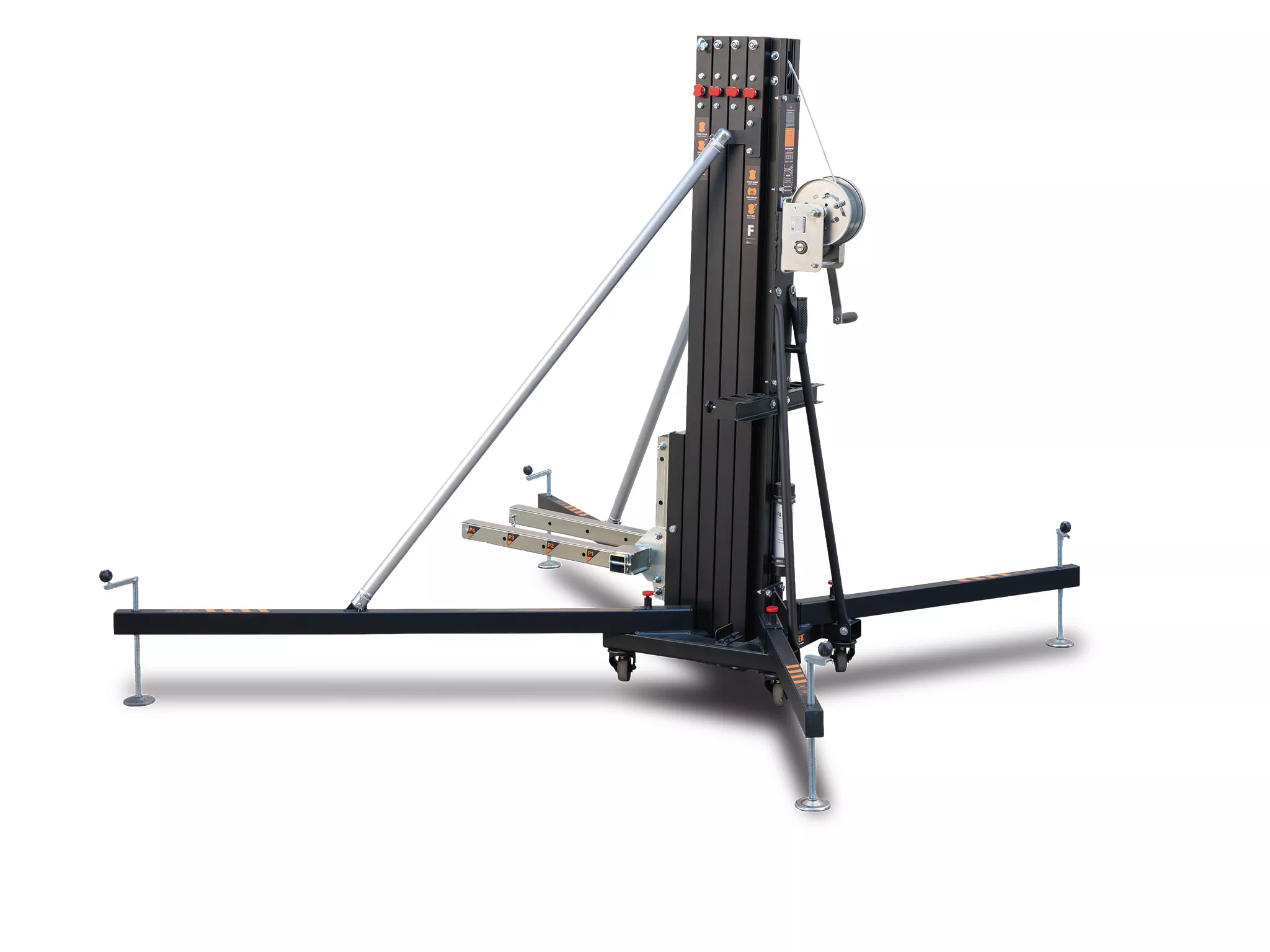

Front load lifting tower with a maximum height of 4,98 meters. Able to lift up to 235 Kg in its mechanism mode and 455 Kg in its structural model. It features the LoadSense system, which allows monitoring the lifter load in accordance with EN-17206 requirements. Its Dynamic Overlap system evens the stresses across all the aluminum profiles, improving their resistance and reducing deflexion.

Maximum Load
235kg/518.01lb
Folded Height
1.713m/5.62ft
Maximum Height
4.98m/16.34ft
Weight
0kg./0lb.



Share on

Features

  • Dynamic Overlap.
  • LoadSense System.
  • Mechanism and structural modes.
MaterialAluminum and steel
Max load (mechanism mode)235 Kg / 518,01 lb
Max load (structure mode)455 Kg / 1003,1 lb
Net Weight106,8 Kg/ 235,45 lb
Folded Base0,55 x 0,48 m/ 1,8 x 1,57 ft
No. of sections4
Maximum height4,98 m / 16,34 ft
Folded Height1,713 m/ 5,62 ft
Cable diameter5 mm/ 0,2 in
Standards and CertificationsDGUV CE

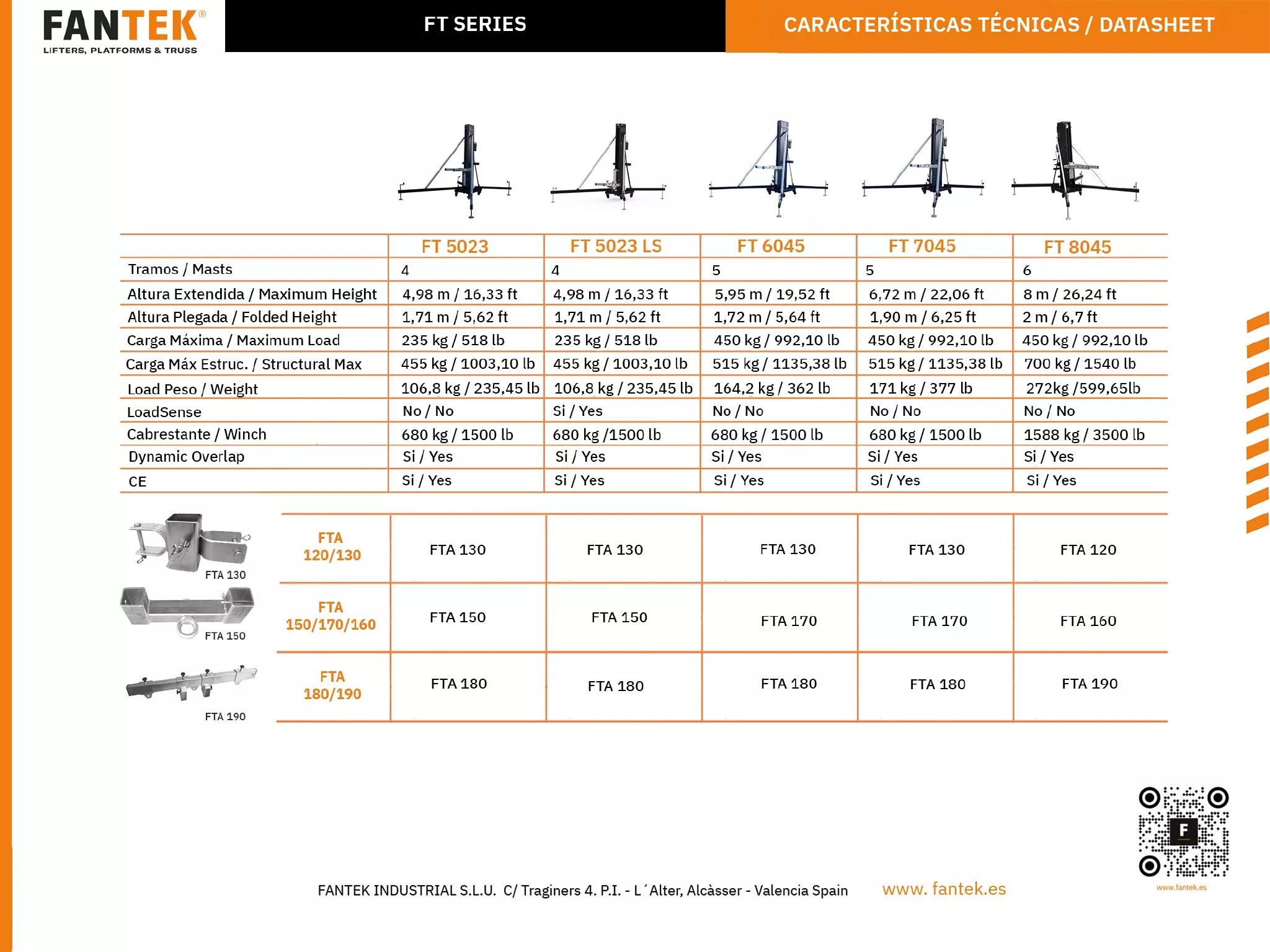

  Datasheet		Download

So far, there are no questions related to this product.

Register to be able to ask a question about this product.

I accept terms and conditions regarding the treatment of my data.Make the question

Related

  • FTA 130
    Reversible adapter for front loading towers to truss. For Ø48-50 mm tube and FT5323/FT6520/FT6033/FT7045 towers.
  • FTA 150
    Adapter for frontal load towers and Line Array. For FT5323/FT6520 models.
  • FTA 180
    Adjustable adaptor for front loading towers to Line Array. For models FT5323/FT6520/FT6033/FT7045.

Alternatives

  • FT 5023
    Front load lifting tower. Aluminum and steel. Load: 235 Kg. Structural load: 455 Kg. Maximum height: 4,98 m.
