Front Loading

FT 5023

Frontal Load Model.

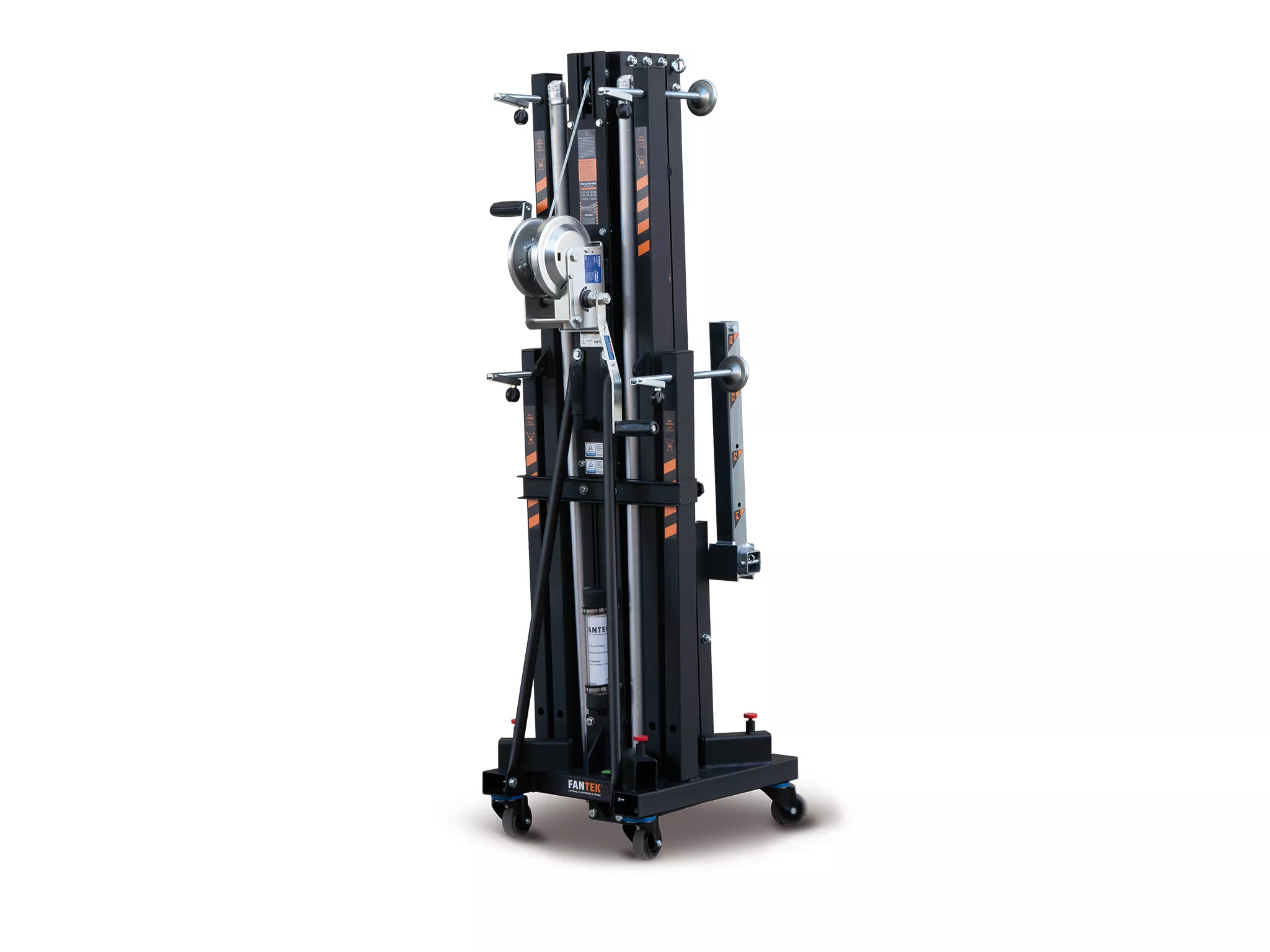

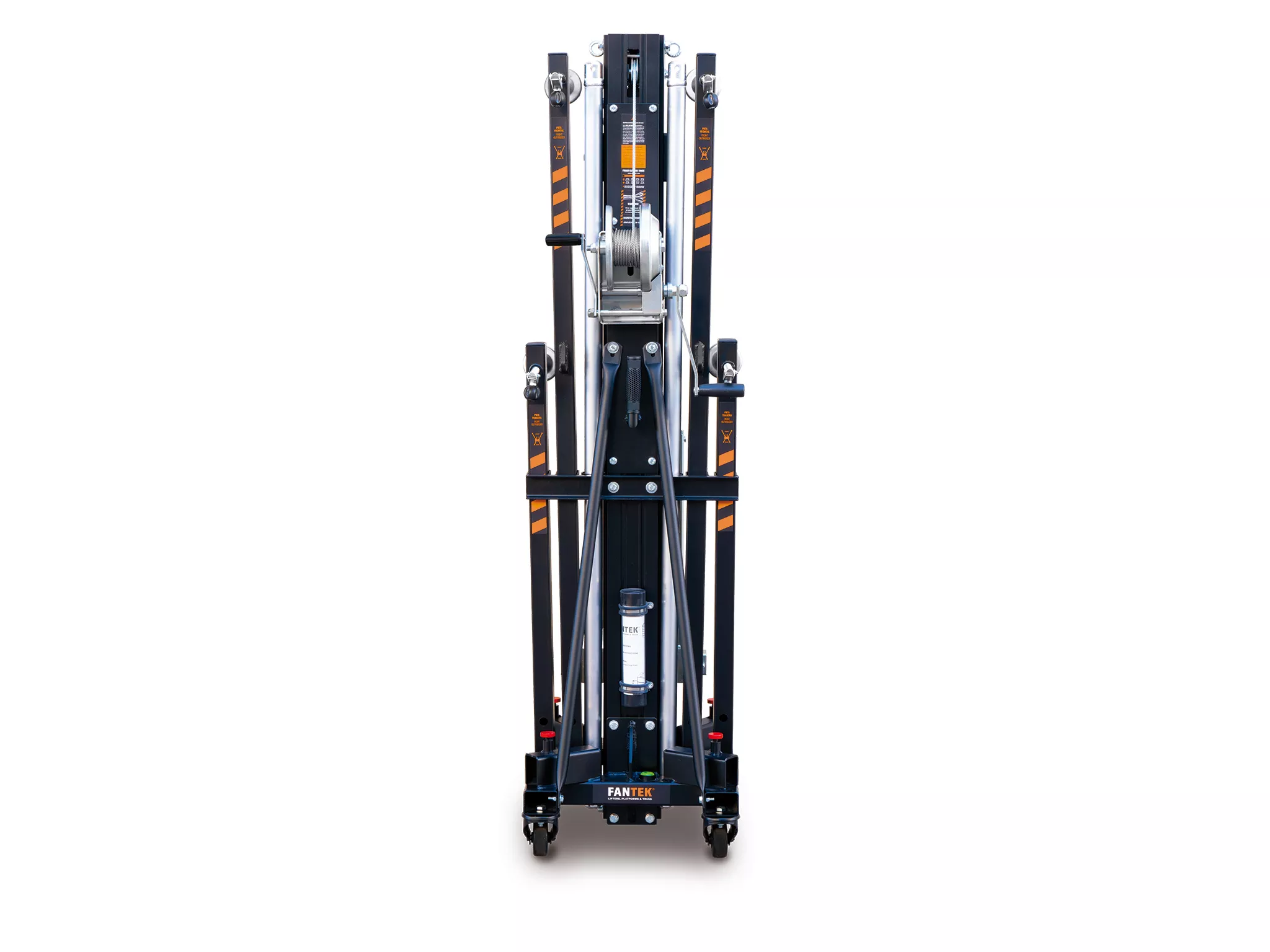

Front load lifting tower with a maximum height of 4,98 meters. Able to lift up to 235 Kg in its normal mode and 455 Kg in its structural model. Its Dynamic Overlap system evens the stresses across all the aluminum profiles, improving their resistance and reducing deflexion.

Maximum Load
235kg/518.01lb
Folded Height
1.713m/5.62ft
Maximum Height
4.98m/16.34ft
Weight
106.8kg./235.45lb.



Share on

Features

  • Dynamic Overlap.
  • Mechanism and structural modes.
  • Multipurpose.
MaterialAluminum and steel
Folded Height5,62 ft
Extended base dimensions6,56 x 6,56 ft
Folded base dimensions1,8 x 1,57 ft
Maximum height16,34 ft
Minimum carriage height1,08 ft
Unfolded base diameter8,69 ft
Distance between front legs6,56 ft
Distance between hind legs5,48 ft
Loading arms (m/ft)1,57 ft
No. of sections4
Max load (structure mode)1003,1 lb
Max load (mechanism mode)518,01 lb
Winch1102 lb
Cable diameter0,2 in
Compatible accessoriesATF1DS / ATF16PA / ATF17PAM
Security systemsSelf locking safety pins
Standards and CertificationsCE, DGUV
Weight235,45 lb
Maximum fork width (m/ft)0,87 ft
Length(m)Width(m)Height(m)Weight(kg)
Product0.550.481.71106.80
Box0.550.481.71106.80

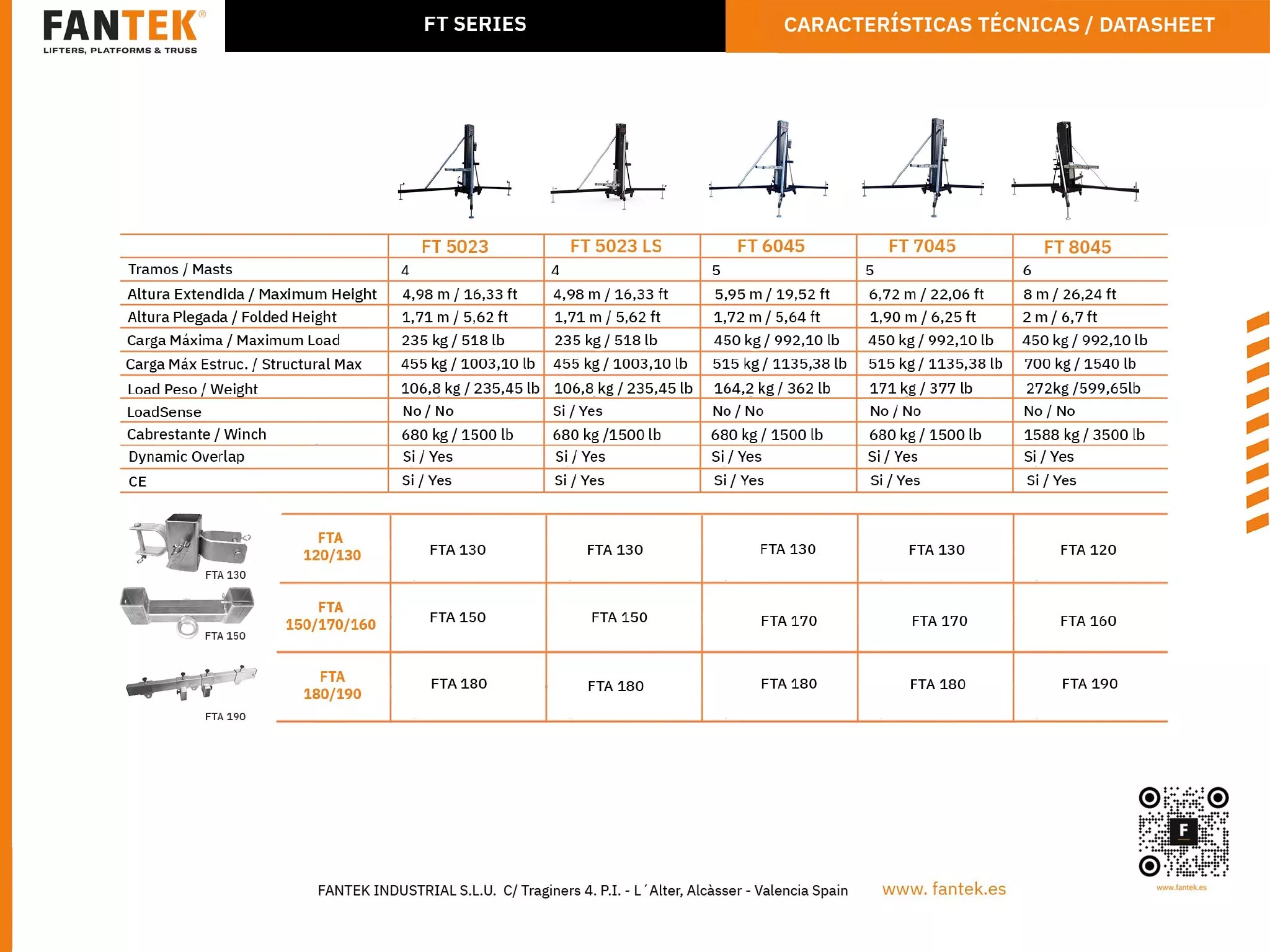

  Datasheet		Download
  Certificate		Download
  Manual		Download
