Rectangular

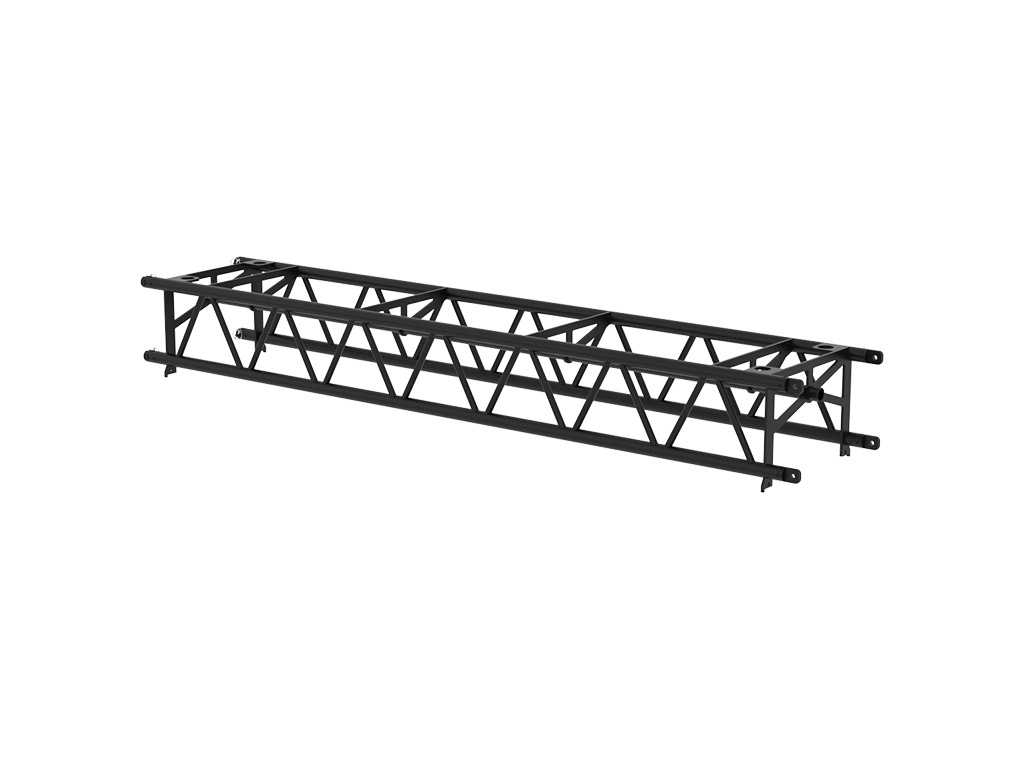

FPR TRUSS

New Products!

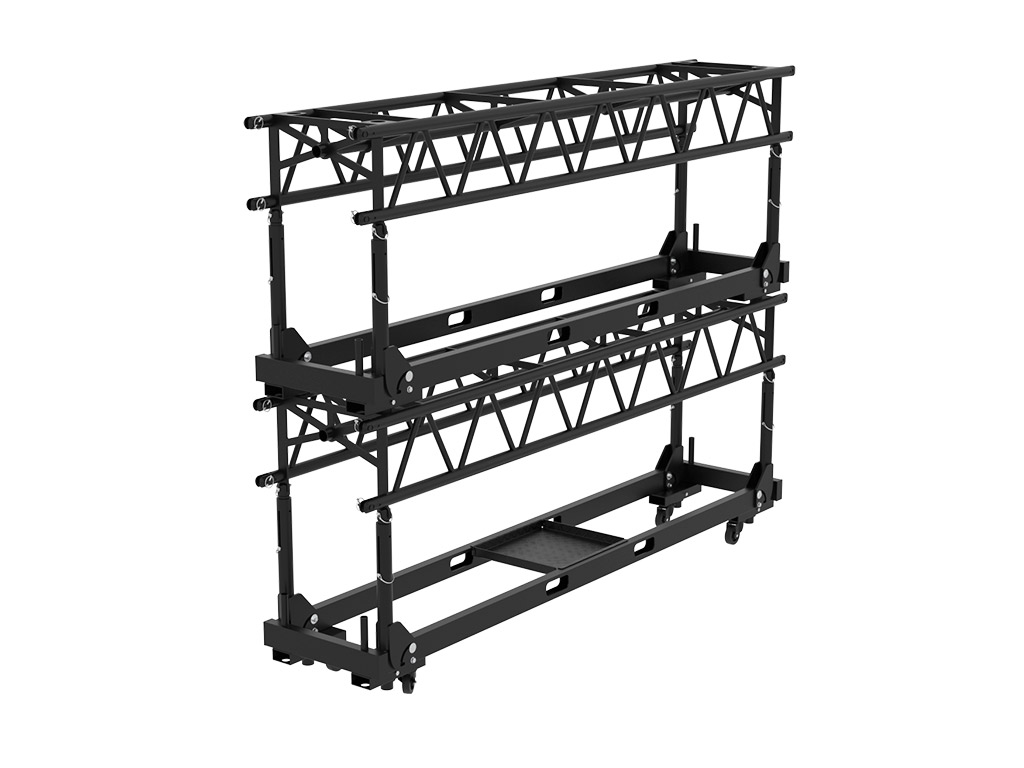

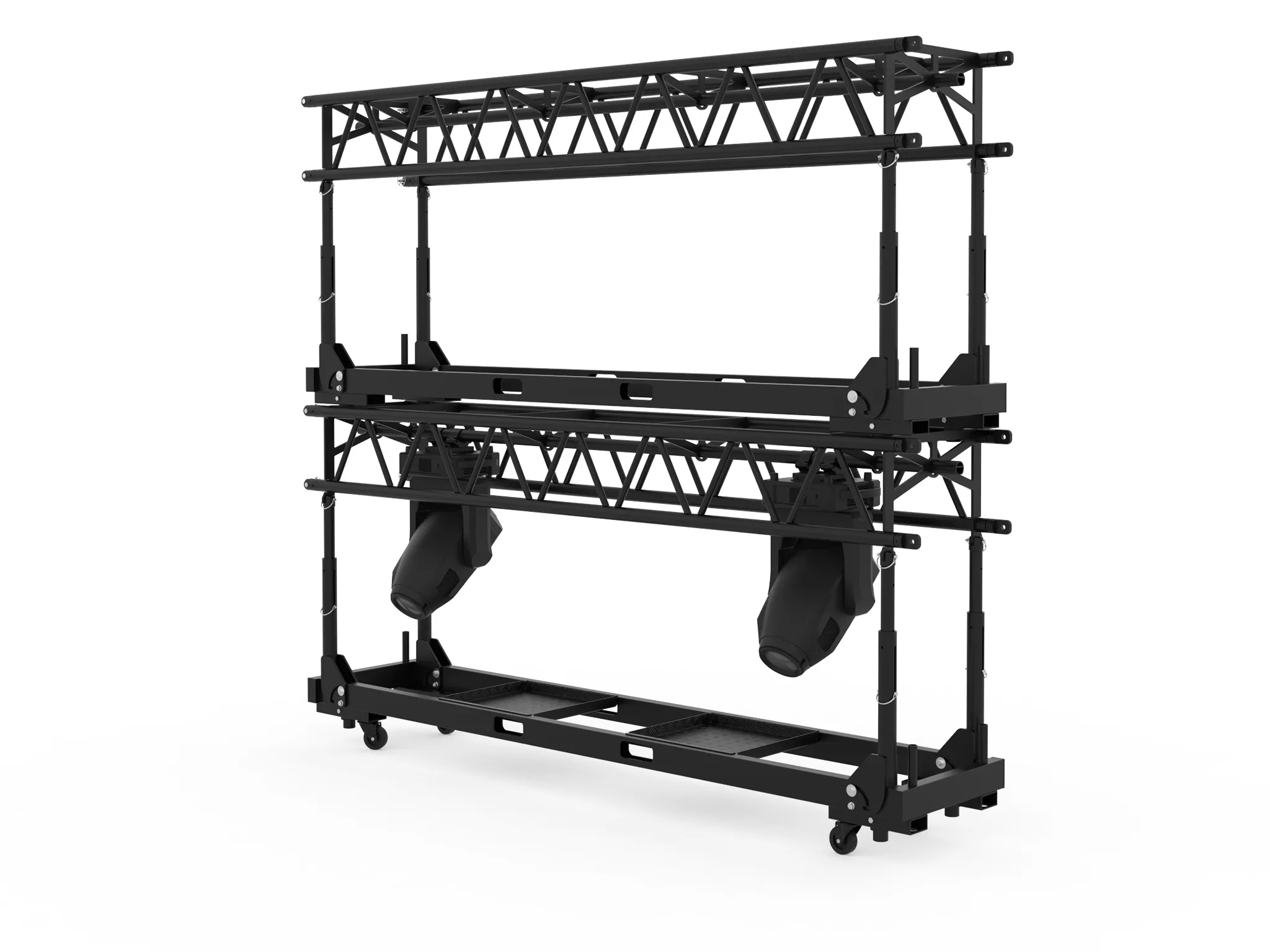

Pre-Rig truss. 3 m length. Compatible with FPR CART system

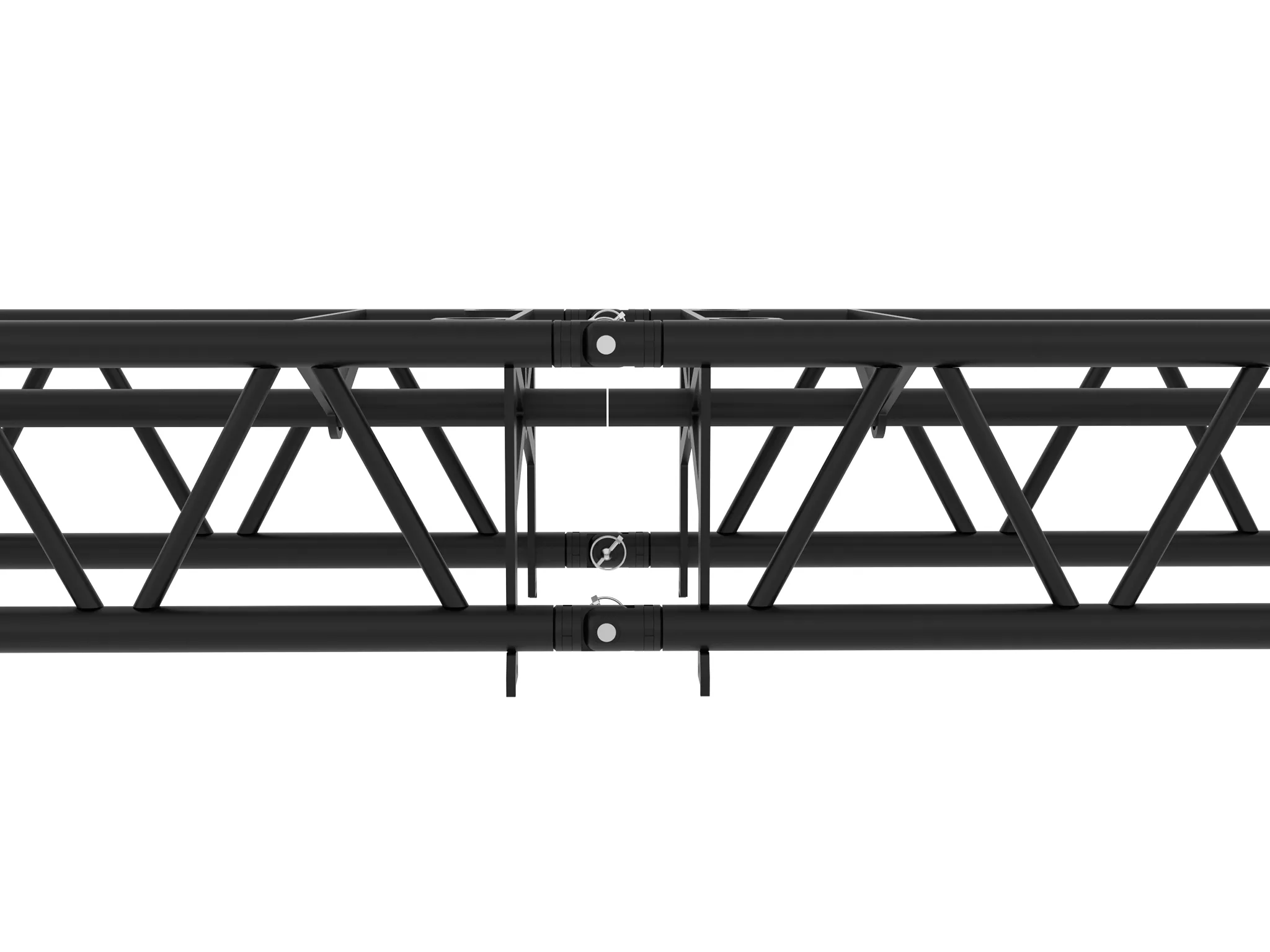

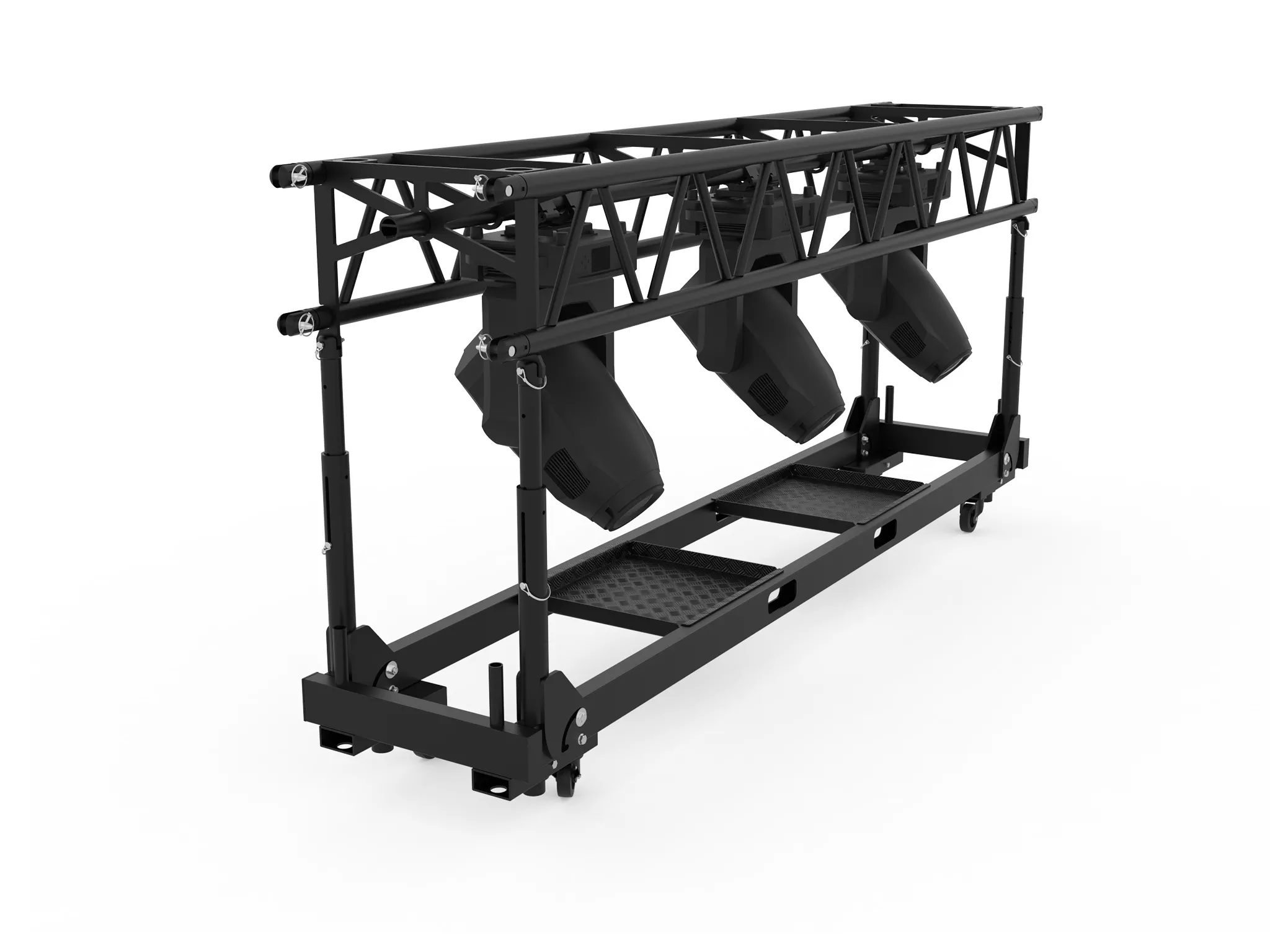

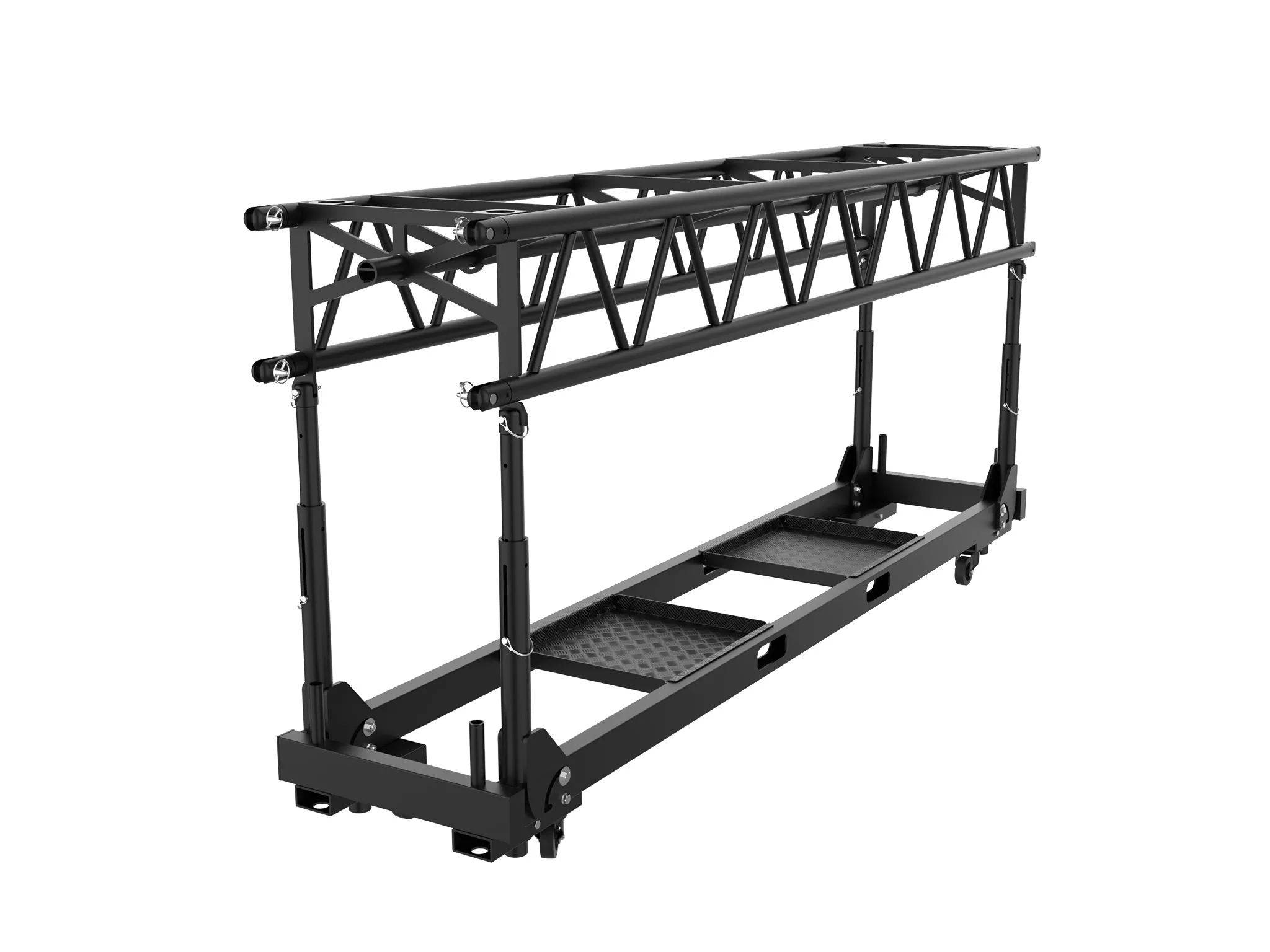

FPR TRUSS is an innovative element that makes it easy to assemble lighting systems and move them around a stage, mounting or removing them without the need to dismantle all the luminaires. FPR TRUSS offers a completely open bottom side, facilitating the mounting of moving heads and LED screens. Its lower center tube and extendable legs (adjustable from 1.2 to 1.4 m) allow for greater flexibility in moving equipment. Adjustable connectors allow for angular positioning of trusses.




Share on

Features

  • Squared truss 540 x 305 mm

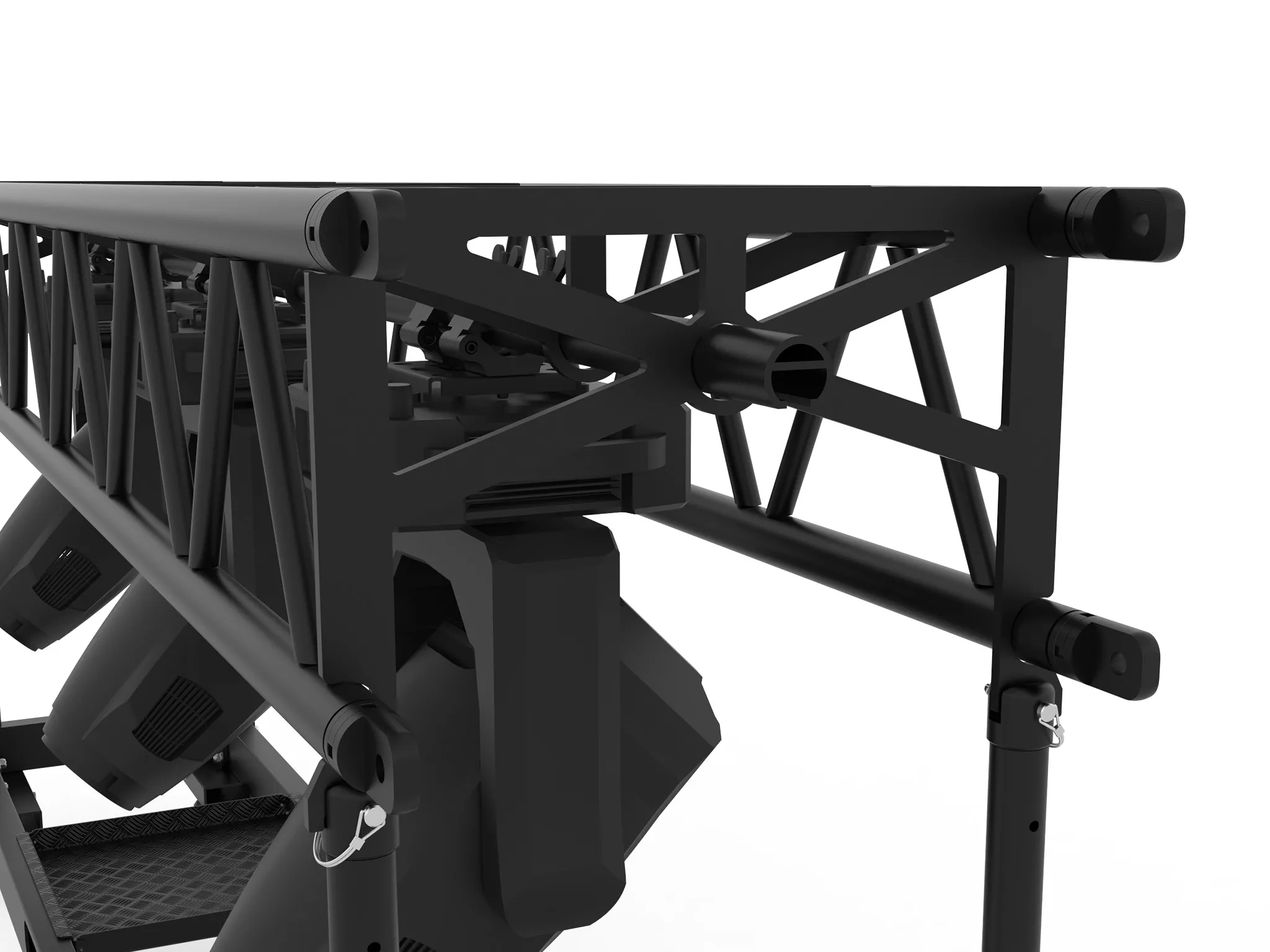

  • Lower centre tube for luminaires fixation
  • Open bottom side
  • Available in silver or black color
Connection typeFolding height-adjustable forks
Section540 x 305 mm
Main Tube Section50 x 4 mm
Braces Section25 x 3 mm
Weight2,39 m 38,14 Kg, 3 m 41,35 Kg, 15,15 Kg/m
Length2,39 m / 3 m
MaterialAluminium
Main Tube AlloyEN AW 6082 T6
Braces AlloyEN AW 6082 T6
  Datasheet		Download
