MK 37 2

Audio signal cable




Share on

Features

  • XLR 3 male to female.
  • Mono. Balanced.
  • 6 m length
  • Black.
TypeAudio signal
ConnectionsXLR 3 male - XLR 3 female
Length6 metros/ 6 m
Diameter6 mm
AWG24
Conductors2 x 0.22 mm2 + malla/ 2 x 0.22 mm2 + shield
Threads per conductor28 x 0.10 mm
Conductor insulationPE 1.40 mm
Shield80 hilos de cobre de 0.10 mm en espiral/ 80 copper wires of 0.10 mm coiled
Shield factor95%
Temperature range-20 ºC to 70 ºC
Conductor capacitance68 pF/m
Shield capacitance130 pF/m
Conductor resistance53 Ohm/Km
Shielding resistance25 Ohm/Km
Insulation resistance> 1 GOhm/Km
Characteristic impedance100 Ohm
ColourBlack

So far, there are no questions related to this product.

Register to be able to ask a question about this product.

I accept terms and conditions regarding the treatment of my data.Make the question

Related

  • MK 35 2
    Audio signal cable. XLR3 female - XLR3 male. 2 wires + shield. 3 metres. Black.
  • MK 38 2
    Audio signal cable. XLR3 male - XLR3 female. 2 wires + shield. 20 metres. Black.

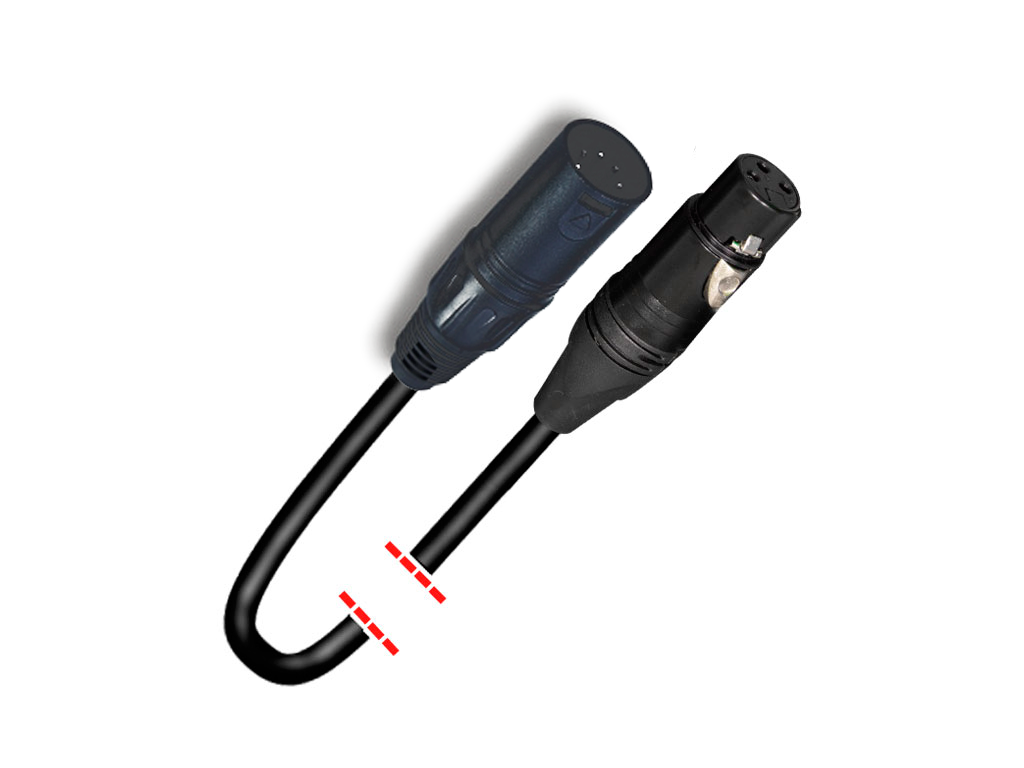

  • MK 125 DMX
