Structural

GS 130 700

Structural tower

Structural tower with EC30 L truss mast for a maximum working height of 7m and with a capacity of 750 Kg in manual lifting version. To anchor the truss to the tower it is necessary to acquire the accessory ATR-308 or ATR-30845, depending on the truss to be used. Supplied for a height of 7 meters, possibility of adding 1 additional truss section for a maximum height of 8 meters. Silver or Black is available.

Maximum Load
750kg/2645.55lb
Folded Height
1.35m/4.43ft
Maximum Height
8m/22.96ft
Weight
7195kg./7429.9lb.



Share on

Features

  • EC30 L truss mast.
  • Safety system with locking sling.
  • Easy assembly.
MaterialAluminum and steel
Maximum height8 m / 22,96 ft
Folded Height1,35 m/ 4,43 ft
No. of sections5 tramos: 1xEC30058+2xEC301L+2xEC302L/ 5 sections: 1xEC30058+2xEC301L+2xEC302L
Maximum Load750 kg/ 1653,47 lb
Max load (mechanism mode)2645,55 lb
Elevation systemManual drive (Winch)
Cable diameter7 mm / 0,28 in
Unfolded base2,1 x 2,1 m/ 6,89 x 6,89 ft

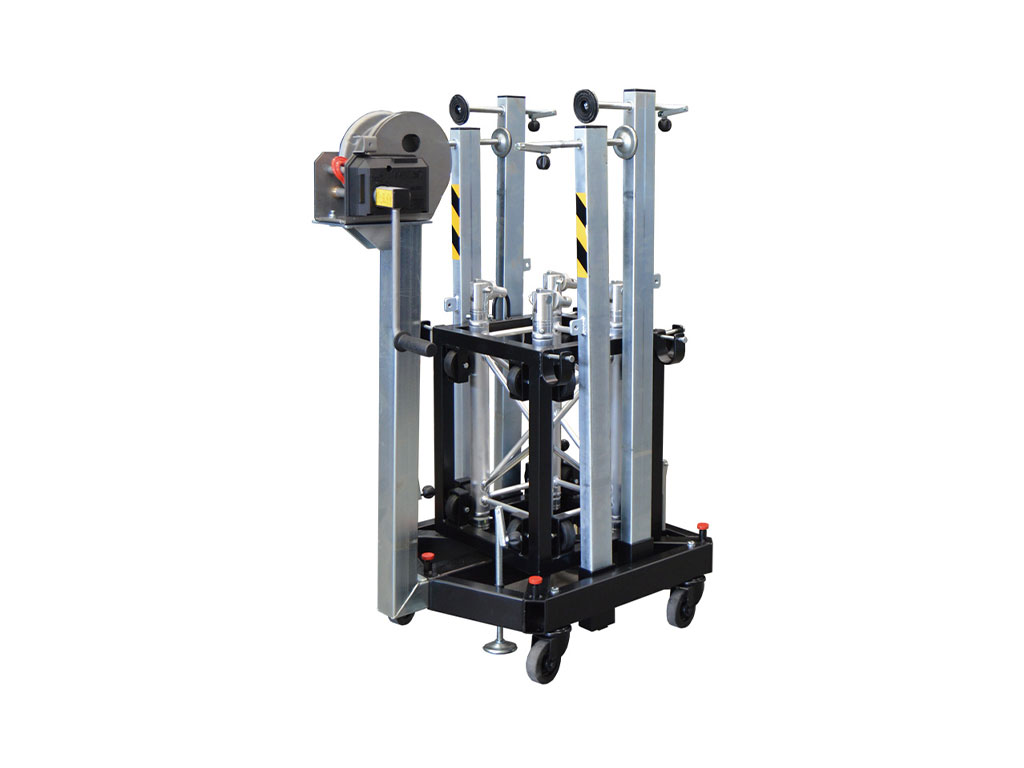

Folded Base1,05 x 0,63 m / 3,44 x 2,07 ft
Security systemsT110ESB
Weight7 m: 195 kg/ 7m: 429,9 lb;
Aluminum thickness2 mm / 0,078 in
Main tube diameter50 mm / 1,96 in
Down tube diameter16 mm/ 0,63 in
ColourBlack and silver
Section dimensions30 x 30 cm/ 11,81 x 11,81 in
Compatible accessoriesT110-SPM / T110-SPMPA / ATR-308 / ATR-30845
  Manual		Download
  Certificate		Download
