Rectangular

FK76R H

Rectangular truss. FK SERIES

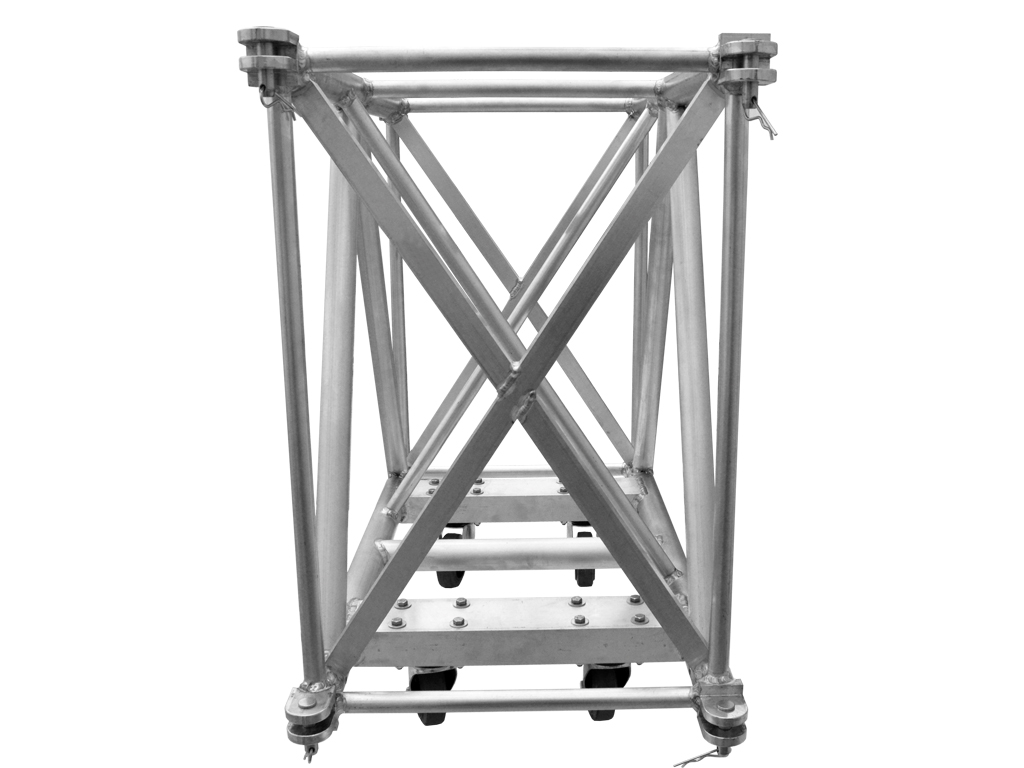

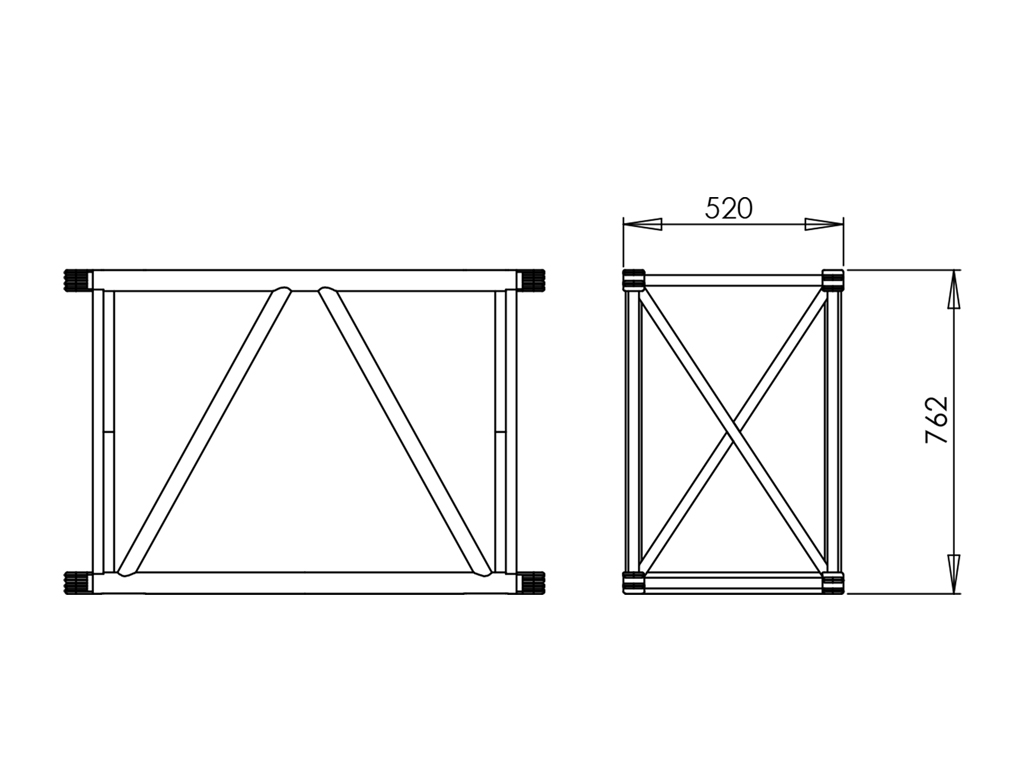

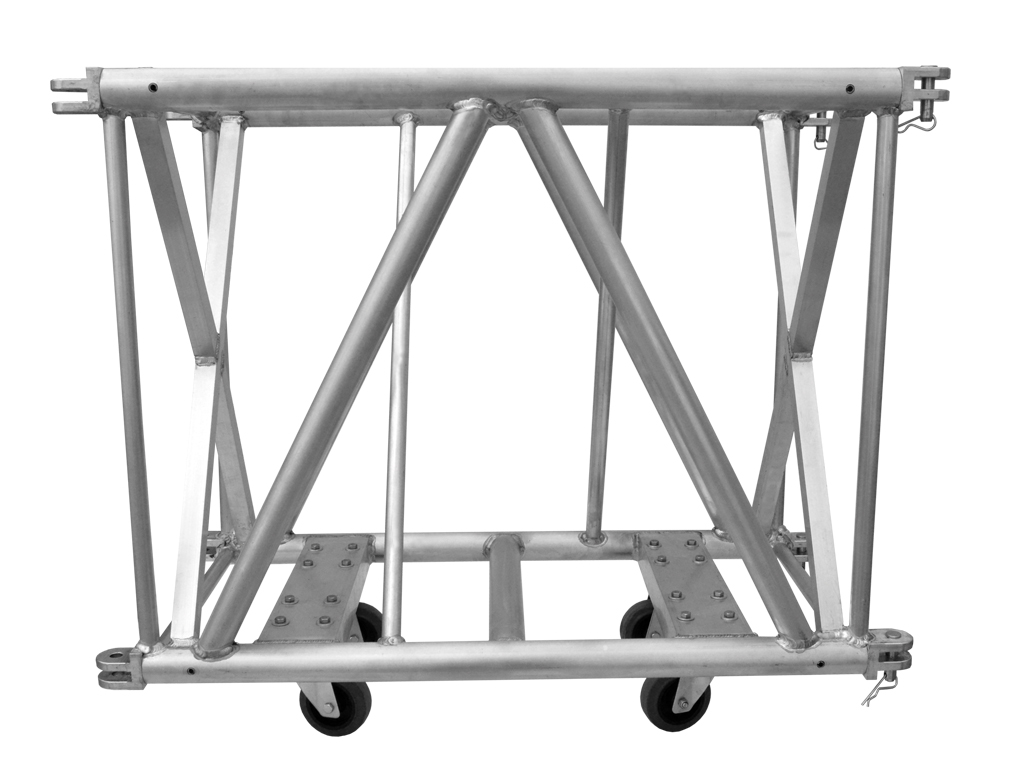

Section of rectangular aluminum truss structure 52 cm wide and 76 high, manufactured with a main tube of 50 mm in diameter and 4 mm in thickness, and auxiliary tube of 38 mm in diameter and 3 mm in thickness. Maximum load capacity. Highly resistant CHC76 pin and clip connection system. Available in sections of 1, 2 and 3 meters, and in silver or black. FK SERIES compatible.



Share on

Features

  • Standard dimensions: 3,28 / 6,56 / 9,84 ft
  • Other sizes available on request.
  • Available in aluminium and black.
  • Other colours available on request.
Main Tube Section50 x 4 mm
Main Tube AlloyEN AW 6082T6
Braces Section38 x 3 mm
Braces AlloyEN AW 6082T6
Weight22,9 kg/m/ 15,388 lb/ft
Surface Area Complete Truss23,12 cm2/ 3,5836 in2
Coupling SystemCBC60
1.64 feet - Weight15,8 kg / 34,833 lb
3.28 feet - Weight27,4 kg / 60,407 lb
6.56 feet - Weight44,6 kg / 98,326 lb
9.84 feet - Weight60,8 kg / 134,041 lb
1.64 feet - Volume0,1981 m3/ 6,9958 ft3
3.28 feet - Volume0,3962 m3/ 13,9917 ft3
6.56 feet - Volume0,7925 m3/ 27,9869 ft3
9.84 feet - Volume1,1887 m3/ 41,9785 ft3
  Certificate		Download
  Manual		Download
  Technical Data Image		Download
  Technical Data Image		Download
  Application Tip		Download

So far, there are no questions related to this product.

Register to be able to ask a question about this product.

I accept terms and conditions regarding the treatment of my data.Make the question
