Rectangular
FK35R H
New Products!

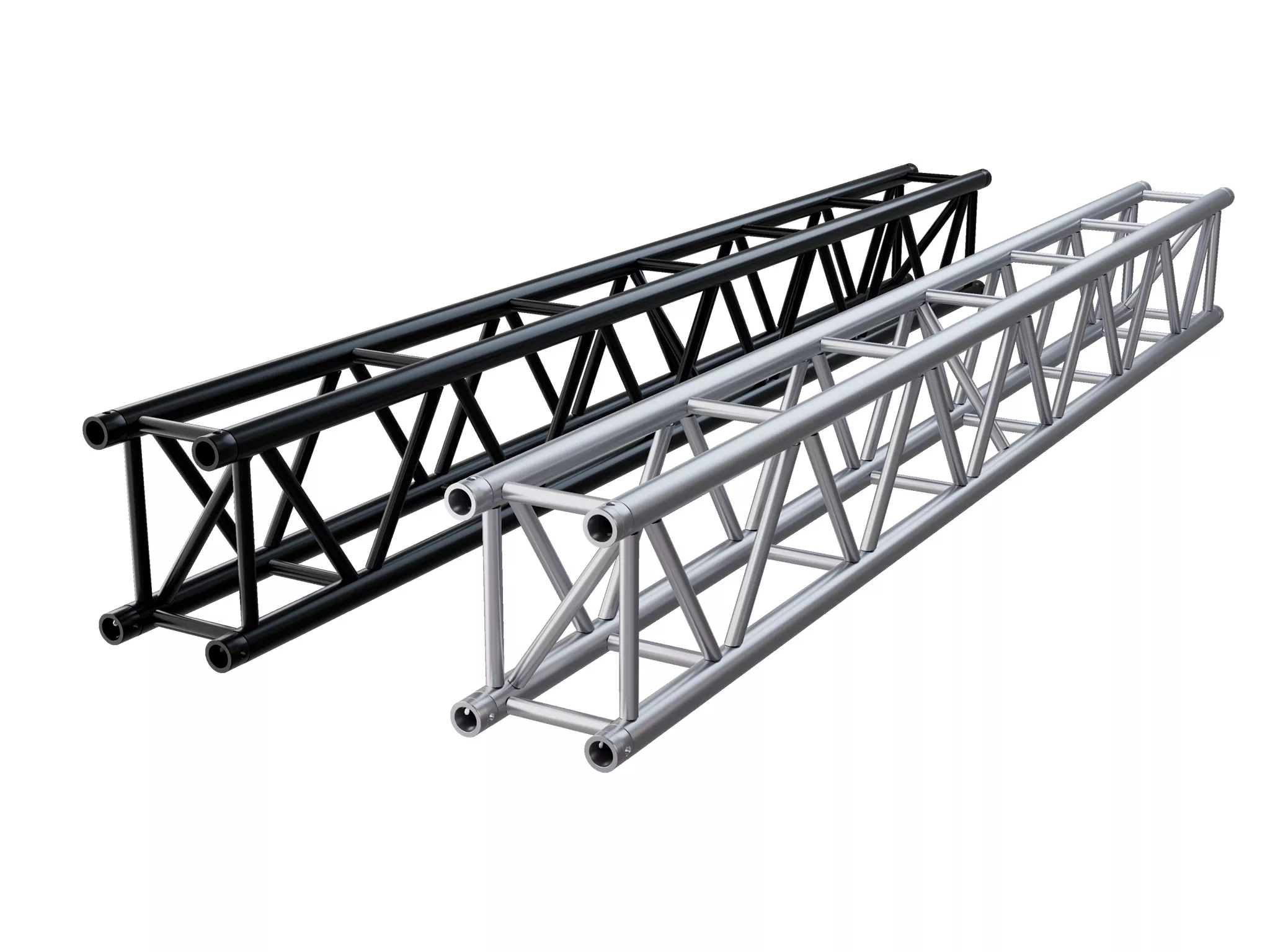

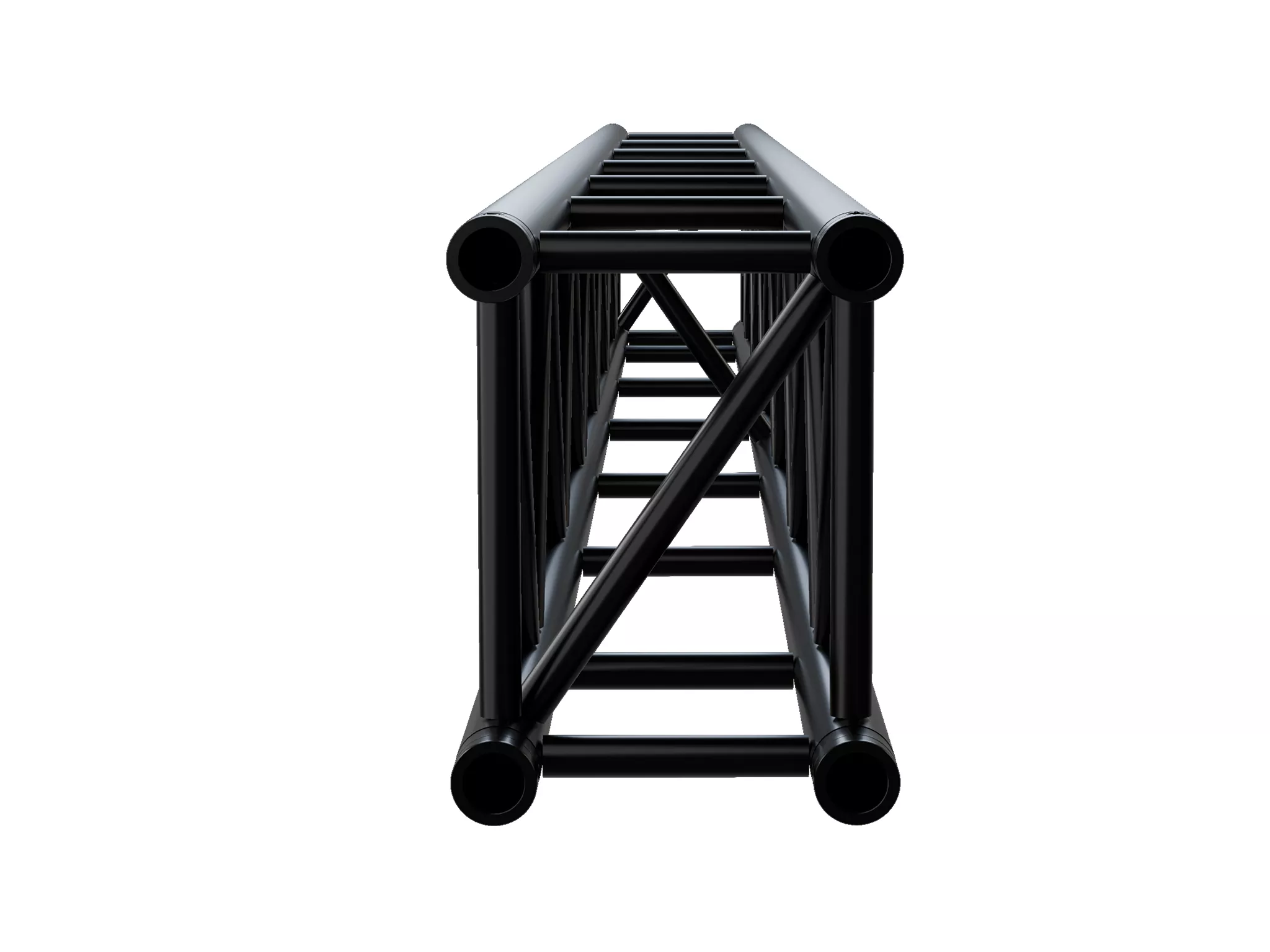

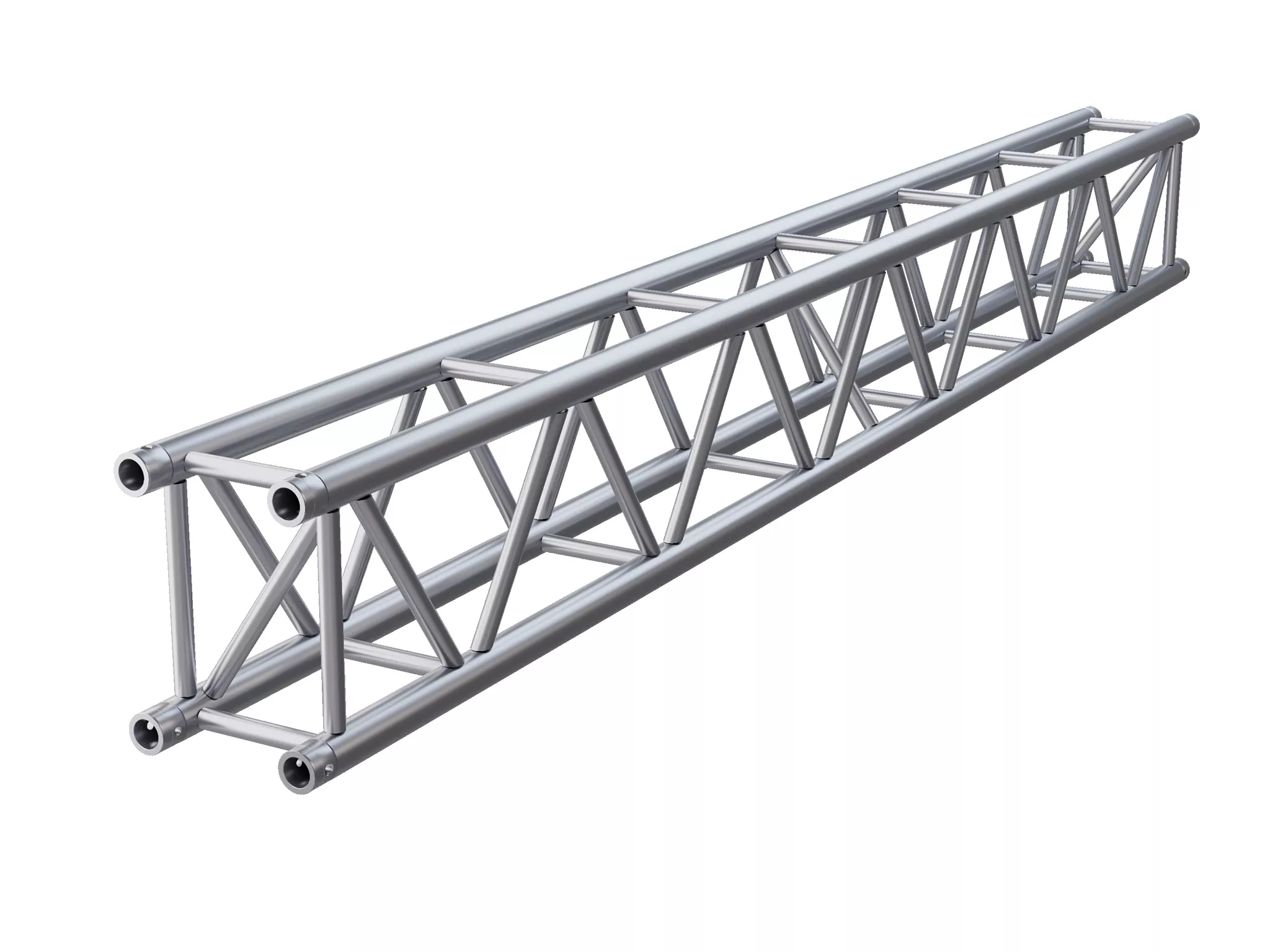

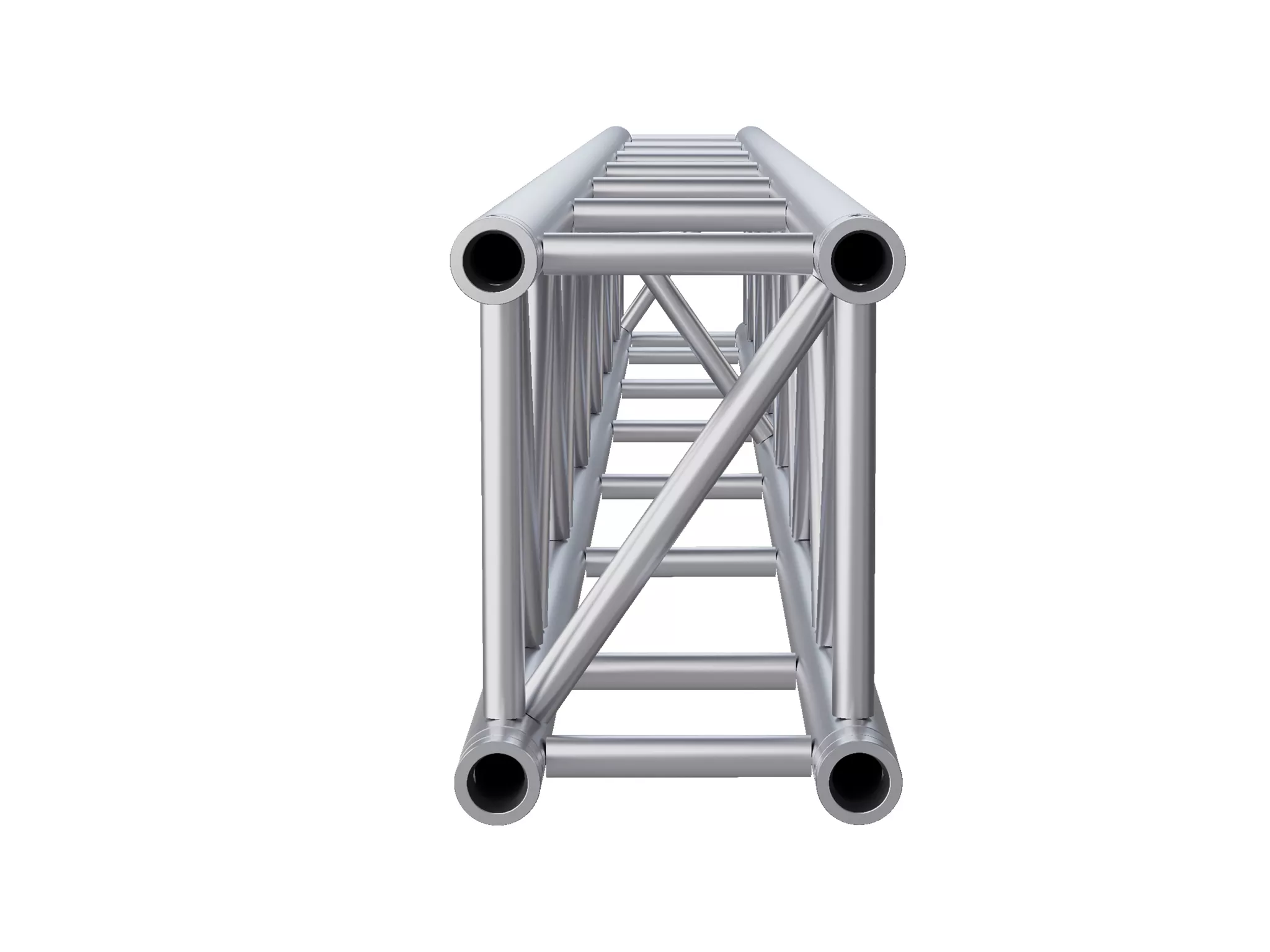

Rectangular truss. F SERIES.
Rectangular aluminium truss section measuring 350 mm high and 260 mm wide, manufactured with a main tube measuring 50 mm in diameter and 4 mm thick, and an auxiliary tube measuring 25 mm in diameter and 3 mm thick. Particularly suitable for assemblies with high load capacities. CBC50 conical connection system. Available in sections of 0.5 m, 1 m, 2 m, and 3 m, and in silver or black. Includes 4 double cones, 4 pins, and 4 “R” safety clips. Compatible with F SERIES.
Share on
Features
- Standard sizes: 0.5 / 1 / 2 / 3 m.
- Other sizes available upon request.
- Available in silver or black.
- Other colours available upon request.
| Main Tube Section | 50x4 mm |
| Main Tube Alloy | EN AW-6082 T6 |
| Braces Section | 25x3 mm |
| Braces Alloy | EN AW-6082 T6 |
| Weight | 9.7 kg/m |
| Surface Area Complete Truss | 23,12 cm2/ |
| Coupling System | CBC50 |
| 1.64 feet - Weight | 5,77 kg |
| 3.28 feet - Weight | 9,78 kg |
| 6.56 feet - Weight | 17,79 kg |
| 9.84 feet - Weight | 25,91 kg |
| 1.64 feet - Volume | 0.0361 m3 |
| 3.28 feet - Volume | 0,073 m3 |
| 6.56 feet - Volume | 0,145 m3/ |
| 9.84 feet - Volume | 0,217 m3 |
| Colour | Black / White |
