Parallel
FK30P CT390

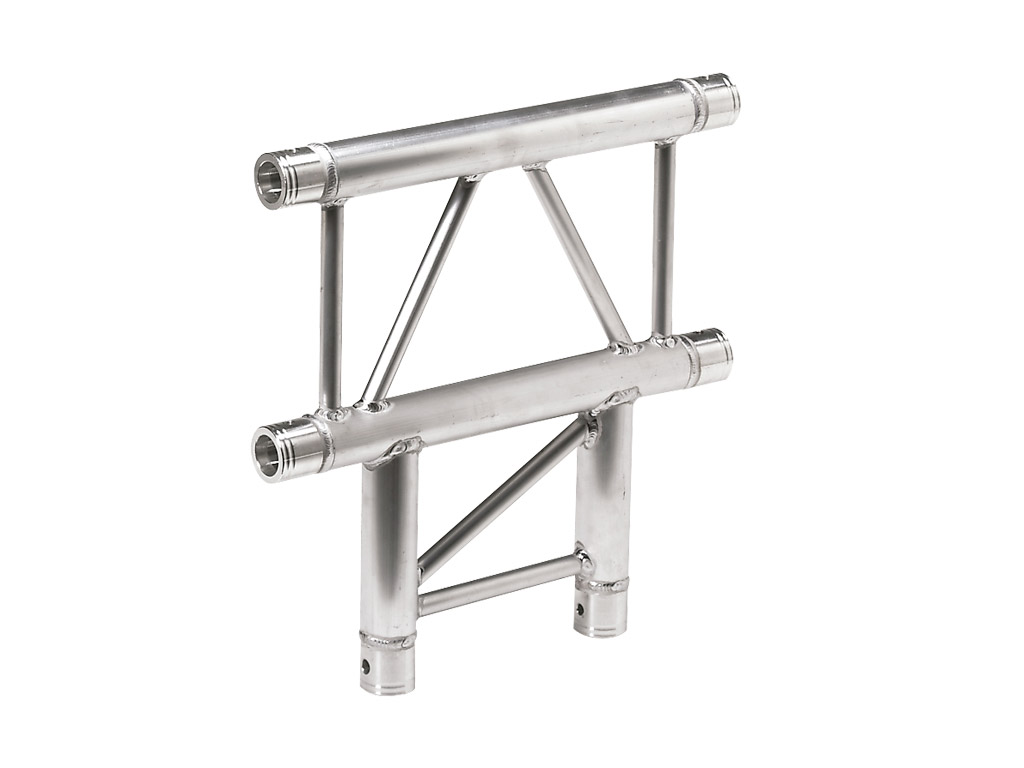

T corner. Horizontal. FK SERIES
Aluminium parallel truss structure section of 30 cm on each side. To form T connections horizontally. 3 way. Manufactured with main tube of 50 mm diameter and 2 mm thick, and auxiliary tube of 16 mm diameter and 2 mm thick. Silver or black colour. FK SERIES compatible.
Share on
Features
- Available in silver or black colour.
- Other colours available on request.
- Compatible with ES 30 truss.
- Connections included.
| Main Tube Section | 50 x 2 mm |
| Main Tube Alloy | EN AW 6082T6 |
| Braces Section | 16 x 2 mm |
| Braces Alloy | EN AW 6082T6 |
| Surface Area Complete Truss | 6,03 cm2/ 0,9347 in2 |
| Coupling System | CBC50F |
| No. ways | 3 |
| Height | 50 mm/ 1,97 in |
| Width | 700 mm/ 27,24 in |
| Depth | 500 mm/ 19,69 in |
Certificate | Certificado CE - FK30P |  | Download |
