Rectangular

FK3040R H

New Products!

Rectangular truss. F SERIES

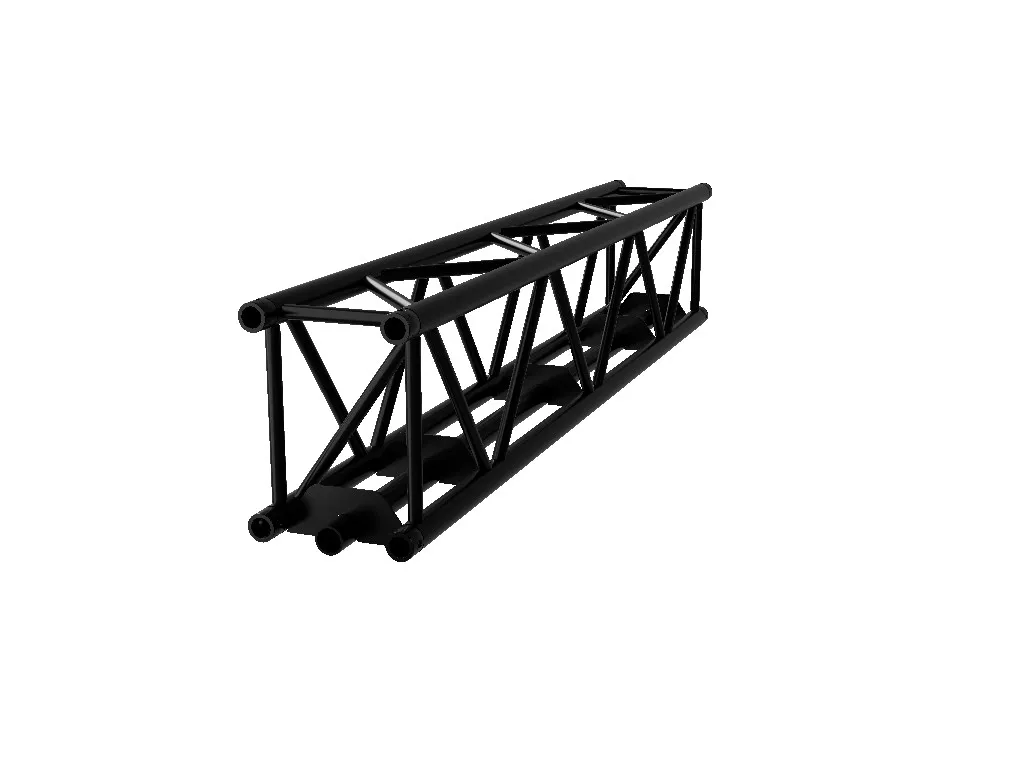

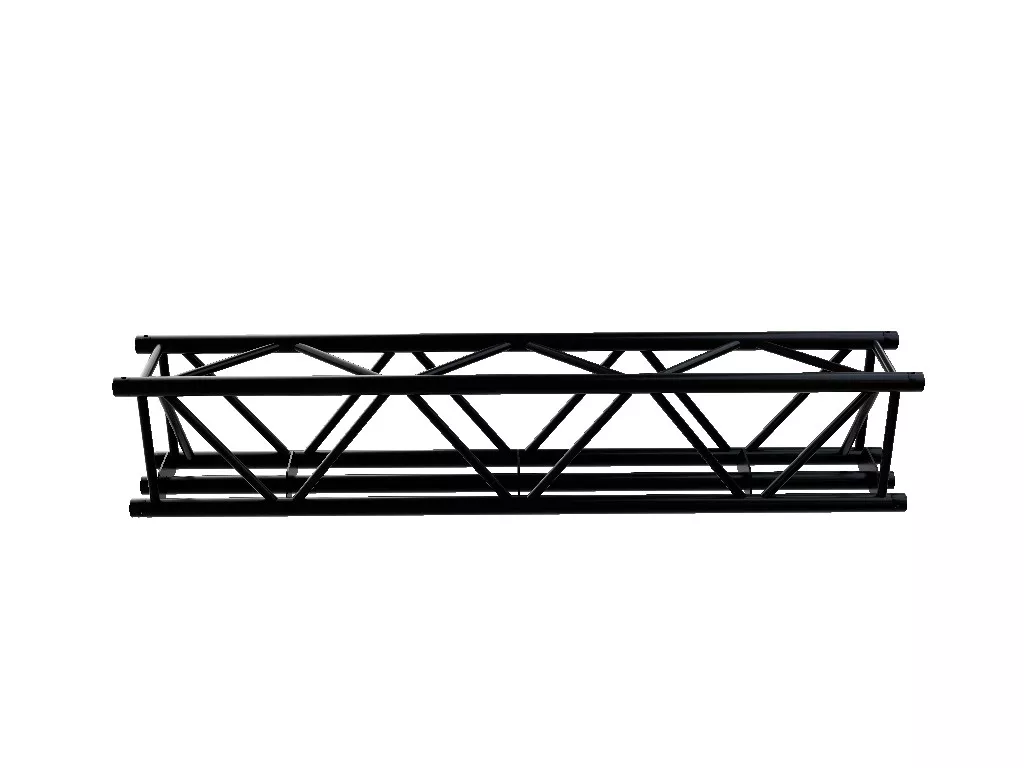

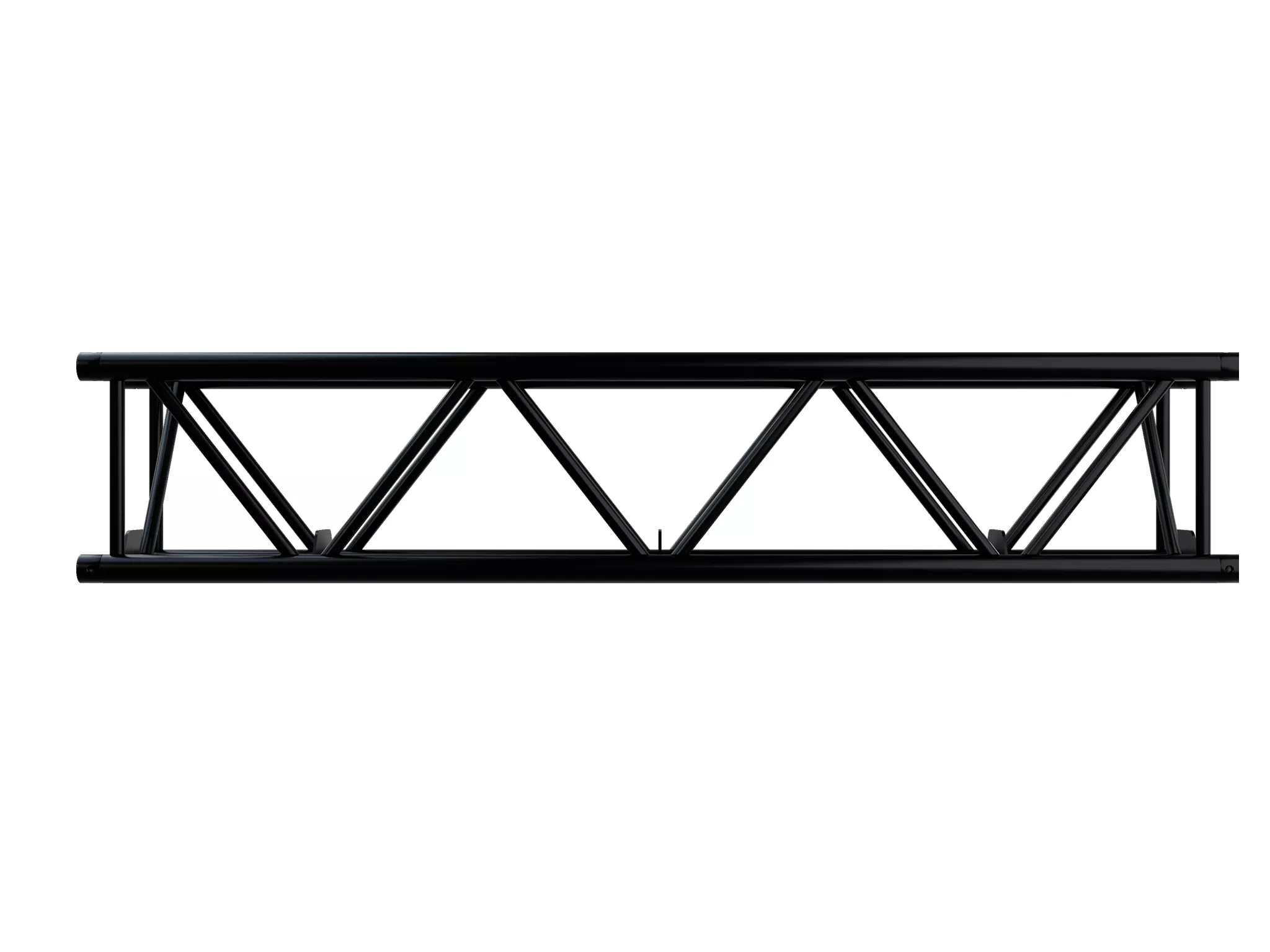

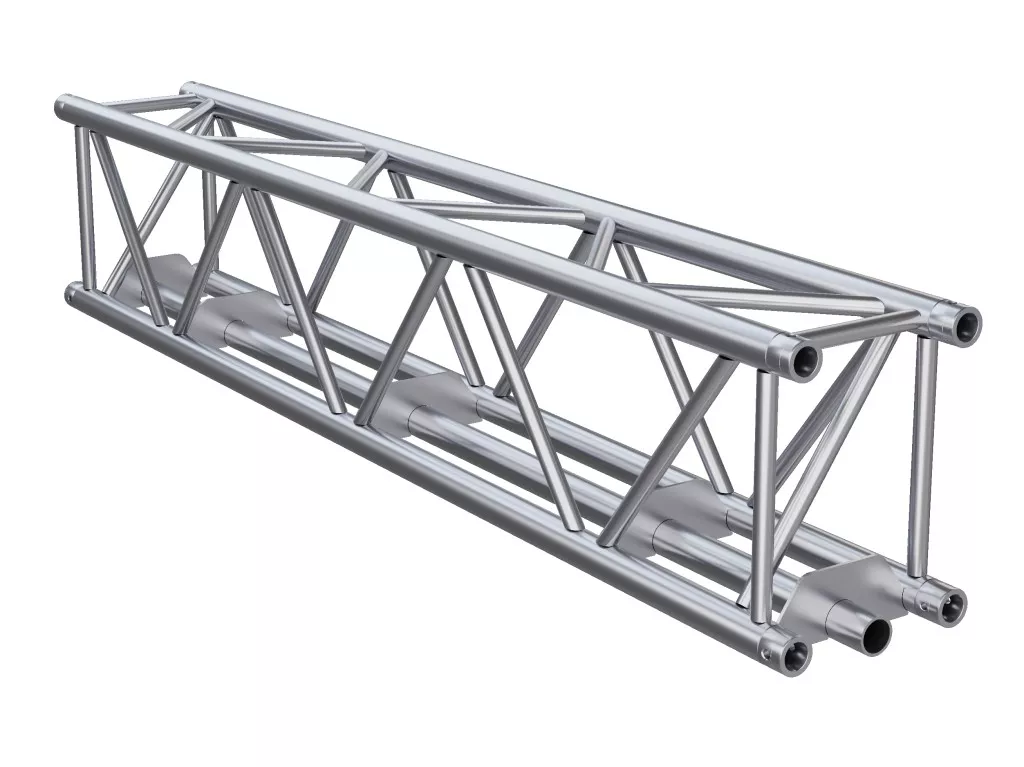

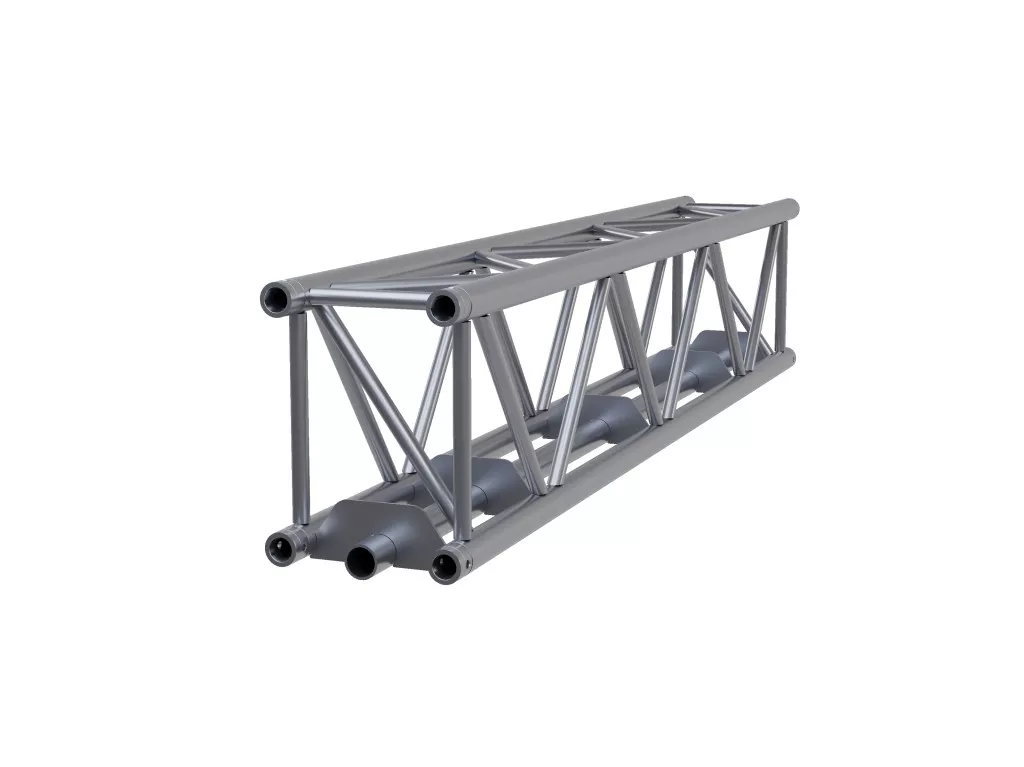

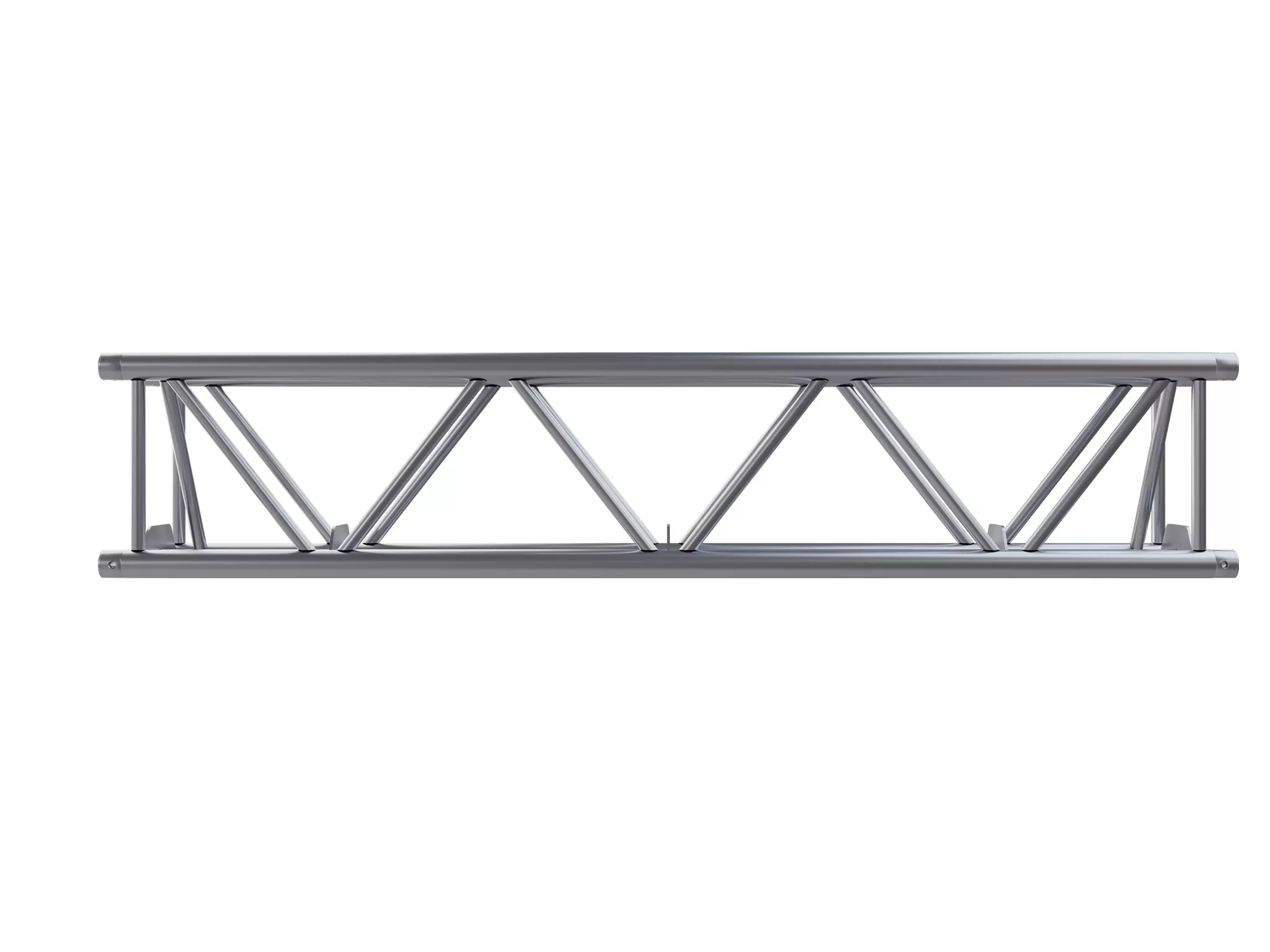

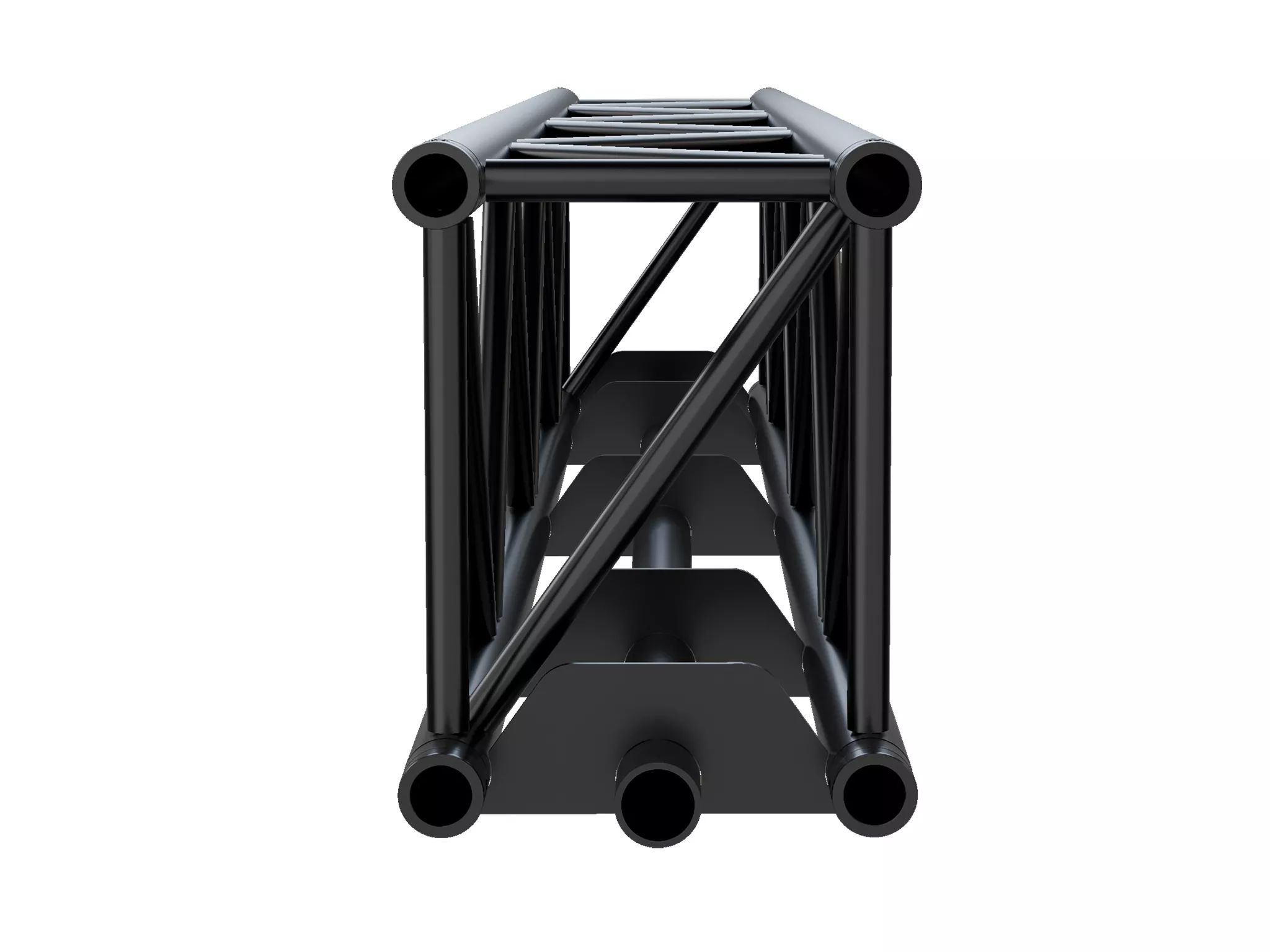

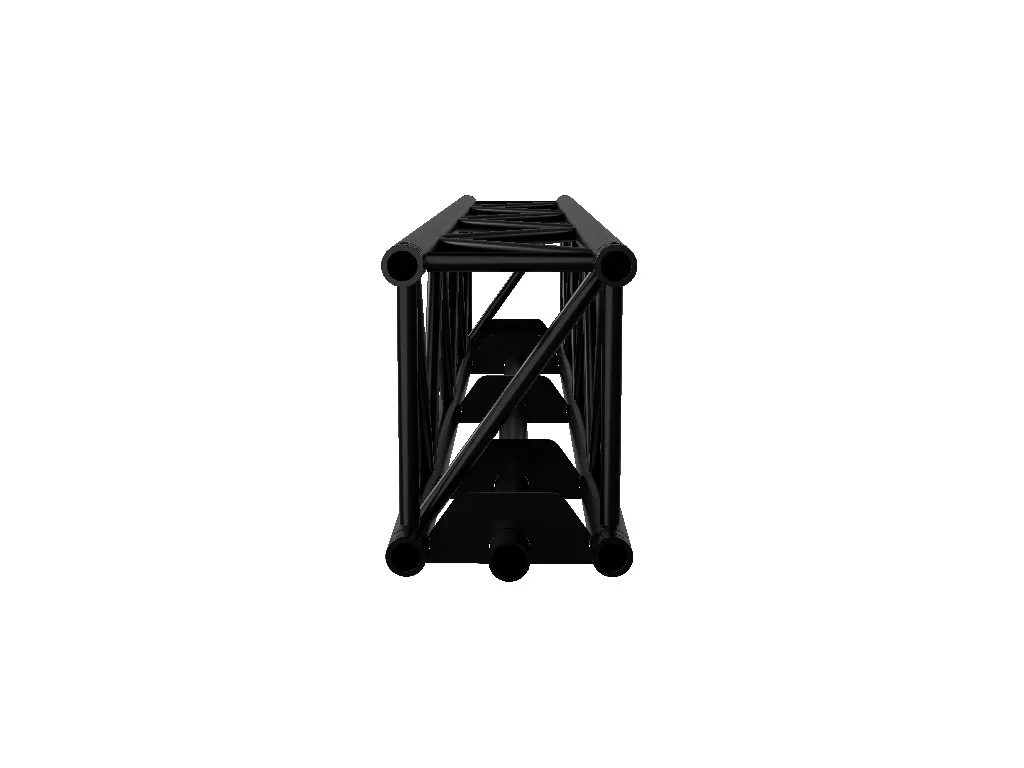

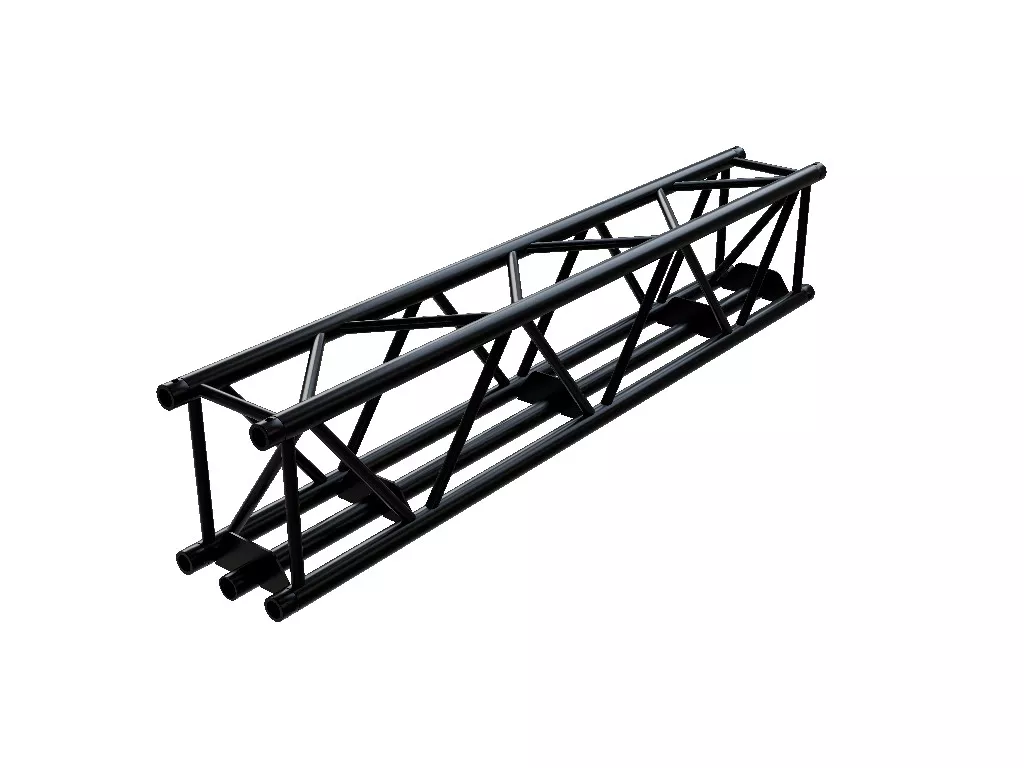

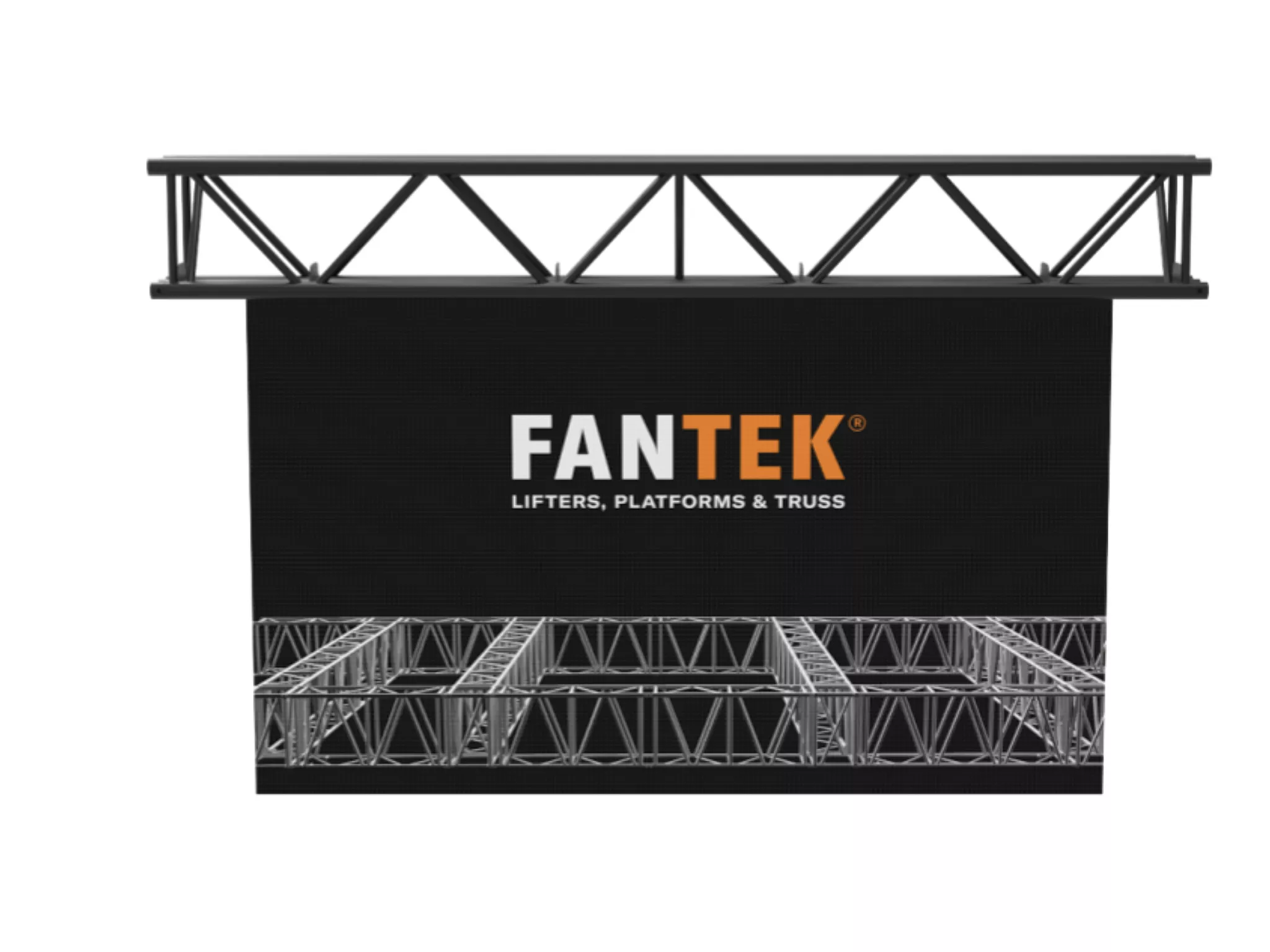

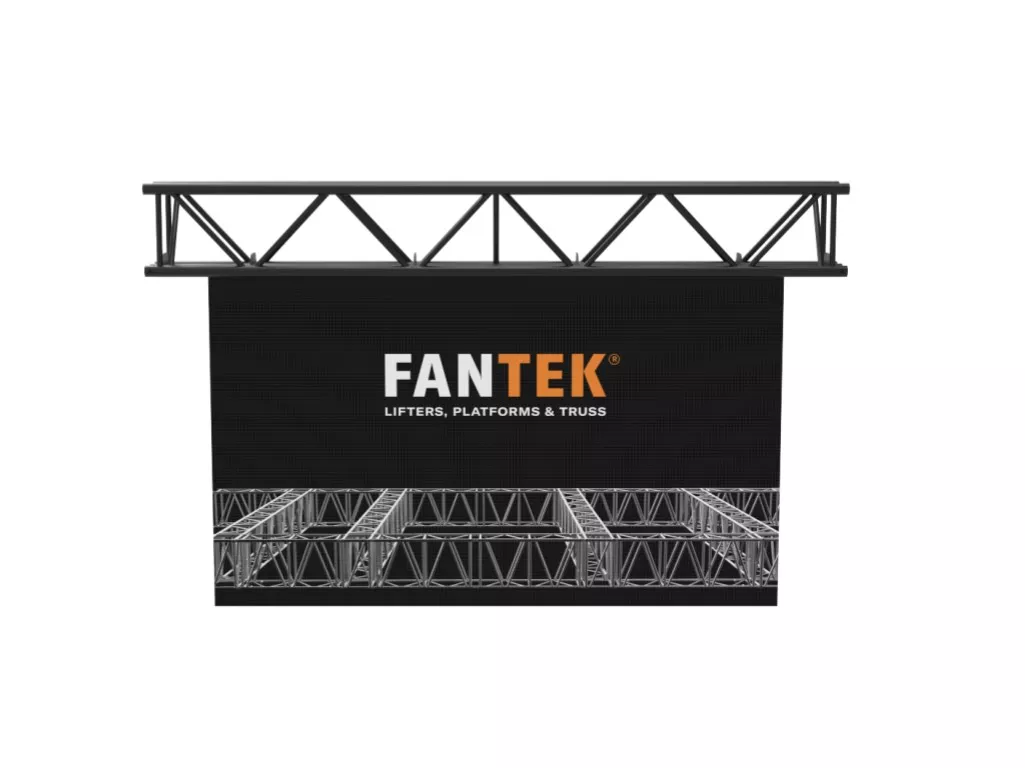

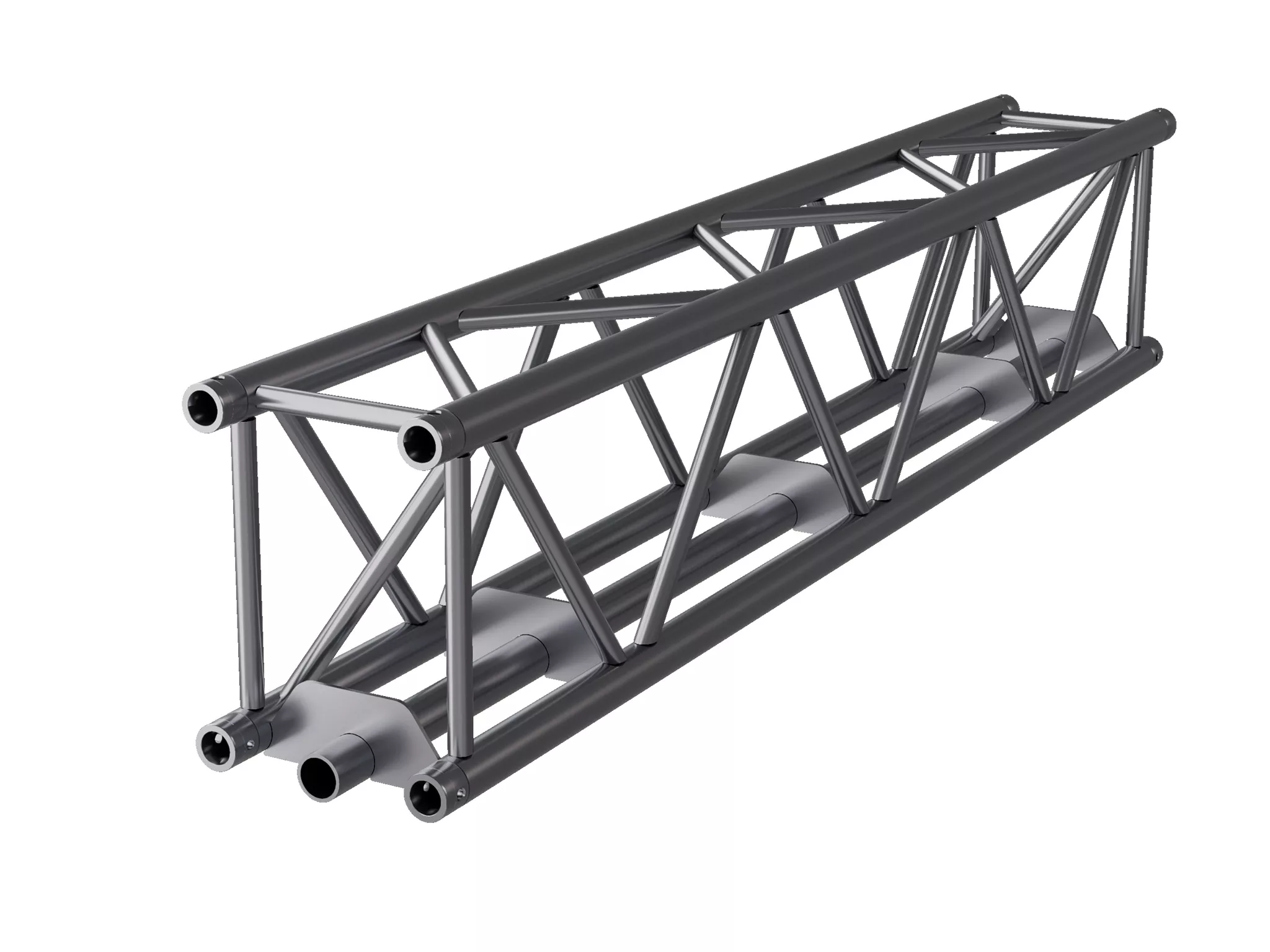

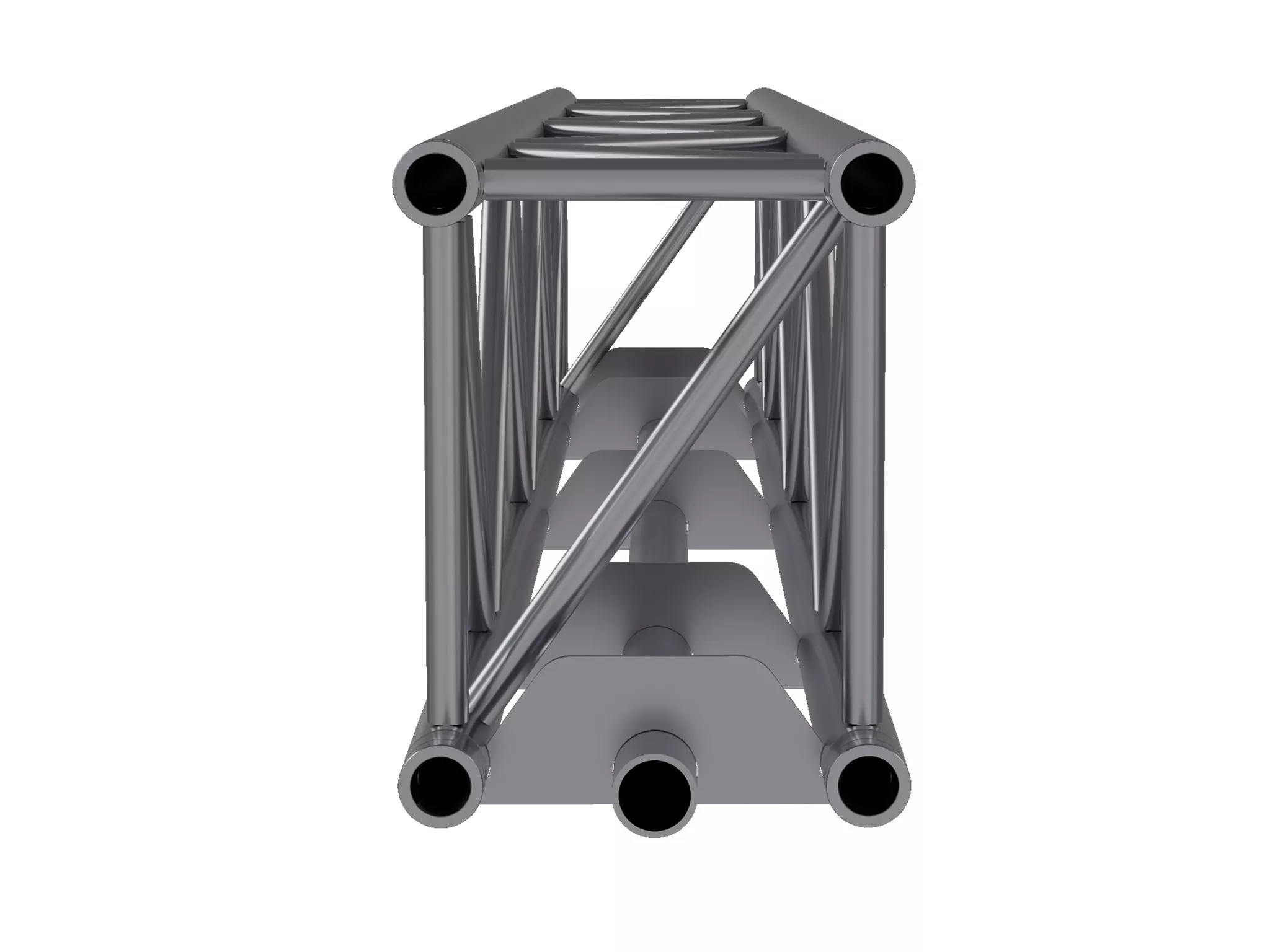

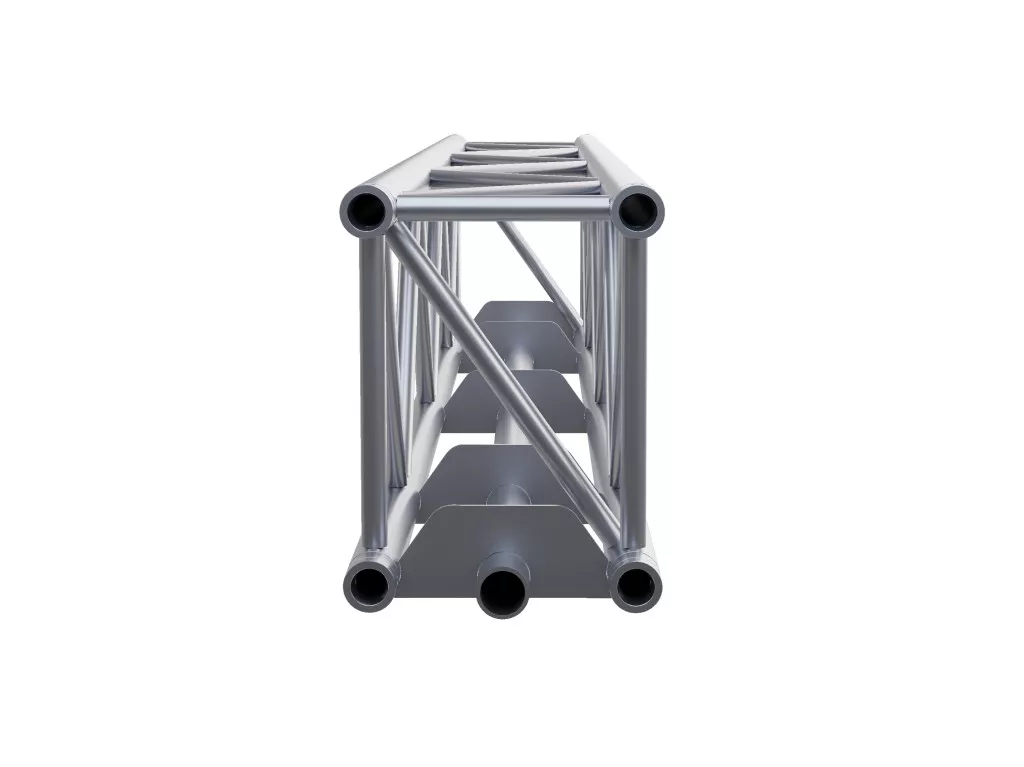

Section of aluminium square truss structure measuring 400 mm high and 300 mm wide, manufactured with main tube of 50 mm in diameter and 4 mm thick, and auxiliary tube of 25 mm in diameter and 3 mm thick. Especially suitable for assemblies with led screens. CBC50 conical connection system. It is available in 0.5 m, 1 m, 2 m, and 3 m lengths, and in silver or black. Includes 4 double cones, 4 pins, 4 threaded pins and 4 'R' safety clips. F SERIES compatible.



Share on

Features

  • Standard sizes: 0.5 / 1 / 2 / 3 m.
  • Other sizes available upon request.

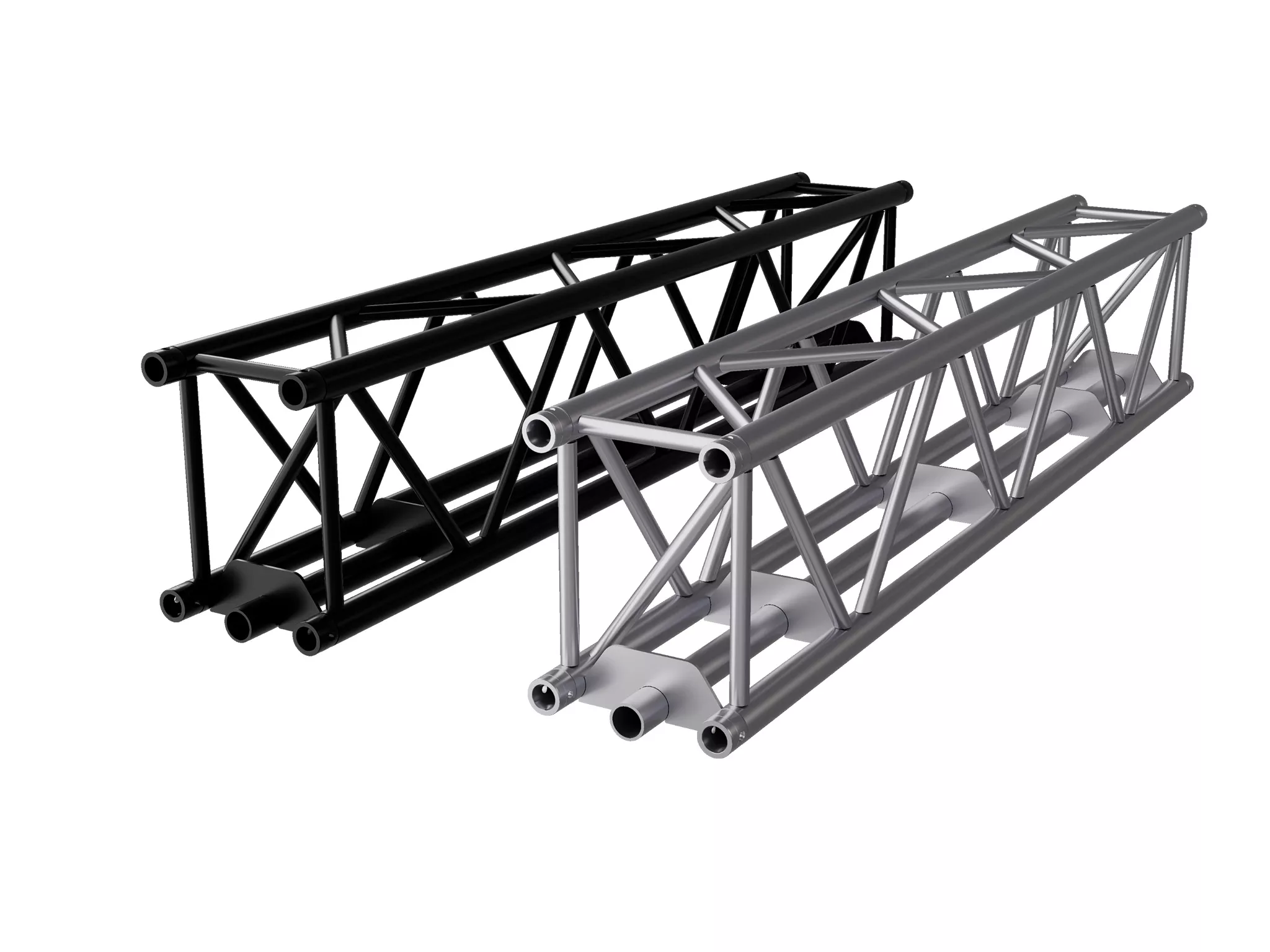

  • Available in silver or black.
  • Other colours available upon request.
Main Tube Section50x4 mm/ 50x4mm
Main Tube AlloyEN AW 6082T6
Braces Section25x3 mm/ 25 x 3 mm
Braces AlloyEN AW 6082T6
Weight12,05 kg/m
Surface Area Complete Truss28,9 cm2
Coupling SystemCBC50
1.64 feet - Weight7,26 kg
3.28 feet - Weight12,61 kg
6.56 feet - Weight22,16 kg
9.84 feet - Weight31,96 kg
1.64 feet - Volume0,06 m3
3.28 feet - Volume0,12 m3
6.56 feet - Volume0,24 m3
9.84 feet - Volume0,36 m3
ColourSilver/Black
  Datasheet		Download

So far, there are no questions related to this product.

Register to be able to ask a question about this product.

I accept terms and conditions regarding the treatment of my data.Make the question
