Parallel

FK25P H

Parallel truss. FK SERIES

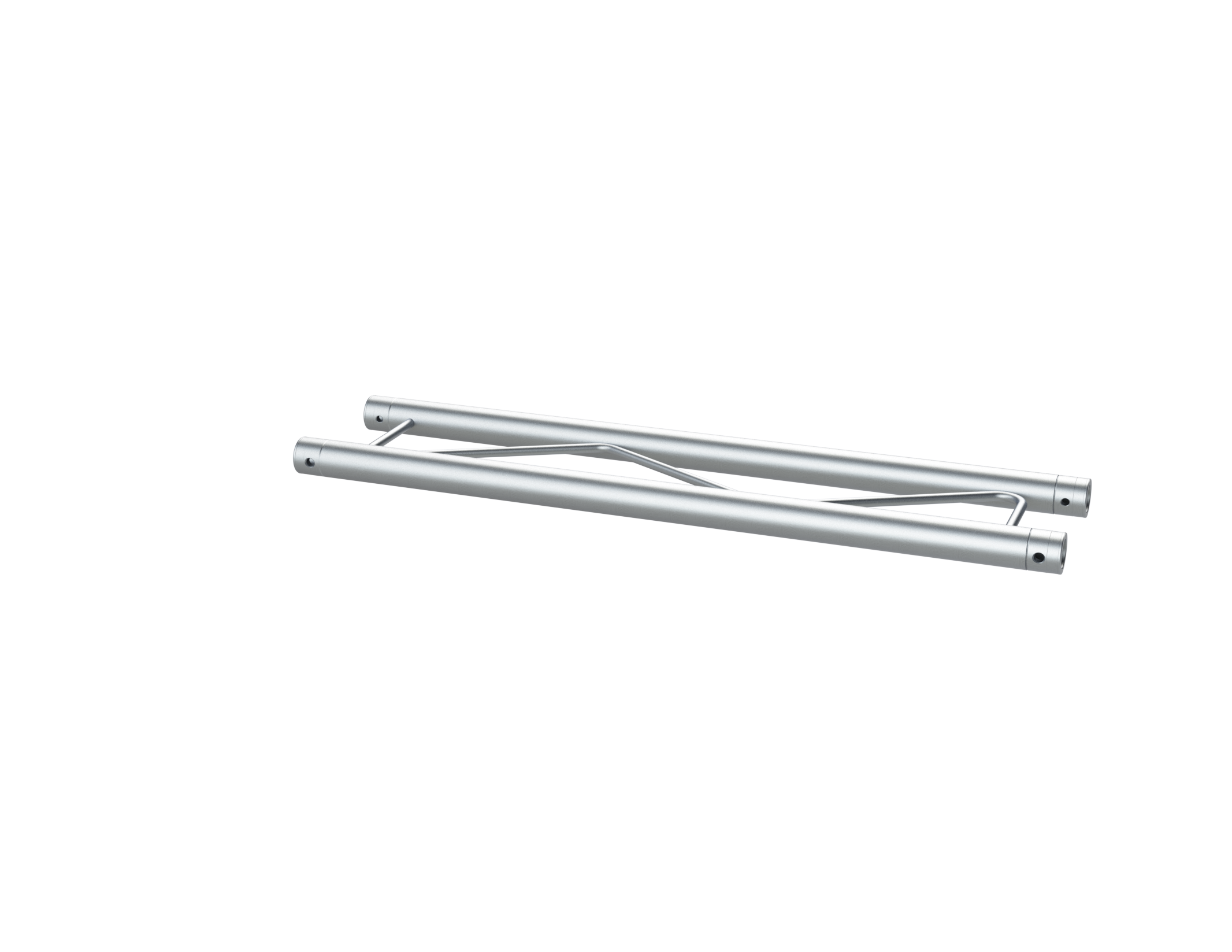

Section of 25 cm side aluminium parallel truss structure, manufactured with main tube of 50 mm in diameter and 4 mm in thickness, and auxiliary tube of 13 mm in diameter and 1.5 mm in thickness. Available in sections of 0.5, 1, 2 and 3 meters, and in silver or black. Includes 2 double cones, 2 pins, 2 threaded pins and 2 'R' safety clips. FK SERIES Compatible.



Share on

Features

  • Standard dimensions: 1,64 / 3,28 / 6,56 / 9,84 ft
  • Other sizes available on request.
  • Available in silver or black.
  • Other colours available on request.
Main Tube Section50 x 4 mm
Main Tube AlloyEN AW 6082T6
Braces Section13 x 1,5 mm
Braces AlloyEN AW 6060F22
Weight3,8 kg/m/ 2,553 lb/ft
Surface Area Complete Truss11,56 cm2/ 1,7918 in2
Coupling SystemCBC50F
1.64 feet - Weight2 kg/ 4,409 lb
3.28 feet - Weight3,6 kg/ 7,937 lb
6.56 feet - Weight7,6 kg/ 16,755 lb
9.84 feet - Weight11,2 kg/ 24,692 lb
1.64 feet - Volume0,00625 m3/ 0,2207 ft3
3.28 feet - Volume0,0125 m3/ 0,441 ft3
6.56 feet - Volume0,025 m3/ 0,883 ft3
9.84 feet - Volume0,0375 m3/ 1,324 ft3
