Parallel

FK25P

Parallel truss. FK SERIES

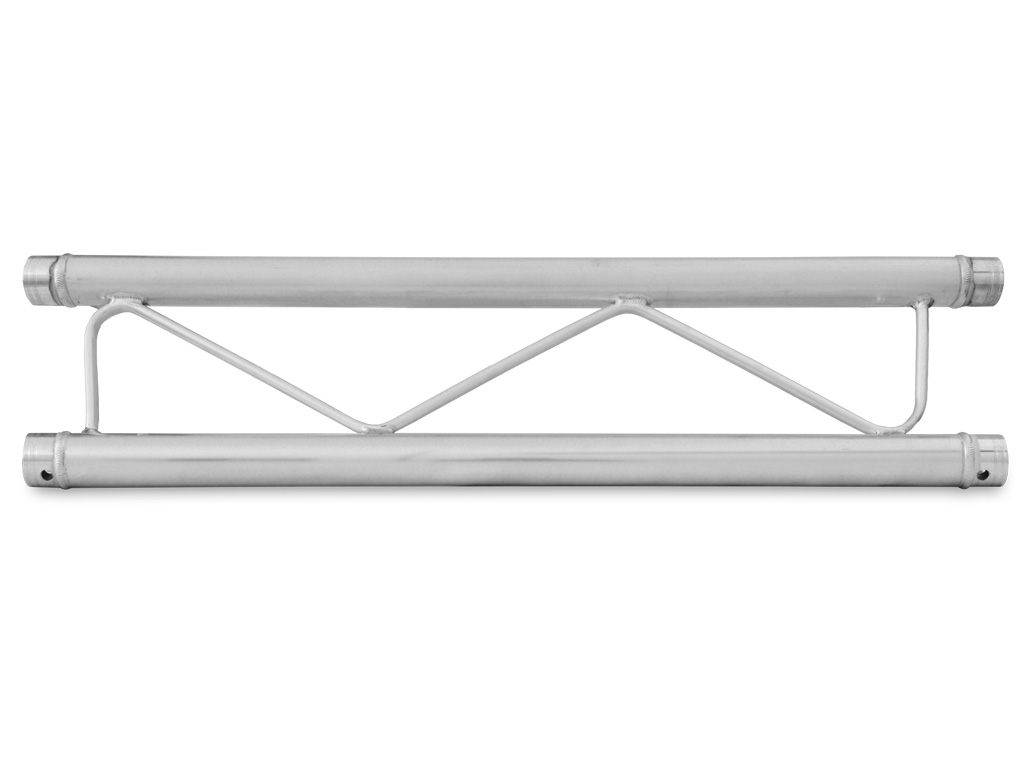

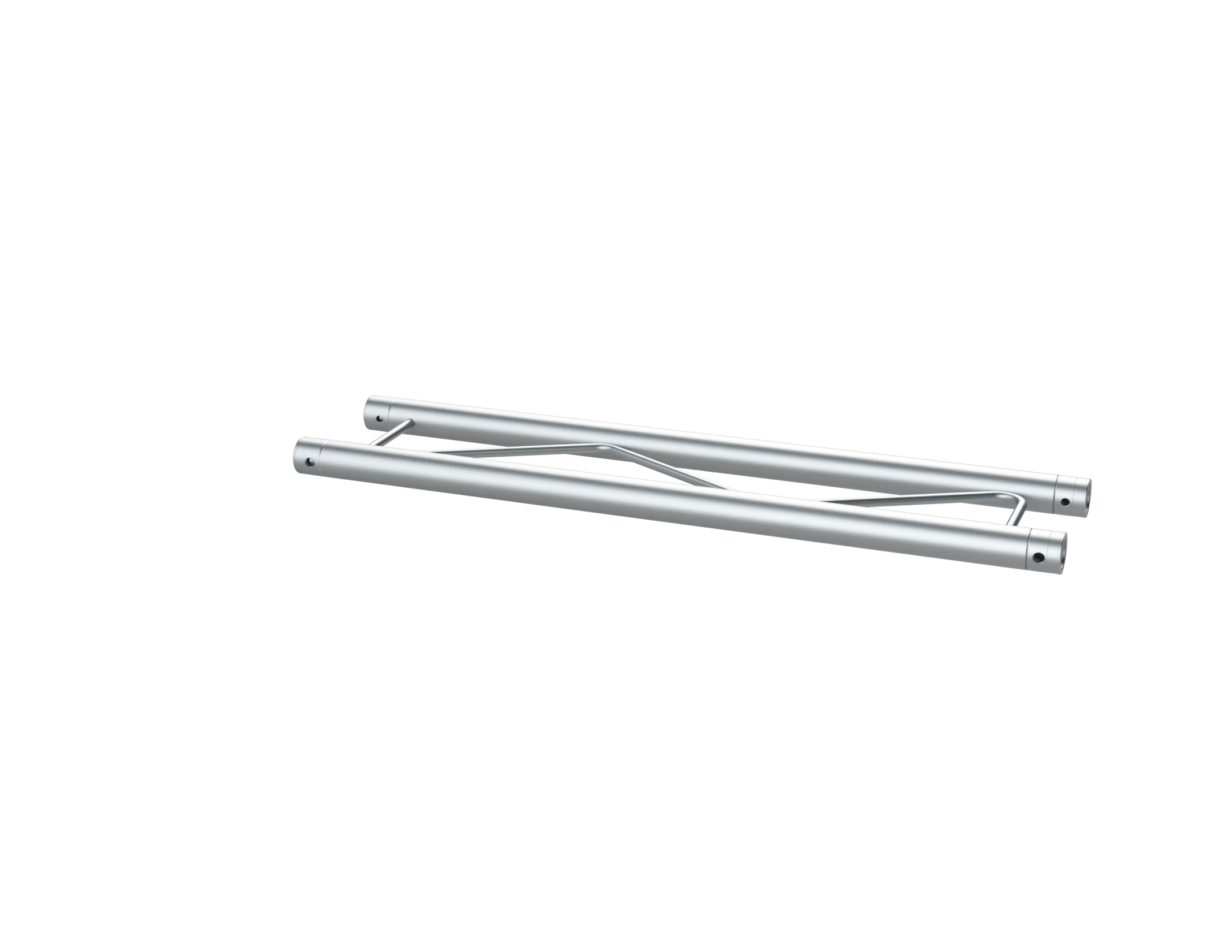

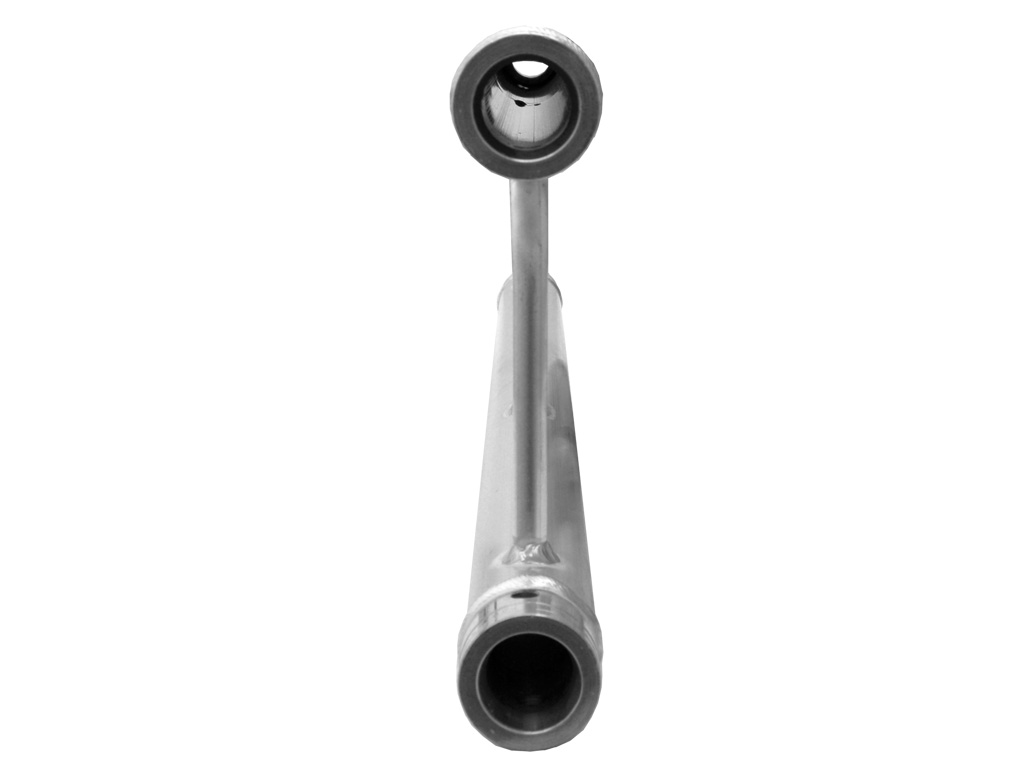

Section of 25 cm side aluminium parallel truss structure, manufactured with main tube of 50 mm in diameter and 2 mm in thickness, and auxiliary tube of 13 mm in diameter and 1.5 mm in thickness. Available in sections of 0.5, 1, 2 and 3 meters, and in silver or black. Includes 2 double cones, 2 pins, 2 threaded pins and 2 'R' safety clips. FK SERIES Compatible



Share on

Features

  • Standard dimensions: 1,64 / 3,28 / 6,56 / 9,84 ft
  • Other sizes available on request.
  • Available in aluminium and black.
  • Other colours available on request.
Main Tube Section50 x 2 mm/ 50 x 2 mm
Main Tube AlloyEN AW 6082T6
Braces Section13 x 1,5 mm/ 13 x 1,5 mm
Braces AlloyEN AW 6060F22
Weight2,4 kg/m/ 1,613 lb/ft
Surface Area Complete Truss6,03cm2/ 0,9347 in2
Coupling SystemCBC50F
1.64 feet - Weight1,4 kg/ 3,086 lb
3.28 feet - Weight2,4 kg/ 5,291 lb
6.56 feet - Weight4,8 kg/ 10,582 lb
9.84 feet - Weight6,8 kg/ 14,991 lb
1.64 feet - Volume0,00625 m3/ 0,2207 ft3
3.28 feet - Volume0,0125 m3/ 0,4414 ft3
6.56 feet - Volume0,025 m3/ 0,8829 ft3
9.84 feet - Volume0,0375 m3/ 1,3243 ft3
  Certificate		Download
  Technical Data Image		Download
  Technical Data Image		Download
  Technical Data Image		Download
  Technical Data Image		Download
  Application Tip		Download
