Mini Truss

FK11

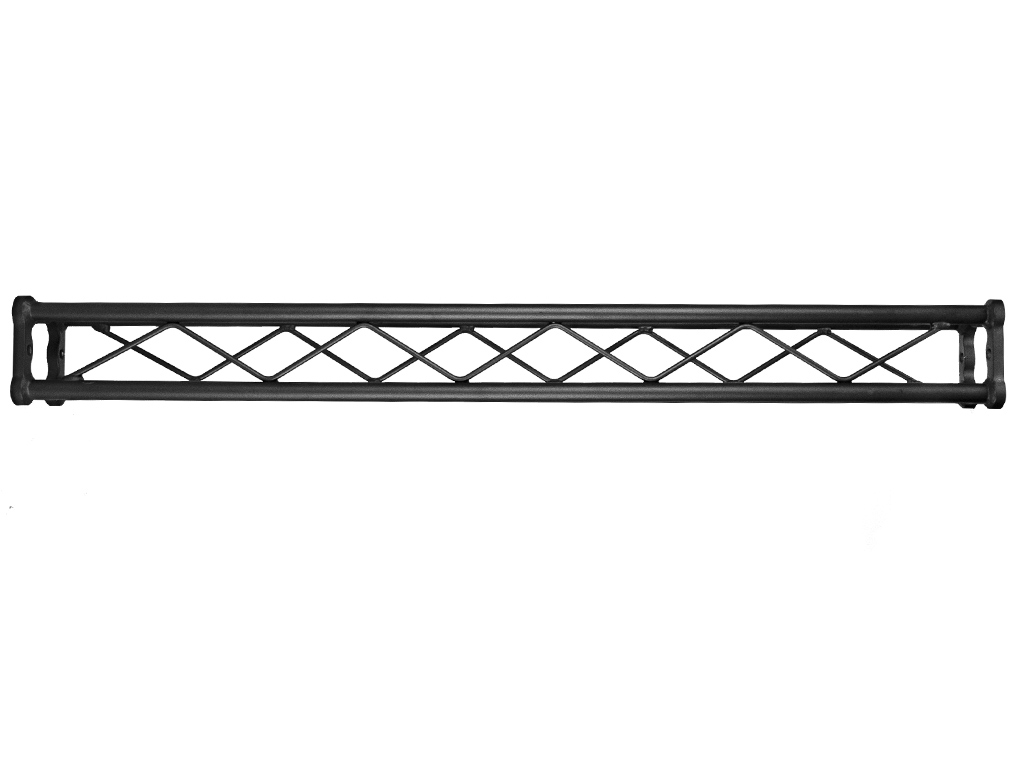

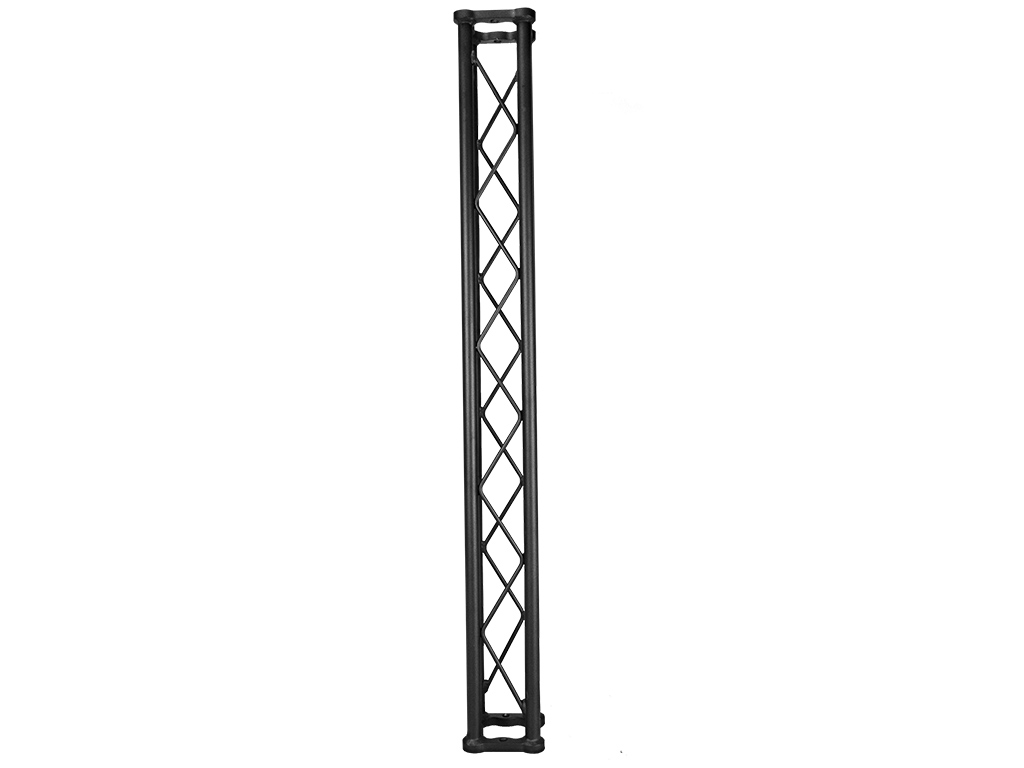

Quadrangular aluminum mini-truss

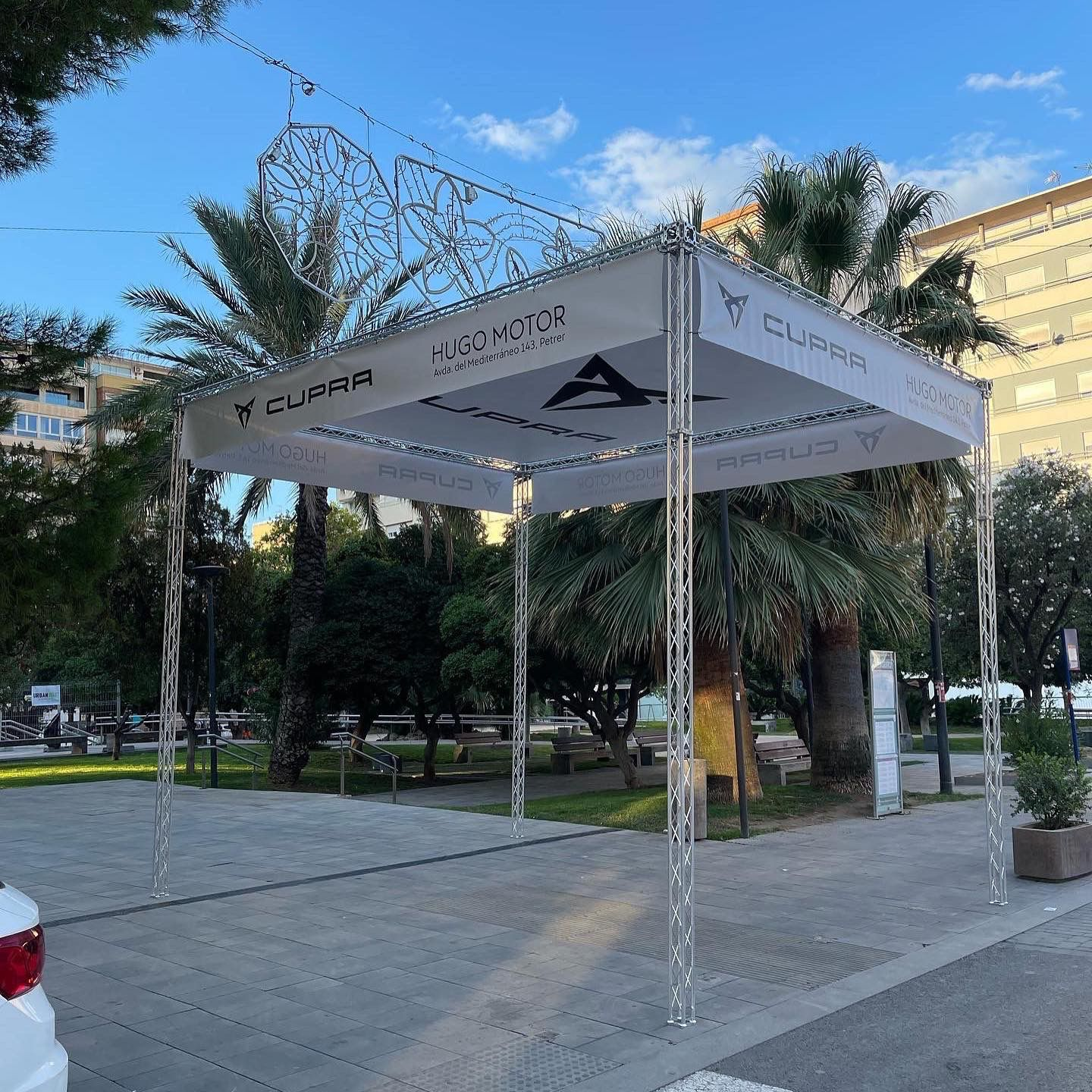

Structure designed for stands or exhibitors where it is not necessary to adapt large loads. Its dimensions of 4.40 x 4.40 inches allow to achieve a compact and very firm assembly. Made of aluminum, and available in sections of 1.64 / 3.28 / 6.56 / 9.84 ft. To complete the structure, the series incorporates a square cube for the corners and a hinge adapter, in addition to the fixing base for the vertical columns and the connecting connectors between sections.



Share on

MaterialAluminio
Dimensions112x112x500 mm; 112x112x1000 mm ; 112x112x2000 mm ; 112x112x3000 mm / 112x112x500 mm; 112x112x1000 mm ; 112x112x2000 mm ; 112x112x3000 mm
Main tube diameter21 mm
Auxiliary tube diameter6 mm
Aluminum thickness2 mm
Distributed load186 Kg (tramo de 6 m)
Deflection (distributed)32 mm (tramo 6 m)
Point load173 Kg (tramo 6 m)/
Deflection (spot)46 mm (tramo 6 m)
ColourPlateado o negro
Weight0.5 metros: 0.7 Kg; 1 metro: 1.6 Kg; 2 metros: 3.2 Kg; 3 metros: 4.8 Kg/ 0.5 meters: 0.7 Kg; 1 meter: 1.6 Kg; 2 meters: 3.2 Kg; 3 meters: 4.8 Kg
