Square
FG39Q

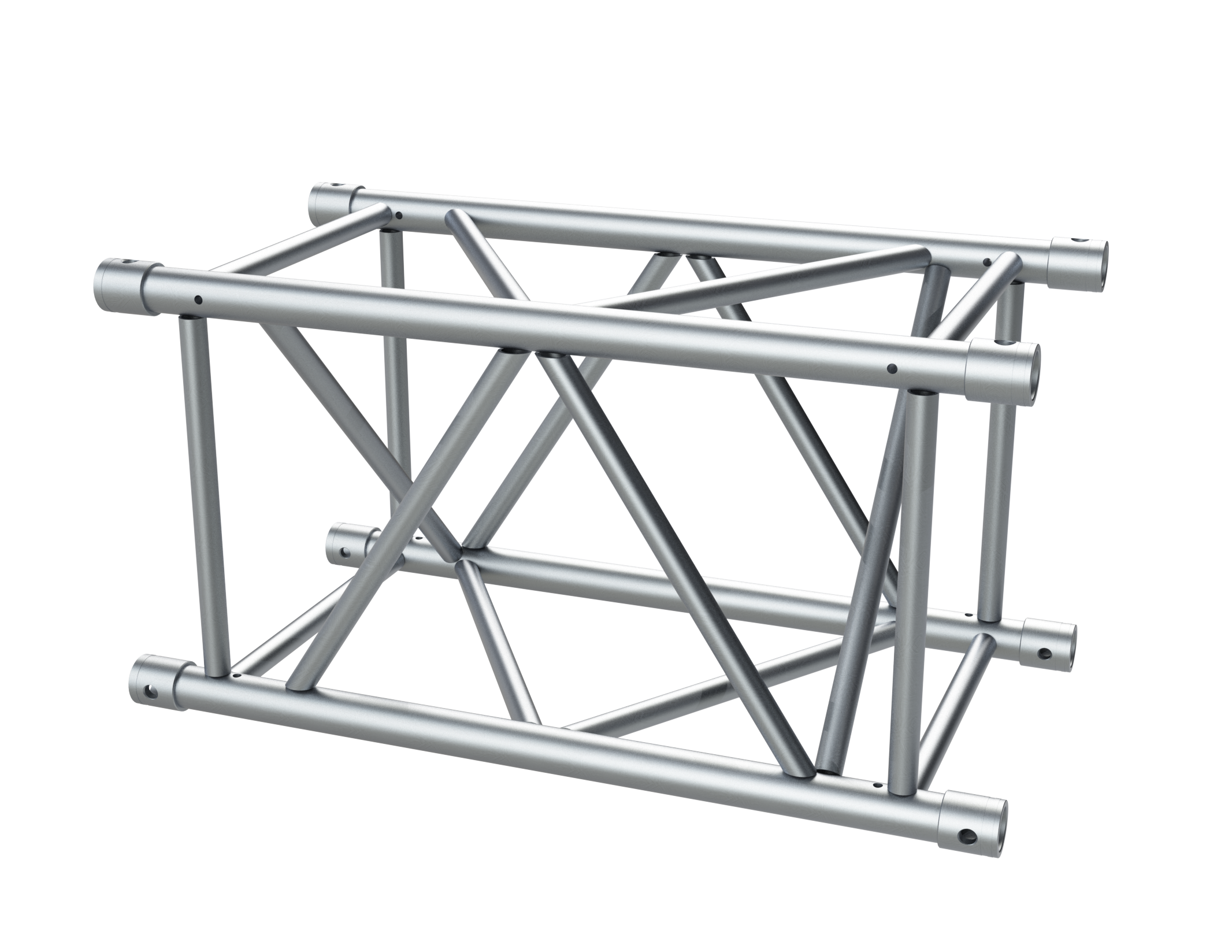

Square truss. G SERIES
Section of aluminium square truss structure measuring 39 cm on a side, manufactured with main tube of 50 mm in diameter and 2 mm in thickness, and auxiliary tube of 25 mm in diameter and 2 mm in thickness. Especially suitable for assemblies in which a good load capacity with minimal bending is required. It is available in sections of 0.5 m, 1 m, 2 m, and 3 m, and in silver or black. Includes 4 double cones, 8 pins and 8 'R' safety clips. G SERIES
Share on
Features
- Standard dimensions: 1,64 / 3,28 / 6,56 / 9,84 ft
- Other sizes available on request.
- Available in silver or black.
- Other colours available on request.
| Main Tube Section | 50 x 2 mm |
| Main Tube Alloy | EN AW 6082T6 |
| Braces Section | 25 x 2 mm |
| Braces Alloy | EN AW 6082T6 |
| Self-Weight | 7,4 kg/m/ 4,973 lb/ft |
| Surface Area Complete Truss | 12,06 cm2/ 1,8693 in2 |
| Coupling System | CBC50E |
| 1.64 feet - Weight | 5,8 kg / 12,787 lb |
| 3.28 feet - Weight | 9,9 kg / 21,826 lb |
| 6.56 feet - Weight | 13,1 kg / 28,881 lb |
| 9.84 feet - Weight | 18,6 kg / 41,006 lb |
| 1.64 feet - Volume | 0,0761 m3/ 2,6874 ft3 |
| 3.28 feet - Volume | 0,1521 m3/ 5,3714 ft3 |
| 6.56 feet - Volume | 0,3042 m3/ 10,7427 ft3 |
| 9.84 feet - Volume | 0,4563 m3/ 16,1141 ft3 |
Certificate | Certificado CE - Truss EC39E |  | Download |
