Square

FG29Q H

Square truss. E PRO SERIES

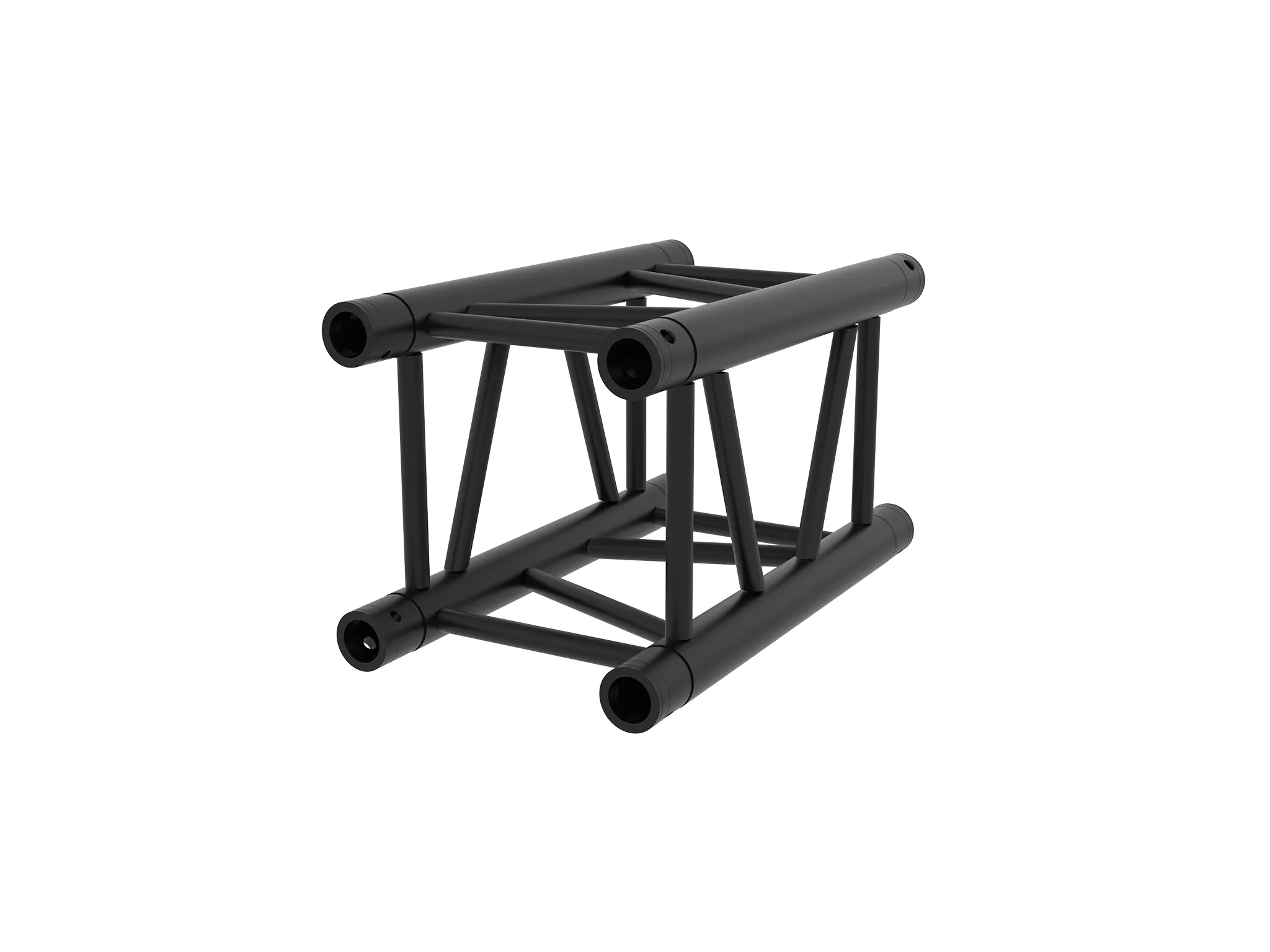

Section of aluminium square truss structure measuring 29 cm on a side, manufactured with main tube of 50 mm in diameter and 4 mm in thickness, and auxiliary tube of 20 mm in diameter and 2 mm in thickness. It is available in sections of 0.5 m, 1 m, 2 m, and 3 m, and in silver or black. Includes 4 double cones, 8 pins and 8 'R' safety clips. E PRO SERIES compatible.



Share on

Features

  • Standard dimensions: 1,64 / 3,28 / 6,56 / 9,84 ft
  • Other sizes available on request.

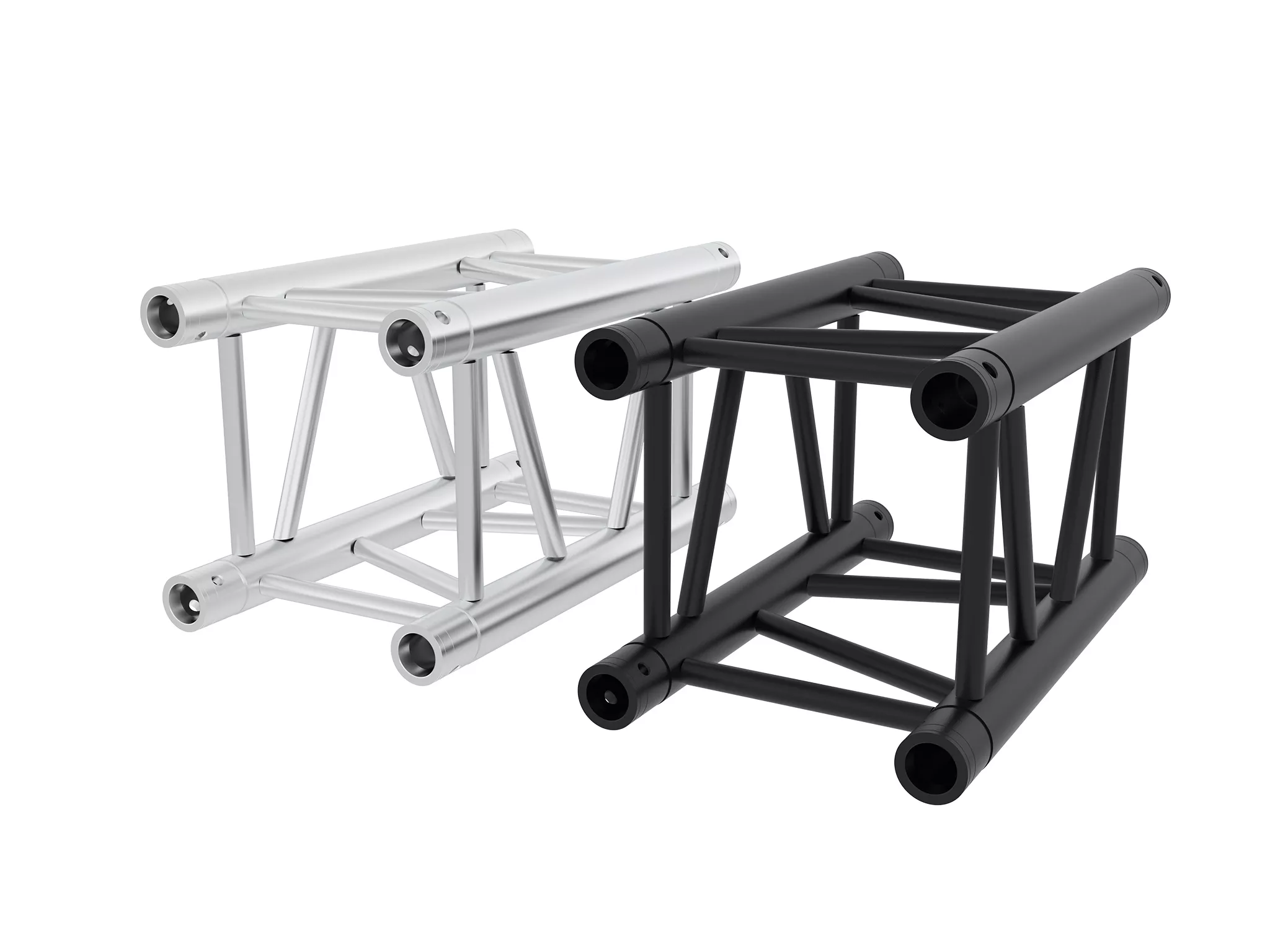

  • Available in silver or black.
  • Other colours available on request.
Main Tube Section50 x 4 mm
Main Tube AlloyEN AW 6082T6
Braces Section20 x 2 mm
Braces AlloyEN AW 6082T6
Weight9,36 kg/m/ 20,63 lb/ft
Surface Area Complete Truss12,06 cm2/ 1,8693 in2
Coupling SystemCBC50E
1.64 feet - Weight6,7 kg / 14,77 lb
3.28 feet - Weight11 kg / 24,25 lb
6.56 feet - Weight18 kg / 39,68 lb
9.84 feet - Weight25,15 kg / 55,44 lb
1.64 feet - Volume0,0421 m3/ 1,4867 ft3
3.28 feet - Volume0,0841 m3/ 2,97 ft3
6.56 feet - Volume0,1682 m3/ 5,9399 ft3
9.84 feet - Volume0,2523 m3/ 8,9099 ft3
  Certificate		Download

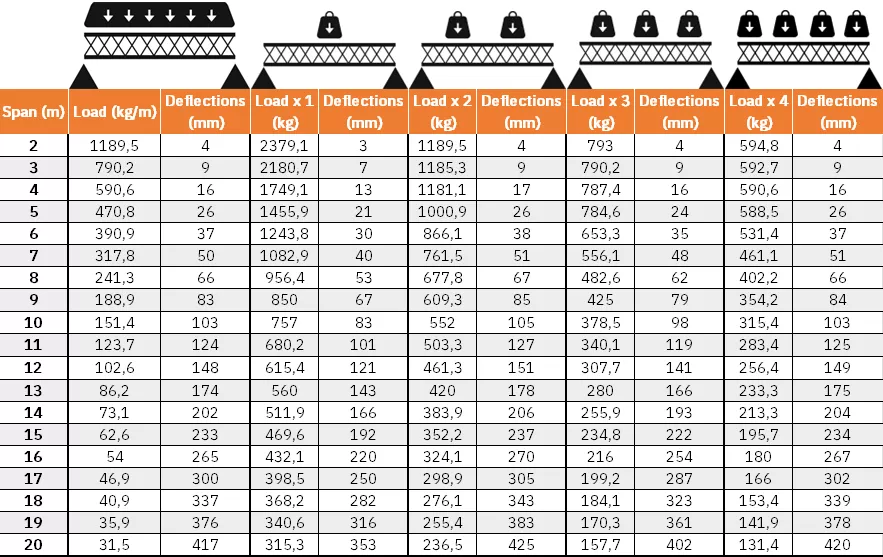

  Technical Data Image		Download
