Square

FG29Q BOX

Multi-connection cube. G SERIES

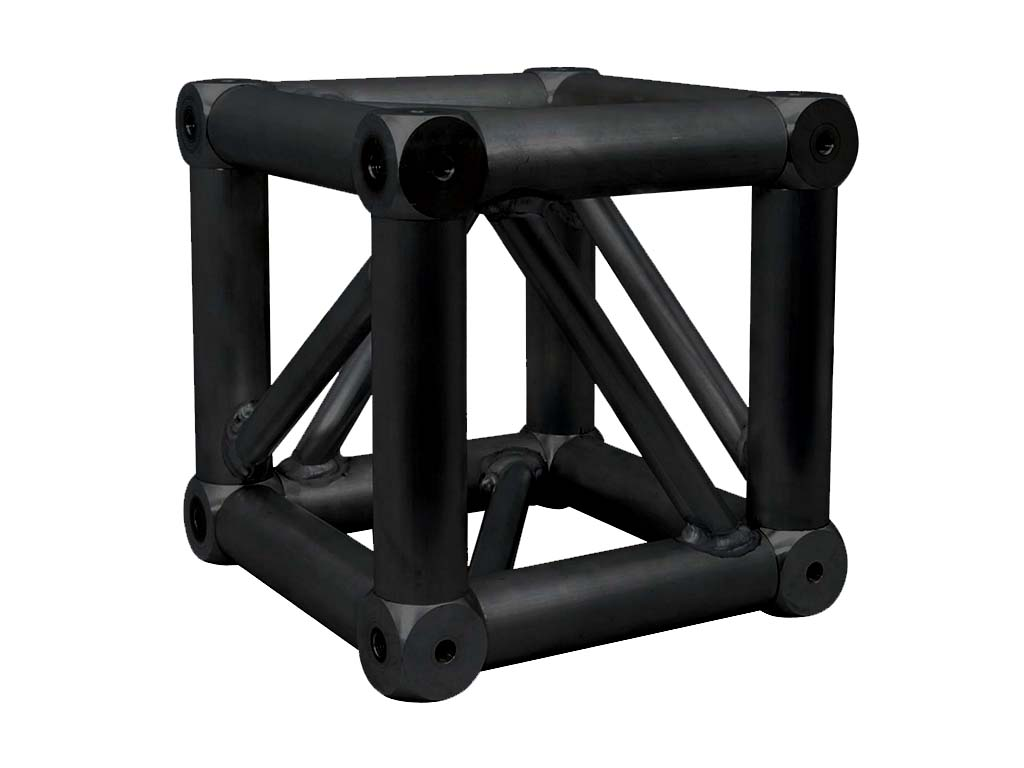

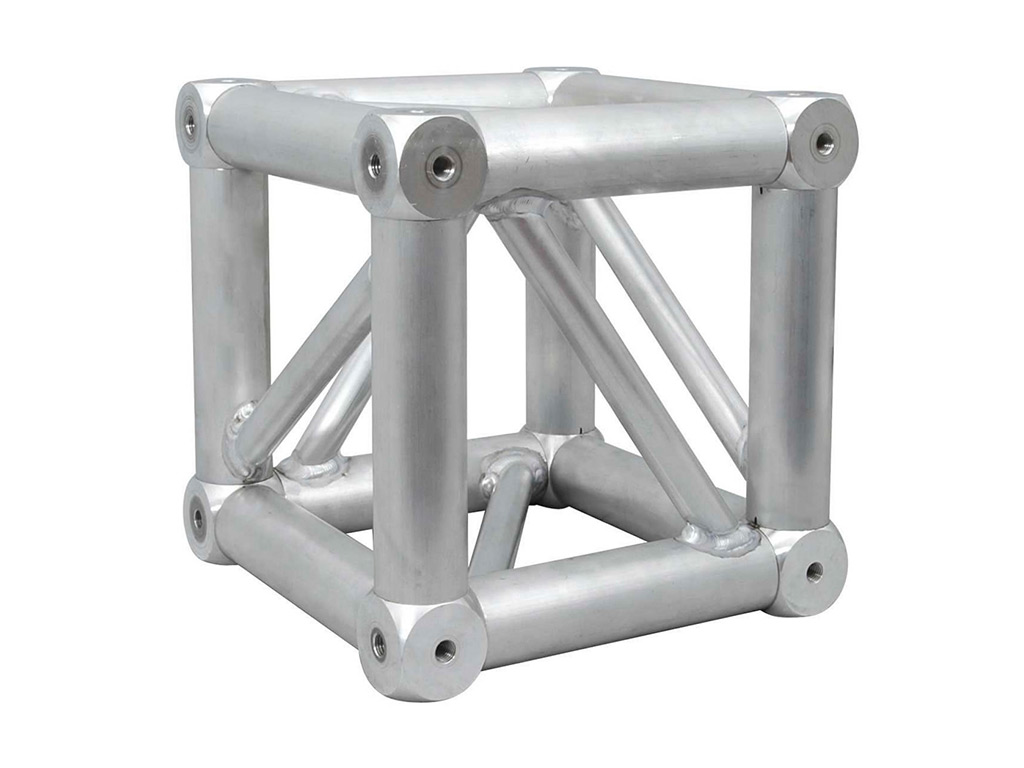

Multiconnection cube with eight dice for aluminum truss of 29 cm of side. Manufactured with Multi-connection tube. With connections in the four corners. Silver or black colour. G SERIES compatible.



Share on

Features

  • Available in silver or black colour.
  • Other colours available on request.
  • Compatible with EC 29 E truss.
  • Connections included.
Main Tube SectionMulti-connection tube
Main Tube AlloyEN AW 6082T6
Surface Area Complete Truss12,06 cm2/ 1,8693 in2
Coupling SystemCBC50E
Height290 mm/ 11,42 in
Width290 mm/ 11,42 in
Depth290 mm/ 11,42 in
Weight10,5 kg/ 23,15 lb
  Certificate		Download
