MP 15 AM

15'' self powered loudspeaker. 500 W.

MP 15 AM is a 500 W amplified loudspeaker made of wood. It consists of a 15" loudspeaker and a 1.75" compression driver. It is equipped with a 35 mm stand insert and 2 side carrying handles. It has audio input with XLR3 connector with input selector for microphone or line, volume control and tone control (bass and treble).



Share on

Features

  • Made of MDF wood.
  • Lateral handles for transport.
  • 35 mm bottom insert for support.
Type2 ways. Self powered
Power300 W RMS
LF TransducerWoofer 15". Voicecoil 3"
HF TransducerCompression driver 1.75"
Sensitivity (1W @ 1m)96 dB
Frequency Range55 Hz - 20 Hz
SPL Max124 dB
Enclosure materialMDF wood
FinishedPainting
ConnectionsPower: 1 x IEC, Audio In: 1 x XLR3H, Audio Out: 1 x XLR3H

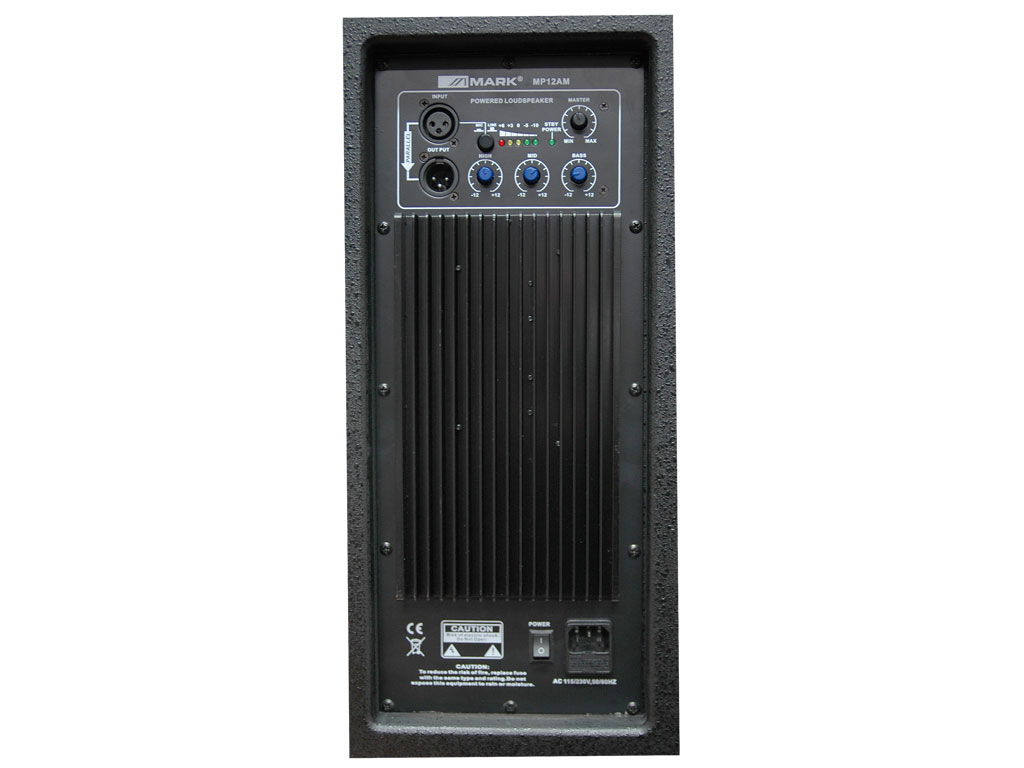

ControlsPower switch, Mic/line selector, Volume, Tone control (High, Mid, Low)
Inserts / RiggingSide handles. Lower 35 mm insertion for stand
ColourBlack
Length(m)Width(m)Height(m)Weight(kg)
Product0.520.510.8235.00
Box0.540.520.8335.38
  Manual		Download

So far, there are no questions related to this product.

Register to be able to ask a question about this product.

I accept terms and conditions regarding the treatment of my data.Make the question

Related

  • SPB 3 E
    Bracket for loudspeaker. Vertical position from 90° to 135°. Maximum load 45 Kg. Supplied in pairs. Price per unit.

Alternatives

  • MP 12 AM
    Self powered loudspeaker 400 W. MDF wood. Woofer 12'' + Driver 1.3''.

Spareparts

  • Speaker MP 15 / MP 15 AM
  • Membrane MP 15 / 215
