MM 1699 USB BT

16 channels analog audio mixer.

MM 1699 USB BT is an audio mixer with 16 input channels. The MIC/LINE input channels incorporate phantom power for condenser microphones.

It features USB player/recorder and Bluetooth, 99 integrated digital effects, 3 tone controls per channel, 7-band stereo graphic equalizer and send/return connections and headphones output.



Share on

Input channels
 16 channels
MIC input

Gain range
 + 10 to + 60 dB
Max input level
 + 12 dBu @ 10 dB gain
S/N ratio
 110 dB/112 dB A-weighted (0 dBu In @ +22 dB gain)
LINE input

Gain range
 - 10 to + 40 dB
Max input level
 30 dBu
EQUALIZATION

Treble
 12 kHz ± 15 dB
Middle
 3 kHz ± 15 dB
Bass
 80 Hz ± 15 dB
Max output level
 + 28 dBu
Main supply
 AC 100 -240 V 50/60 Hz
Dimensions/
Weight
 636 x 425 x 117 mm
6.65 kg
  • Audio mixers with 16  MIC/LINE channels.
  • USB player /recorder.
  • Bluetooth functionality.

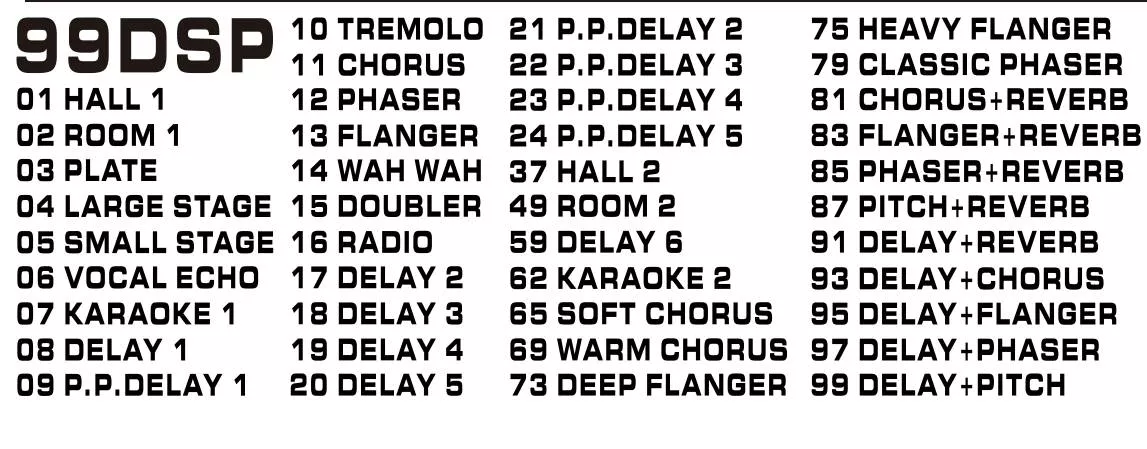

  • Built-in DSP with 99 effects.
  • 3 tone control on each input channel.
  • 2x7 bands equalizer.
  • AUX send/return connectivity.
  Datasheet		Download
  Manual		Download
