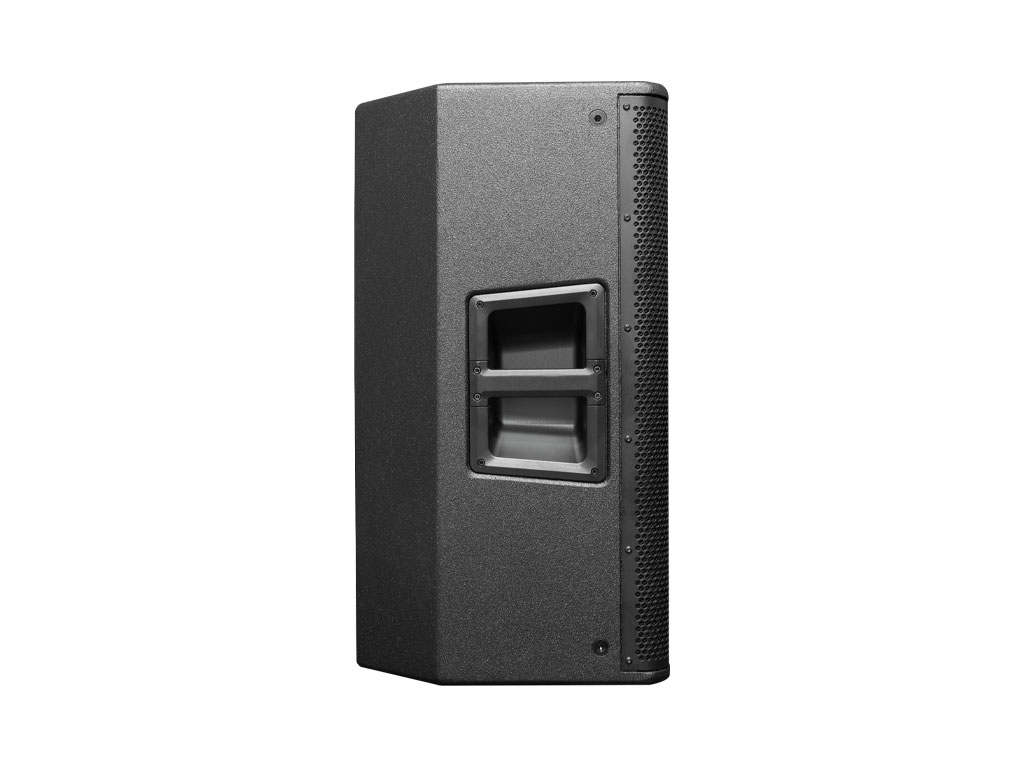

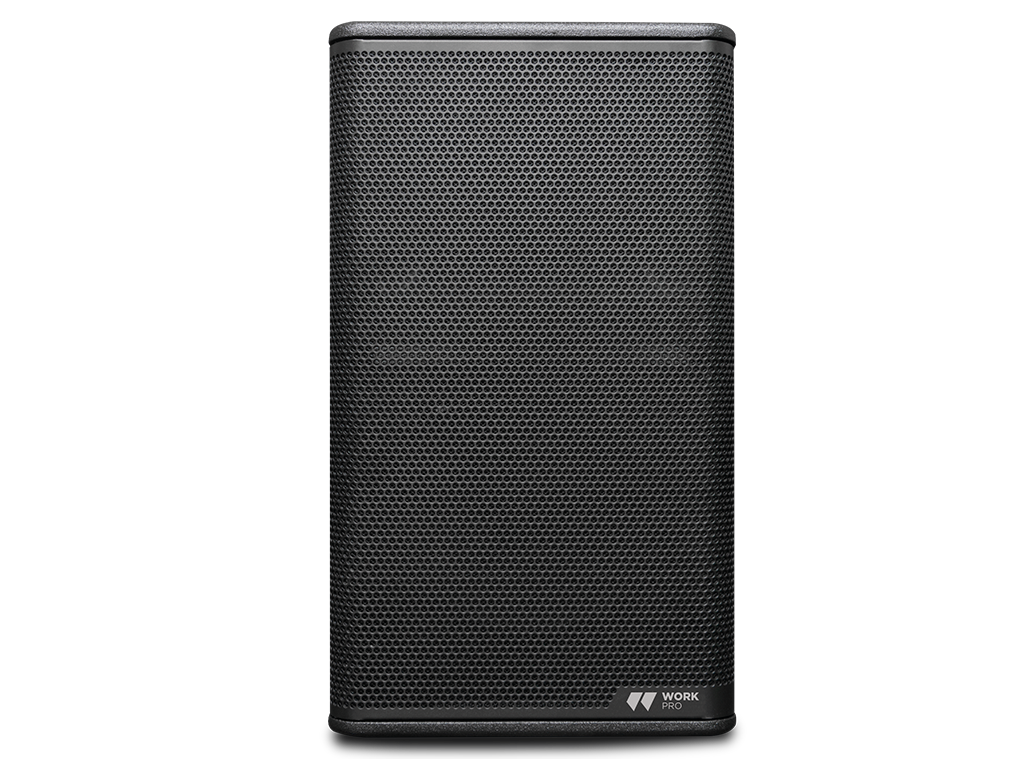

ENTAR 15A

15'' self-powered loudspeaker

ENTAR 15A is a two-way self-powered loudspeaker that incorporates a 1000W amplifier, made of wood. It consists of a 15" woofer with a 2.5" voice coil and a 1.35"compression driver, and incorporates a signal processing DSP. Thanks to this DSP, it is possible to select 4 equalization presets, 3 HPF filters with selectable frequency, tone control (treble and bass) and differentiated preset for use as a floor monitor or placed on a support. It has an insertion vessel for a 35 mm support that allows 0º/10º angulations and rigging fixation points. Incorporates 2 Mic/Line inputs with level control and mix function.



Share on

Features

  • 1000W amplifier.
  • 15-inch Woofer + 1.35-inch Driver.
  • Signal processing DSP.
  • Made of plywood.
Type2-Way. Class D amplifier
PowerAmplifier 1000 W
LF Transducer 15" Woofer; 2.5" Voice Coil
HF Transducer1.35" compression driver
DSP4 Presets, 3 HPF Filters, Bass / Treble Curve Adjustment
SPL Max129 dB
Coverage Angle (H x V)86º x 54.5º
Frequency Range45 Hz - 20 KHz
Connections1 x Combi XLR3/Jack TRS 1/4" female, 1 x XLR3 female, 1 x XLR3 male
Enclosure materialPlywood and metal grille
Inserts / RiggingInsertion: 35 mm - 0°/10° angulation; Rigging: sections for rigging rail and fixing points
Power supplyAC 100 - 240 V / 50 - 60 Hz
ColourBlack
Dimensions730 x 440 x 419 mm
Weight24.8 Kg
Length(m)Width(m)Height(m)Weight(kg)
Product0.420.440.7324.80
Box0.560.550.8530.40
  Manual		Download
  Datasheet		Download
