AML 100 T USB

Amplifier/mixer.

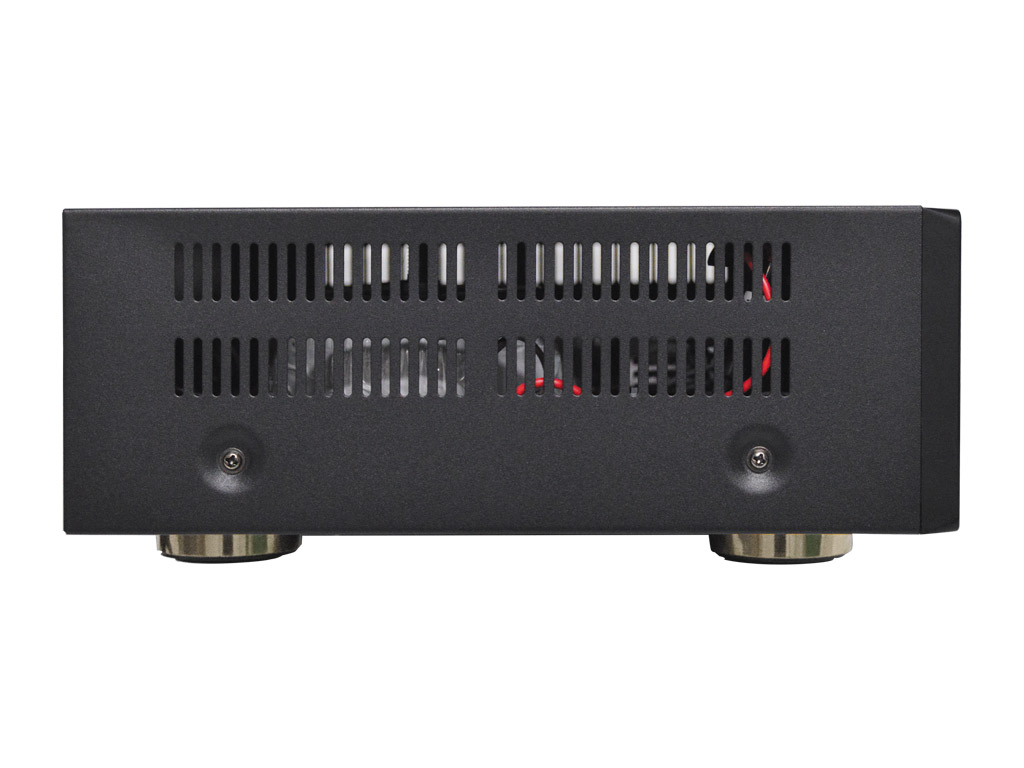

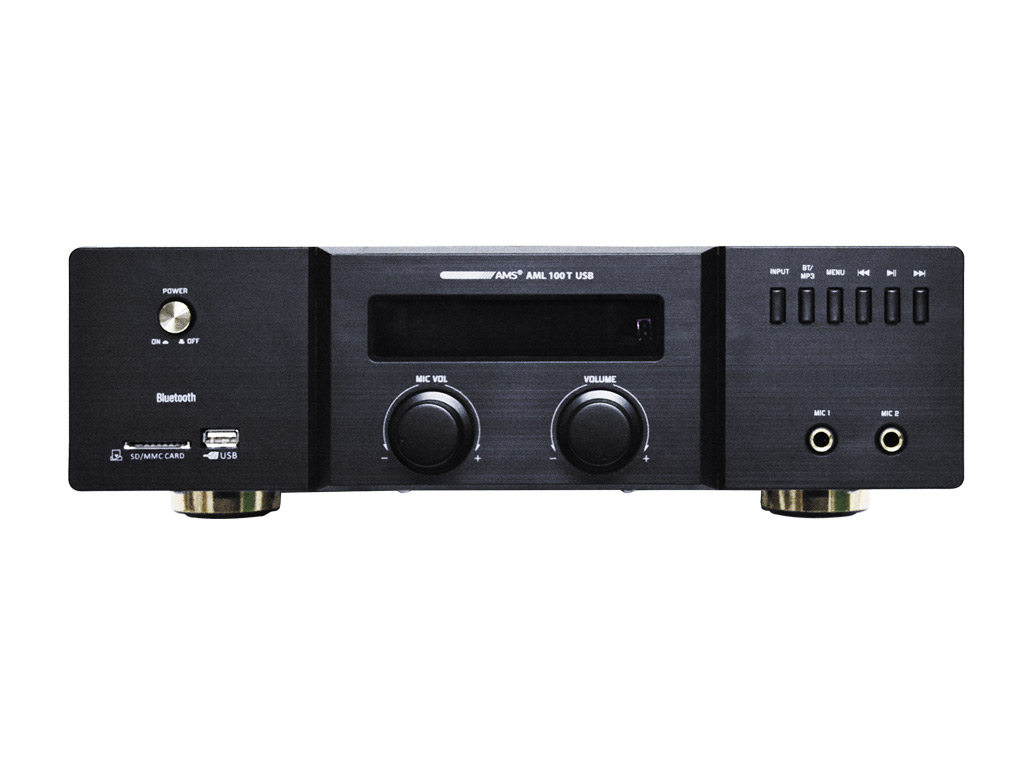

AML 100 T USB is a stereo installation mixer/amplifier. It includes 4 input sources (2 LINE + 2 MIC) selectable from a frontal switch.  The unit features a USB/SD interface for external audio files as well as Bluetooth connectivity. Therefore, it is possible to send audio files from a smartphone or similar device. It integrates a big format display that shows the information about the played track, the operating mode and vumeter.

The variety of audio sources types make it very suitable for a big number of installations: offices (background music and messages), schools, shops or conference rooms.



Share on

Features

  • 2 x 60W @ 4 Ohm.
  • MP3 player. USB/SD/Bluetooth.
  • 2 microphone inputs.
  • Remote control.
Power2 x 60W @ 4 Ohm; 2 x 30 @ 8 Ohm
Frequency Response20 Hz - 20 KHz
S/N Rate80 dBA
THD0.1%

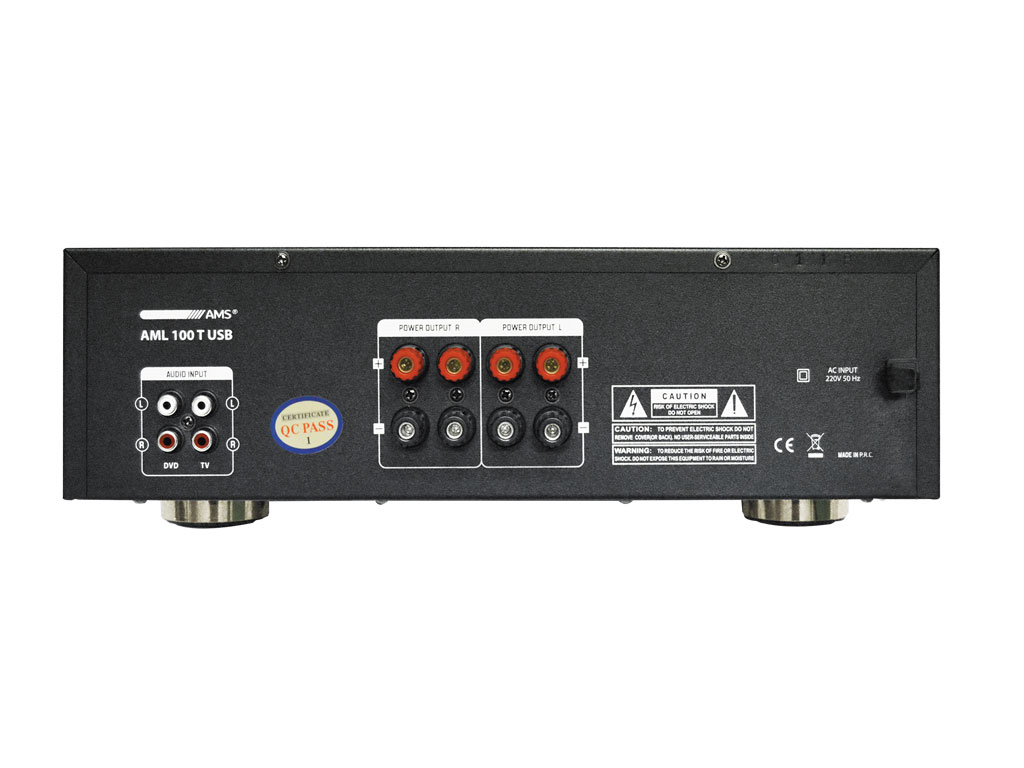

ConnectionsRCA: DVD/TV inputs; ¼" jack: Microphone (x2); Binding post: Amplifier outputs
PlayerMP3 via USB, SD or Bluetooth port
Power supply230V AC, 50/60 Hz
Dimensions360 x 112 x 285 mm
Weight5 Kg
Length(m)Width(m)Height(m)Weight(kg)
Product0.290.360.115.00
Box0.110.360.295.00
Master Carton0.390.440.5519.00
  • Installation mixer/amplifier.
  • Power output: 2x 60W @4 ohm.
  • Inputs: 2 LINE + 2 MIC.
  • Bluetooth connectivity.
  • USB/SD/BT interface.
  • 2 tone control and balance.
  • Remote control.


  Manual		Download
